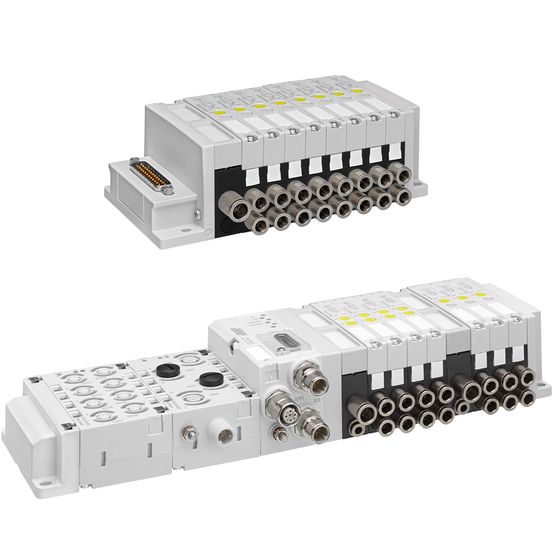

AVENTICS AV03 Series Valve System, Spool Valve, Positive Overlapping, 24 VDC, Manual Override w/Detent, 5/2
Manufacturer: Asco LP
Mfg Product Code: R422102426
Weight: 5.0 lb(s)
Valve System, Spool Valve, Pos Overlap, 24 VDC, Man. Override w/Detent, 5/2
The AVENTICS Series AV03/AV05 provide a reliable basis for both compact handling systems and complex automation solutions. Within machine safety the Series AV03/AV05 offers intelligent solutions that significantly reduce your effort in creating a safe design. With the integration of the fieldbus and I/O-modules of the Series AES, also all requirements for distributed control are available. The Series AV03/AV05 is easy to configure, easy to use and easy to extend as well as IIoT futureproof thanks to the integration of OPC UA and the Digital Twin.
Features
- Activation: Electrically
- Nominal flow Qn: 300 l/min
- Switching principle: 5/2
- Working pressure min.: -0.9 bar
- Working pressure max: 10 bar
- DC operating voltage: 24 V
- Voltage tolerance DC: -10% / +10%
- Manual override: with detent
- Actuating control: Double Solenoid
- Sealing principle: Soft Seal
- Pilot: External
- Valve type: Spool valve, positive overlapping
- Connection type: Plate connection
- Blocking principle: Base plate principle, multiple
- Control pressure min.: 3 bar
- Control pressure max.: 8 bar
- Min. ambient temperature: -10 °C
- Max. ambient temperature: 60 °C
- Min. medium temperature: -10 °C
- Max. medium temperature: 60 °C
- Medium: Compressed air
- Max. particle size: 40 µm
- Oil content of compressed air min.: 0 mg/m³
- Oil content of compressed air max.: 5 mg/m³
- Pilot control exhaust: with directional pilot air exhaust:
AVENTICS AV03 Series Valve System, Spool Valve, Positive Overlapping, 24 VDC, Manual Override w/Detent, 5/2
Valve System, Spool Valve, Pos Overlap, 24 VDC, Man. Override w/Detent, 5/2
Media:Compressed Air
Valve Type:Spool Valve, Positive Overlapping
Max Operating Pressure:10 bar
Input Voltage:24 VDC
Function:5/2
Activation Function:Electric
Flow:300 LPM
Pilot:External
Max Particle Size:40 µm
Blocking Principle:Base Plate Principle, Multiple
Voltage Tolerance:-10% / +10% VDC
Specifications
Media | Compressed Air |
Valve Type | Spool Valve, Positive Overlapping |
Max Operating Pressure | 10 bar |
Input Voltage | 24 VDC |
Function | 5/2 |
Activation Function | Electric |
Flow | 300 LPM |
Pilot | External |
Max Particle Size | 40 µm |
Blocking Principle | Base Plate Principle, Multiple |
Voltage Tolerance | -10% / +10% VDC |
