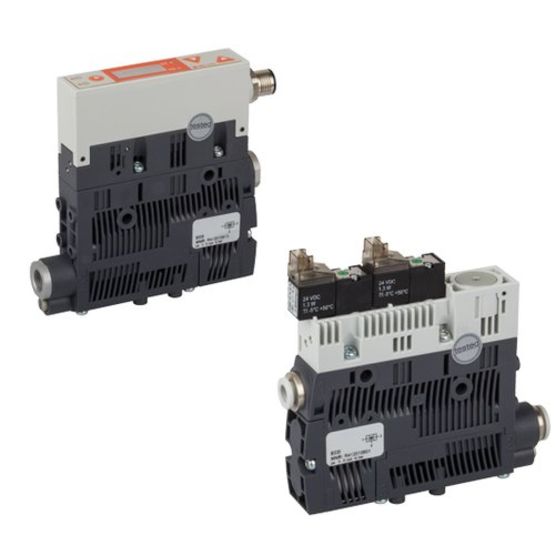

AVENTICS ECD-BV Series Compact Ejector, 24 VDC, 1 mm Nozzle, Normally Open
Manufacturer: Asco LP
Mfg Product Code: R412010602
Weight: 2.0 lb(s)
Compact Ejector, 24 VDC, 1 mm Nozzle, Normally Open
The AVENTICS Series ECD is an all-inclusive solution that combines vacuum generators, pilot valves, filters, silencers and pressure switches. Simplify installation and optimize your energy footprint by opting for the air economizer function, and increase your degree of status monitoring with the condition monitoring function.
Features
- Activation: Electrically
- with silencer: with silencer
- Nozzle Ø: 1 mm
- Accessories: with non-return valve
- Working pressure min.: 2 bar
- Working pressure max: 6 bar
- Working pressure p.opt.: 4 bar
- Min. ambient temperature: 0 °C
- Max. ambient temperature: 50 °C
- Min. medium temperature: 0 °C
- Max. medium temperature: 50 °C
- Medium: Compressed air
- Oil content of compressed air min.: 0 mg/m³
- Oil content of compressed air max.: 1 mg/m³
- Max. particle size: 5 µm
- Max. suction capacity: 35.4 l/min
- Air consumption at p.opt.: 46.2 l/min
- Max. vacuum level at p.opt: 81.5 %
- Sound pressure level intake effect: 63 dB
- Sound pressure level intake effect: 76 dB
- release valve: release valve
- Protection class according to EN 60529:2000, without electrical connector: IP40
- Duty cycle according to DIN VDE 0580 standard: 100 %
- DC operating voltage: 24 V
- Voltage tolerance DC: - 5% / +10%:
AVENTICS ECD-BV Series Compact Ejector, 24 VDC, 1 mm Nozzle, Normally Open
Compact Ejector, 24 VDC, 1 mm Nozzle, Normally Open
Media:Compressed Air
Valve Type:Release Valve
Max Operating Pressure:6 bar
Input Voltage:24 VDC
Ingress Protection:IP40
Function:Normally Open
Activation Function:Electric
Standards:DIN VDE 0580, EN 60529:2000
Return:Non-Return
Max Particle Size:5 µm
Duty Cycle:100%
Silencer:Silencer
Sound Pressure Level Intake Effect:63 dB / 76 dB
Nozzle Diam:1 mm
Max Suction Capacity:35.4 LPM
Air Consumption (P Opt):46.2 l/min
Max Vacuum Level (P Opt):81.5%
Voltage Tolerance:- 5% / +10%
Specifications
Media | Compressed Air |
Valve Type | Release Valve |
Max Operating Pressure | 6 bar |
Input Voltage | 24 VDC |
Ingress Protection | IP40 |
Function | Normally Open |
Activation Function | Electric |
Standards | DIN VDE 0580, EN 60529:2000 |
Return | Non-Return |
Max Particle Size | 5 µm |
Duty Cycle | 100% |
Silencer | Silencer |
Sound Pressure Level Intake Effect | 63 dB / 76 dB |
Nozzle Diam | 1 mm |
Max Suction Capacity | 35.4 LPM |
Air Consumption (P Opt) | 46.2 l/min |
Max Vacuum Level (P Opt) | 81.5% |
Voltage Tolerance | - 5% / +10% |
