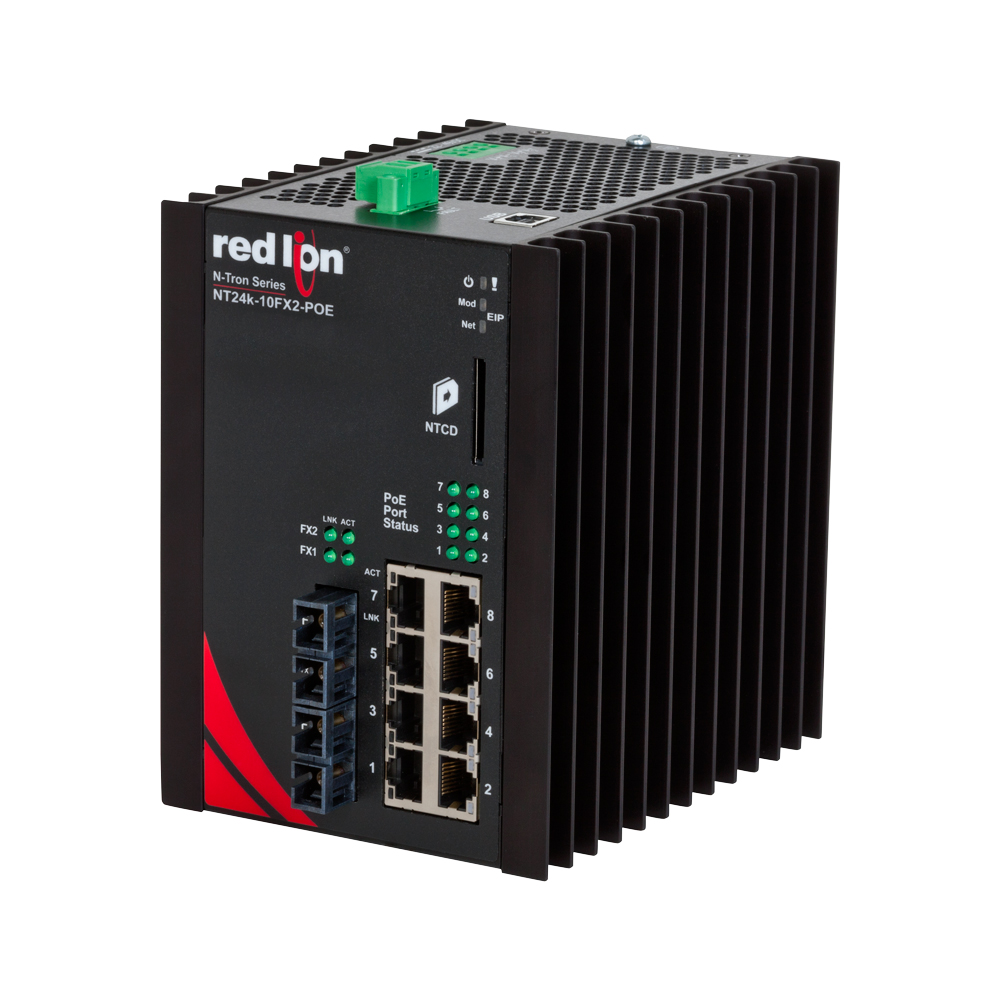

NT24k PoE Series, 10-Port, N-Tron NT24k®-10FXE2-POE Managed PoE+ Gigabit Ethernet Switch, SC 15km
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: NT24k-10FXE2-SC-15-POE
Weight: 1.0 lb(s)
N-Tron NT24k®-10FXE2-POE Managed PoE+ Gigabit Ethernet Switch, SC 15km
Red Lion's N-Tron® series NT24k® switches are Gigabit managed industrial Ethernet switches with IEEE 802.3af/at PoE+ on each copper port. NT24k switches features plug-and-play installation with IGMP auto-configuration, port and PoE auto-detection and simple ring configuration, making the NT24k one of the easiest to deploy managed PoE switches in the industry. Housed in a rugged hardened enclosure, the NT24k features extended shock and vibration specifications, wide operating temperature ratings and best-in-class ring technology.
Features
- 10 Port Gigabit Managed Industrial Ethernet Switch
- Eight 10/100/1000BaseTX RJ-45 Ports
- Two 100BaseFX Singlemode 15km Fiber Ports with SC Connectors
- All copper ports support IEEE 802.3af/at PoE+
- -40°C to 80°C Operating Temperature
- ESD and Surge Protection on all Built-in Ports
- Auto Sensing 10/100/1000BaseTX, Duplex, and MDIX
- Store-and-forward Technology
- Redundant Power Input (22 - 49 VDC)
- Jumbo Frame Support
- 16k MAC Addresses
- Detailed Ring Map and Fault Location Charting
- USB Configuration Port
- Configurable Alarm Contact
- Compact Industrial DIN-Rail Enclosure
- Fully Managed Features:
- SNMP v1, v2, v3 and Web Browser Management
- SSH/SSL/HTTPS
- 802.1x with RADIUS Remote Server Authentication
- DHCP Server, Option 82 relay, Option 61, IP fallback
- Port Security – MAC address based
- Multi-Member N-Ring™ Technology with ~30ms Healing
- N-Link™ Redundant Ring Technology
- N-View™ Monitoring Technology
- EtherNet/IP™ CIP™ Messaging
- 802.1AB-2005 LLDP (Link Layer Discovery Protocol)
- Web configuration
- IGMP Auto Configuration
- 802.1Q tag VLAN and Port VLAN
- 802.1p QoS and Port QoS
- SNTP
- Event Log/Syslog
- Port Trunking
- Port Mirroring
- 802.1d, 802.1w, 802.1D RSTP
- Local Port IP Addressing
NT24k PoE Series, 10-Port, N-Tron NT24k®-10FXE2-POE Managed PoE+ Gigabit Ethernet Switch, SC 15km
N-Tron NT24k®-10FXE2-POE Managed PoE+ Gigabit Ethernet Switch, SC 15km
Brand:Red Lion
Manufacturer Product Family:NT24k PoE Series Switches
Min Operating Temperature:-40 °C
Max Operating Temperature:80 °C
Mounting Options:DIN Rail
Case Material:Metal
Ethernet Connector Type:SC
No. Ports:10
100 Fiber Ports:2
10/100/1000 Ports:8/8 PoE+
Switch Type:PoE Switch
Standards:IEEE802.3at
Specifications
| Brand | Red Lion |
| Manufacturer Product Family | NT24k PoE Series Switches |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 80 °C |
| Mounting Options | DIN Rail |
| Case Material | Metal |
| Ethernet Connector Type | SC |
| No. Ports | 10 |
| 100 Fiber Ports | 2 |
| 10/100/1000 Ports | 8/8 PoE+ |
| Switch Type | PoE Switch |
| Standards | IEEE802.3at |
