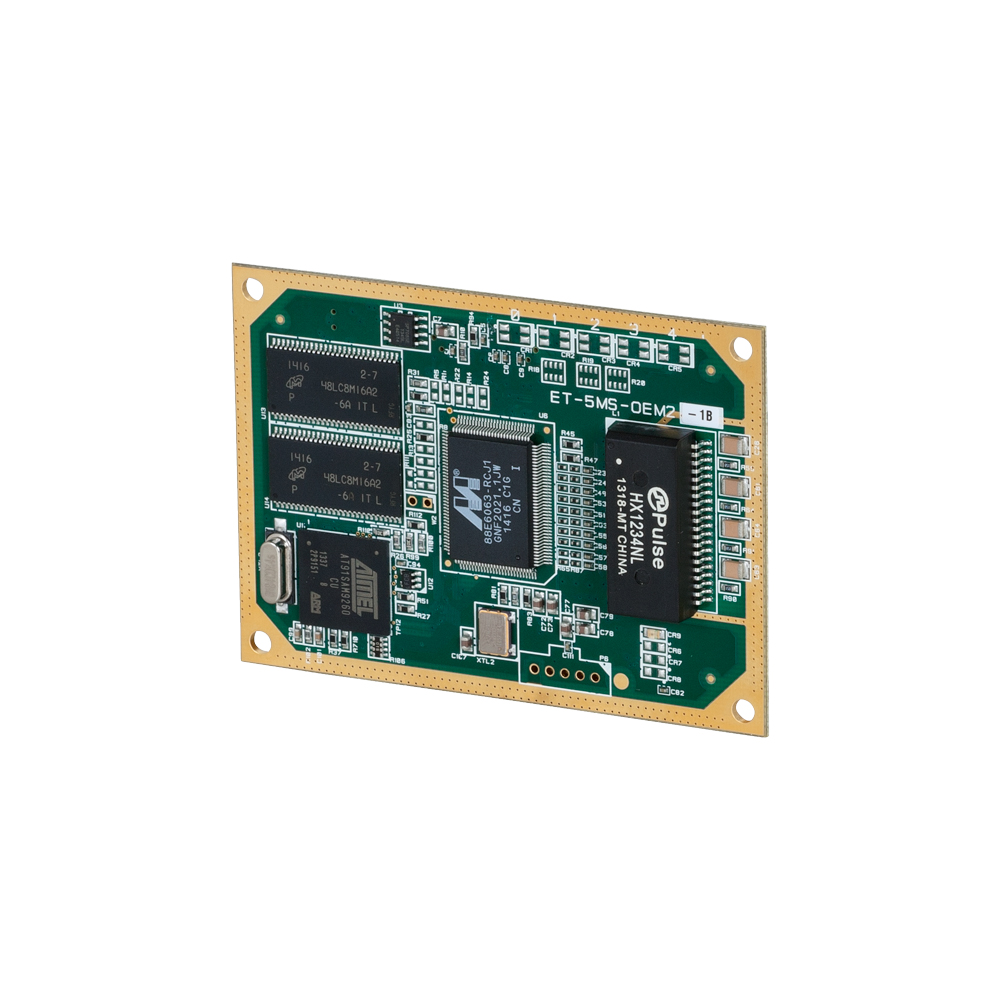

ET OEM Series, 6-Port, Sixnet ET-5MS-OEM-2-1B Industrial Ethernet Switch
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: ET-5MS-OEM-2-1B
Weight: 0.2 lb(s)
Red Lion Sixnet® series ET OEM board-level switches are available in five or eight port configurations with layer 2 managed functionality. Models include 10/100 or 10/100/1000 port speeds. This powerful board-level solution enables organizations to save time and money by utilizing a pre-engineered proven platform reducing engineering time and product risk.
Features
Board-level design for embedded applications.
- Up to six 10/100Base-T(X) Ethernet ports • 4 on-board PHYs and magnetics • 1 on-board PHYs (requires external magnetics) • 1 MII port for interface to external CPU/PHY/fiber tranceiver
- Samtec Connectors (2 for board to board connections, plus Molex ribbon interface)
- -40° to 75°C wide temperature operation
- 3.3 VDC power input
- 10/100Base-T(X), duplex and MDIX auto sensing
- Security with HTTPS, SSL, SSH and SNMPv3 and more
- Easy configuration via Web, Telnet or CLI
- Broadcast and multicast storm protection
Fully Managed Features:
- SNMP v1, v2, v3
- RSTP 802.1d, 802.1w, 802.1D
- MSTP
- IGMP v1, v2
- Port mirroring
- 802.1Q tag VLAN and port VLAN
- 802.1p QoS, port QoS and DSCP
- DHCP Client/Server
ET OEM Series, 6-Port, Sixnet ET-5MS-OEM-2-1B Industrial Ethernet Switch
Brand:Red Lion
Manufacturer Product Family:ET OEM Series Boards
Process Connection Type:Samtec
Min Operating Temperature:-40 °C
Max Operating Temperature:75 °C
Input Voltage:3.3 VDC
No. Ports:6
10/100 Ports:6
Specifications
| Brand | Red Lion |
| Manufacturer Product Family | ET OEM Series Boards |
| Process Connection Type | Samtec |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Input Voltage | 3.3 VDC |
| No. Ports | 6 |
| 10/100 Ports | 6 |
