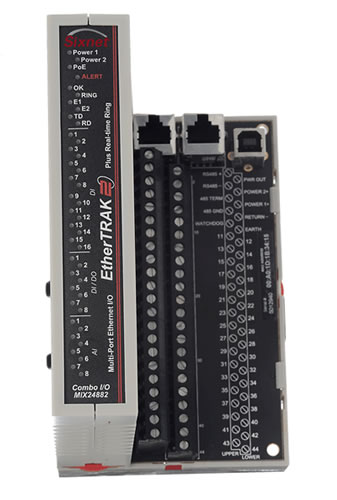

EtherTRAK-2 I/O Series, Module-32 Mixed Inputs/Outputs, PoE
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: EB-MIX24880-D
Weight: 1.5 lb(s)
On Hand: 0
Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.
Features
Discrete Input Channels
- Voltage range : 10 – 30 VDC
- Input Polarity: Sourcing (apply power to active) or sinking (ground closure) on 8 inputs
- Guaranteed ON voltage: 9 VDC
- Guaranteed OFF voltage: 5.0 VDC
- Guaranteed OFF current: 2 mA DC
- Input resistance: 10 Kohms
- Input current (@ 24 VDC) 3 mA
- Input Protection: High Impedance with overvoltage protection
- Filtered ON/OFF delay: 25 ms (20 Hz. max. counting rate)
- Fastest response: 1 ms (400 Hz. max. counting rate)
- Special fast counting rate: Up to 50 KHz on channel 2, channel 1 is isolated
- Pulse Counting Options: Count up, pulse timing and pulse rate 16 or 32 bit reporting
- Scan rate (all channels) 1 ms
Discrete Output Channels
- Output voltage range 10-30 VDC
- Max. output power: 1A per channels, 8A per module, .8A at 60°C 1 channel, .4A at 60°C 8 channels at 24 VDC
- Max. off state leakage: 0.01 mA (less than 10 uA)
- Short circuit protection, self-reset fuses (trip above 1.5 Amp)
- Min. load: 1 mA
- Inrush current: 5 Amps (100 ms surge)
- Typical on resistance: 0.3 Ohms (Drop 0.3 VDC @ 1 Amp)
- Input isolation: 150 Volts
- All channels Scan rate: 1 ms
Analog Input Channels
- Analog Input Range: 4-20 mA
- A/D resolution 16 bits (0.003%) 10 bits (fast option)
- Full scale accuracy: +/- 0.02% (at 20 °C, 16 bit mode)
- Temperature coefficient +/- 50 ppm per °C (span and offset)
- Input impedance (resistance): 100 ohms
- Protection: Self-resetting short circuit protection fuses
- DMRR (differential mode) 66 db at 50/60 Hz
- Fastest update time [# of chan.]: 880 ms [all] -16-bit; 145 ms [all] -14-bit; 1 ms [2] -10-bit
- PoE power internally supplies power to module intelligence, communications, and inputs.
Configuration
- Configured using Sixnet I/O Tool Kit
- Graphical User Interface (GUI)
EtherTRAK-2 I/O Series, Module-32 Mixed Inputs/Outputs, PoE
Brand:Red Lion
Manufacturer Product Family:EtherTRAK-2 I/O Series Modules
Digital Input:16
Digital Output:8
Analog Input:8
Feature: PoE Capable:Yes
