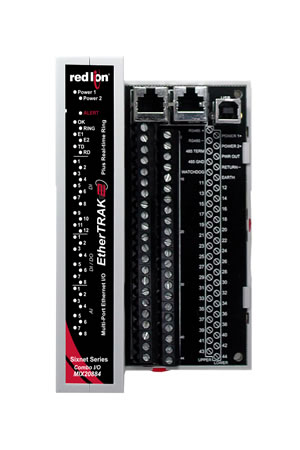

Representative photo. Please check item description for details.
EtherTRAK-2 I/O Series, -16 Isolated Analog Inputs (4-20mA), PoE
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: EB-16ISO20M-D
Weight: 1.5 lb(s)
On Hand: 0
Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.
Features
Analog Input Channels
- Analog Input Range: 4-20 mA
- A/D resolution 16 bits (0.003%)
- Full scale accuracy +/- 0.02% (at 20 °C, 16 bit mode)
- Temperature coefficient +/- 50 ppm per °C (span and offset)
- Input impedance (resistance) 100 ohms
- Protection: Self-resetting short circuit protection fuses
- DMRR (differential mode) 66 db at 50/60 Hz
- Fastest update time: 200 ms
- Common mode input voltage:
- Between two input terminals +/- 60 VDC
- Between inputs and ground 300 volts
Configuration
- Configured using Sixnet I/O Tool Kit
- Graphical User Interface (GUI)
EtherTRAK-2 I/O Series, -16 Isolated Analog Inputs (4-20mA), PoE
Brand:Red Lion
Manufacturer Product Family:EtherTRAK-2 I/O Series Modules
Analog Input:16
Feature: PoE Capable:Yes
Specifications
| Brand | Red Lion |
| Manufacturer Product Family | EtherTRAK-2 I/O Series Modules |
| Analog Input | 16 |
| Feature: PoE Capable | Yes |
