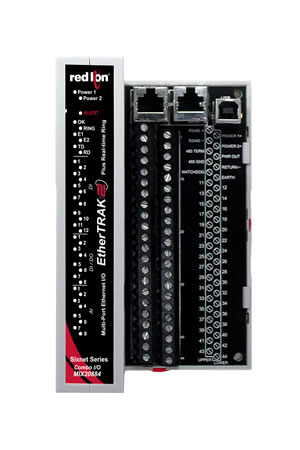

Representative photo. Please check item description for details.
EtherTRAK-2 I/O Series, Module-16 Isolated Digital Inputs, PoE
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: EB-16DI24-D
Weight: 1.55 lb(s)
On Hand: 0
Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.
Features
Discrete Input Channels
- Voltage range: 10 – 30 VDC
- Input Polarity: Sourcing
- Input isolation: 150 Volts
- Guaranteed ON voltage: 9 VDC
- Guaranteed OFF voltage: 5.0 VDC
- Guaranteed OFF current: 2 mA DC
- Input resistance: 10 Kohms
- Input current (@ 24 VDC) 3 mA
- Input Protection: High Impedance with overvoltage protection
- Filtered ON/OFF delay: 25 ms (20 Hz. max. counting rate)
- Fastest response: 1 ms (400 Hz. max. counting rate)
- Special fast counting rate: Up to 2 KHz on channels 1 and 2
- Pulse Counting Options: Count up, pulse timing and pulse rate 16 or 32 bit reporting
- Scan rate (all channels) 1 ms
- PoE power internally supplies power to module intelligence, communications, and inputs.
Configuration
- Configured using Sixnet I/O Tool Kit
- Graphical User Interface (GUI)
EtherTRAK-2 I/O Series, Module-16 Isolated Digital Inputs, PoE
Brand:Red Lion
Manufacturer Product Family:EtherTRAK-2 I/O Series Modules
Digital Input:16
Feature: PoE Capable:Yes
Specifications
| Brand | Red Lion |
| Manufacturer Product Family | EtherTRAK-2 I/O Series Modules |
| Digital Input | 16 |
| Feature: PoE Capable | Yes |
