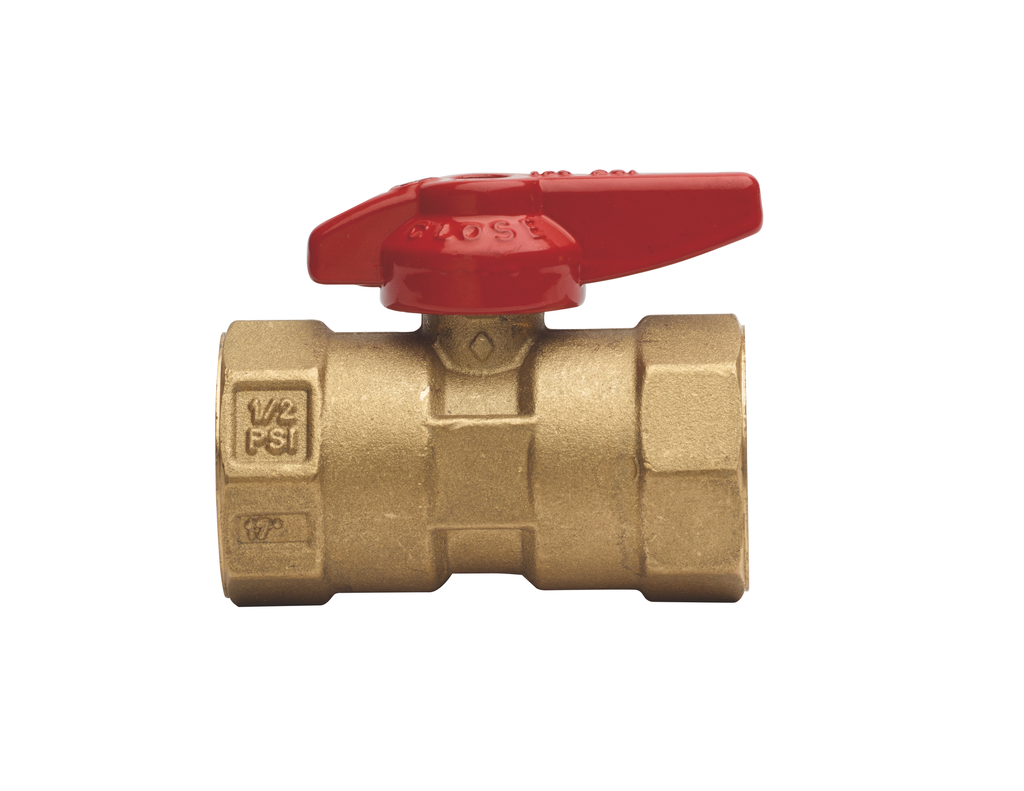

9280 Gas-Cock Series Gas Ball Valve, Unibody Design, Standard Port, FIP x FIP Threaded
Manufacturer: Bonomi North America Inc
Mfg Product Code: 9280
Weight: 5.0 lb(s)
9280 Gas-Cock Series Gas ball valve unibody design, standard port, FIP x FIP threaded.
According to:
CAN 1-9.1 - US REQUIREMENTS 3-88.
CGA CR 91-002 - ANSI Z21.15
UL 125 "LP GAS" - UL 842 - SUBJECT 258.
ANSI B1.20.1 connections.
Features
Blow-out proof stem, chrome plated brass ball.
PTFE seats.
100% electronically tested in the open and closed position at 80 psi.
Valve to be used in fully open or fully closed position.
One piece body.
Meets the Design Criteria of MSS SP-110.
Model Details
9280: size 3/8” to 3/4”
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
9280 Gas-Cock Series Gas Ball Valve, Unibody Design, Standard Port, FIP x FIP Threaded
Specifications
| Valve Size | 3/8" x 3/8" or 1/2" x 1/2" or 3/4" x 3/4" |
