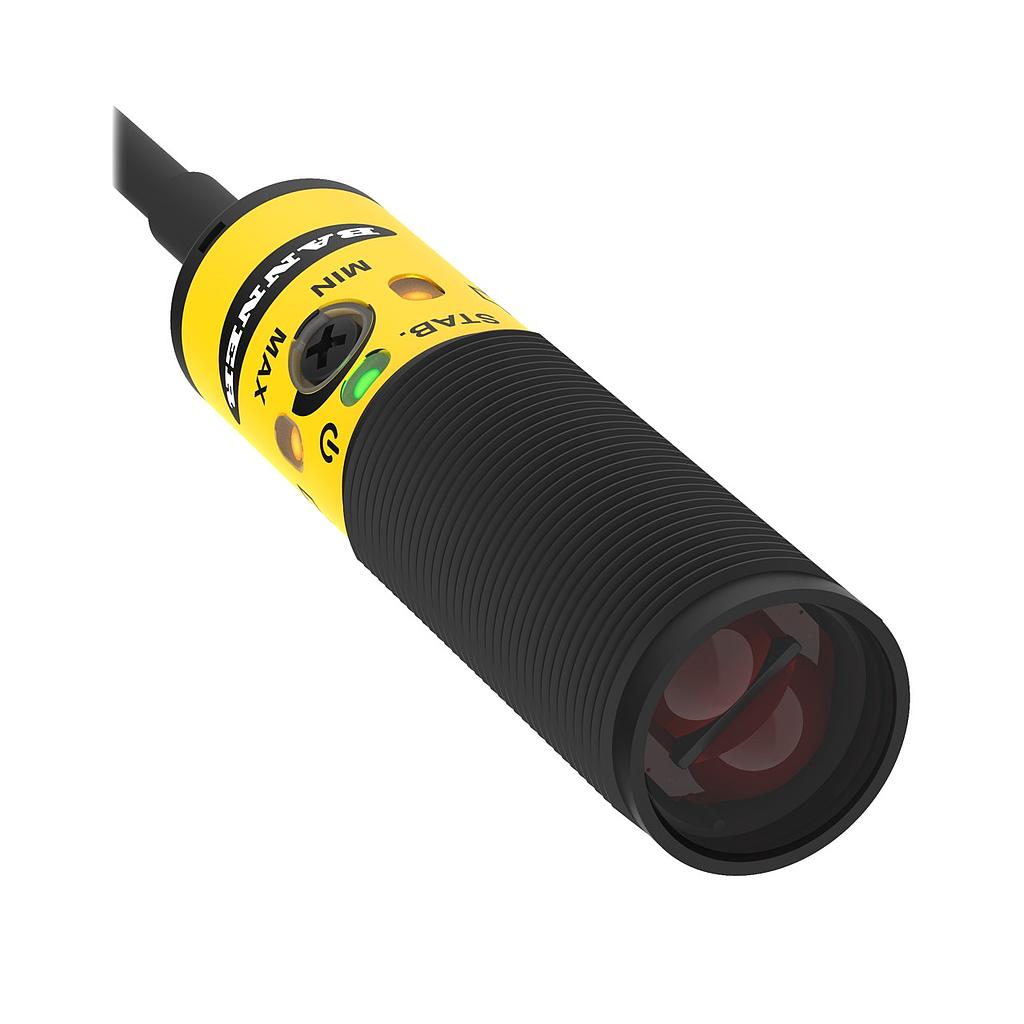

S18-2 Series: Receiver with pot, S18-2VNRS-Q5
Manufacturer: Banner Engineering Corp
Mfg Product Code: 86569
Weight: 0.09 lb(s)
S18-2 Series: Receiver with pot
Features:
- S18-2 Series: Receiver with pot
- Range: variable to 25 m
- Input: 10-30 V dc
- Outputs: complementary NPN
- Connection: Euro M12 4-pin 150 mm PVC Pigtail
S18-2 Series: Receiver with pot, S18-2VNRS-Q5
S18-2 Series: Receiver with pot
Measurement Maximum:0
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):170
Sensing Beam:Visible Red LED
Housing Style:Barrel
Max Sensing Distance:25000 mm
Sensing Mode (Detailed):Receiver
Sensing Mode (General):Opposed
Max Relative Humidity:95% @ 50 °C
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M12 (Euro)
Feature: Chemical Resistant:No
Opposed Mode Emitter/Receiver:Receiver
Feature: Water Detection:No
Number of Pins:4
Output Response Time:1.5 ms
Operation:Light/Dark Operate
Adjustments:Potentiometer
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:No
Barrel Diameter:18
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection:Pigtail QD
Country of Origin:CN
Indicator Type:LED
Specifications
| Measurement Maximum | 0 |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 100 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Repeatability (µs) | 170 |
| Sensing Beam | Visible Red LED |
| Housing Style | Barrel |
| Max Sensing Distance | 25000 mm |
| Sensing Mode (Detailed) | Receiver |
| Sensing Mode (General) | Opposed |
| Max Relative Humidity | 95% @ 50 °C |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No |
| Quick Disconnect Type | M12 (Euro) |
| Feature: Chemical Resistant | No |
| Opposed Mode Emitter/Receiver | Receiver |
| Feature: Water Detection | No |
| Number of Pins | 4 |
| Output Response Time | 1.5 ms |
| Operation | Light/Dark Operate |
| Adjustments | Potentiometer |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | No |
| Barrel Diameter | 18 |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection | Pigtail QD |
| Country of Origin | CN |
| Indicator Type | LED |
