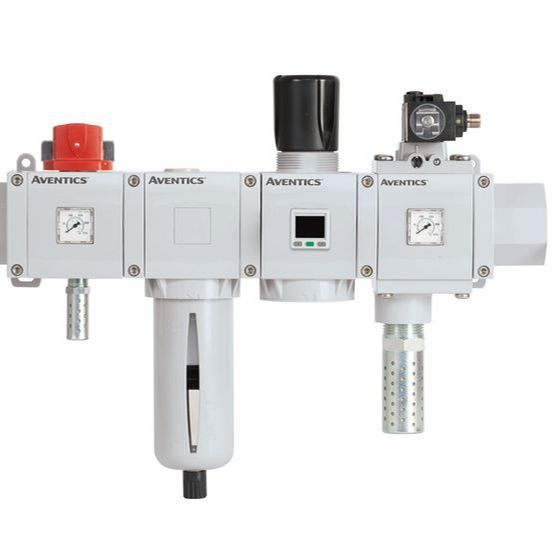

AVENTICS 652 Series Air Preparation Unit, 1/2" NPT, IO-Link, 5-Pin M12X1 Plug, Manual, Semi-Automatic Drain
Manufacturer: Asco LP
Mfg Product Code: 8652AVBP4JA000N
Weight: 2.0 lb(s)
Air Prep Unit, NPT -20 °C, IO-Link, 5-Pin M12X1 Plug, Manual, Semi-Automatic Drain
The AVENTICS Series 652 is an easy-to-install line of pneumatic filters, regulators and lubricators (FRLs) that offer the industry´s highest flow rates and widest temperature ratings. Available in 1/4-inch, 3/8-inch, and 1/2-inch port sizes, these FRLs are ideal for automotive and tire, packaging, food and beverage, and process applications requiring highly reliable operation and robust, modern-looking equipment. Available with integrated redundant safe exhaust valve and IIoT enabled air flow sensor.
Features
- Note: Integrated web server, 48 VDC connection via Power over Ethernet
- Switching principle: Flow measuring principle: calorimetric
- Protocol: TCP/IP, OPC UA, MQTT
- Nominal flow Qn min., standard: 8 l/min
- Nominal flow Qn max., standard: 1630 l/min
- Nominal flow Qn min., extended: 1630 l/min
- Nominal flow Qn max., extended: 2445 l/min
- Compressed air connection: 1/2 NPT
- Certificates: CE declaration of conformity, RoHS
- Working pressure min.: 0 bar
- Working pressure max: 16 bar
- Min. ambient temperature: -20 °C
- Max. ambient temperature: 50 °C
- Min. medium temperature: -20 °C
- Max. medium temperature: 50 °C
- Medium: Compressed air, Argon, Nitrogen, Helium, Carbon dioxide
- filter porosity: 5 µm
- Display: OLED
- Flow display unit: l/sec, l/min, m³/min, m³/h, ft³/s, m³/min
- Pressure display unit: bar, psi
- Temperature display unit: °C, °F
- Electrical connection Type: Plug
- Electrical connection size: M12x1
- Electrical connection pin: 8-pin
- Power consumption max.: 5 W:
AVENTICS 652 Series Air Preparation Unit, 1/2" NPT, IO-Link, 5-Pin M12X1 Plug, Manual, Semi-Automatic Drain
Air Prep Unit, NPT -20 °C, IO-Link, 5-Pin M12X1 Plug, Manual, Semi-Automatic Drain
Brand:Asco
Manufacturer Product Family:AVENTICS 652 Series
Max Operating Pressure:16 bar
Output Communication Protocol:Manual, Semi-Automatic Drain
Connection Type:5-Pin M12X1 Plug
Flow:1630 LPM
Added Options:IO-Link
Specifications
Brand | Asco |
Manufacturer Product Family | AVENTICS 652 Series |
Max Operating Pressure | 16 bar |
Output Communication Protocol | Manual, Semi-Automatic Drain |
Connection Type | 5-Pin M12X1 Plug |
Flow | 1630 LPM |
Added Options | IO-Link |
