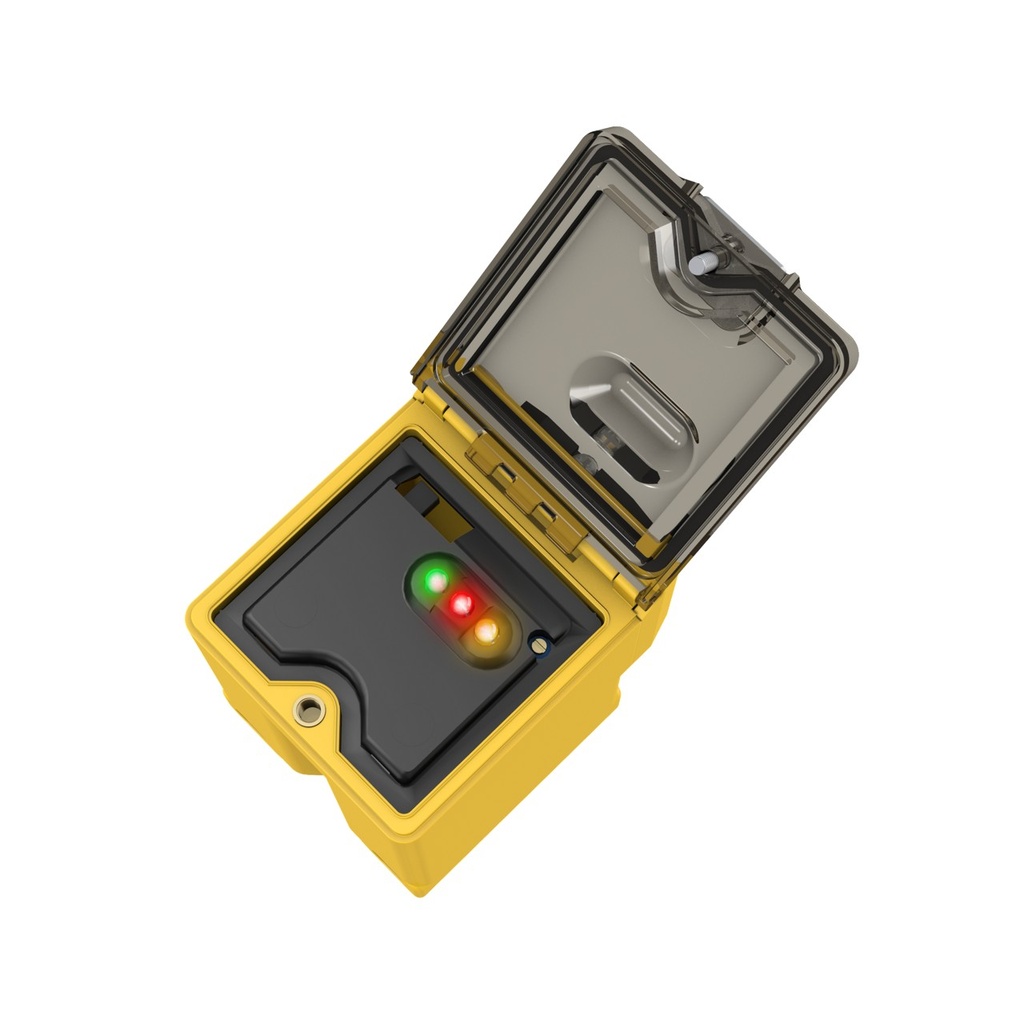

Q45 Series: Polarized Retro, Q45VR3LPQ-86418
Manufacturer: Banner Engineering Corp
Mfg Product Code: 86418
Weight: 0.65 lb(s)
Q45 Series: Polarized Retro
Features:
- Q45 Series: Polarized Retro
- Range: 0.15 to 6 m
- Input: 12-250 V dc / 24-250 V ac
- Output: SPDT Electromechanical Relay
- Mini 5-pin Integral Connector: 45LM58 added, switches
- OFF,OFF,OFF,ON,ON,OFF,OFF,OFF
Q45 Series: Polarized Retro, Q45VR3LPQ-86418
Q45 Series: Polarized Retro
Measurement Maximum:0
Min Operating Temperature:-25 °C
Max Operating Temperature:55 °C
Lens Material:Acrylic
Power Supply:12-250 VDC or 24-250 VAC
Delay at Power-Up:100 ms
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):500
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:680
Housing Style:Rectangular
Max Sensing Distance:6000 mm
Sensing Mode (Detailed):Polarized
Sensing Mode (General):Retroreflective
Max Relative Humidity:90% @ 50 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:7/8 in. (Mini)
Feature: Chemical Resistant:No
Feature: Water Detection:No
Number of Pins:5
Output Response Time:15 ms
Operation:Light/Dark Operate
Adjustments:Potentiometer
Feature: Timing (Hold/Delay):Yes
Feature: Encapsulated:No
Input/Output:E/M Relay
Barrel Diameter:30 mm
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Integral QD
Country of Origin:US
NEMA / UL:NEMA 6P
Indicator Type:LED
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 55 °C |
| Lens Material | Acrylic |
| Power Supply | 12-250 VDC or 24-250 VAC |
| Delay at Power-Up | 100 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Repeatability (µs) | 500 |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 680 |
| Housing Style | Rectangular |
| Max Sensing Distance | 6000 mm |
| Sensing Mode (Detailed) | Polarized |
| Sensing Mode (General) | Retroreflective |
| Max Relative Humidity | 90% @ 50 °C |
| Housing Material_ | Thermoplastic |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No |
| Quick Disconnect Type | 7/8 in. (Mini) |
| Feature: Chemical Resistant | No |
| Feature: Water Detection | No |
| Number of Pins | 5 |
| Output Response Time | 15 ms |
| Operation | Light/Dark Operate |
| Adjustments | Potentiometer |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Encapsulated | No |
| Input/Output | E/M Relay |
| Barrel Diameter | 30 mm |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Integral QD |
| Country of Origin | US |
| NEMA / UL | NEMA 6P |
| Indicator Type | LED |
