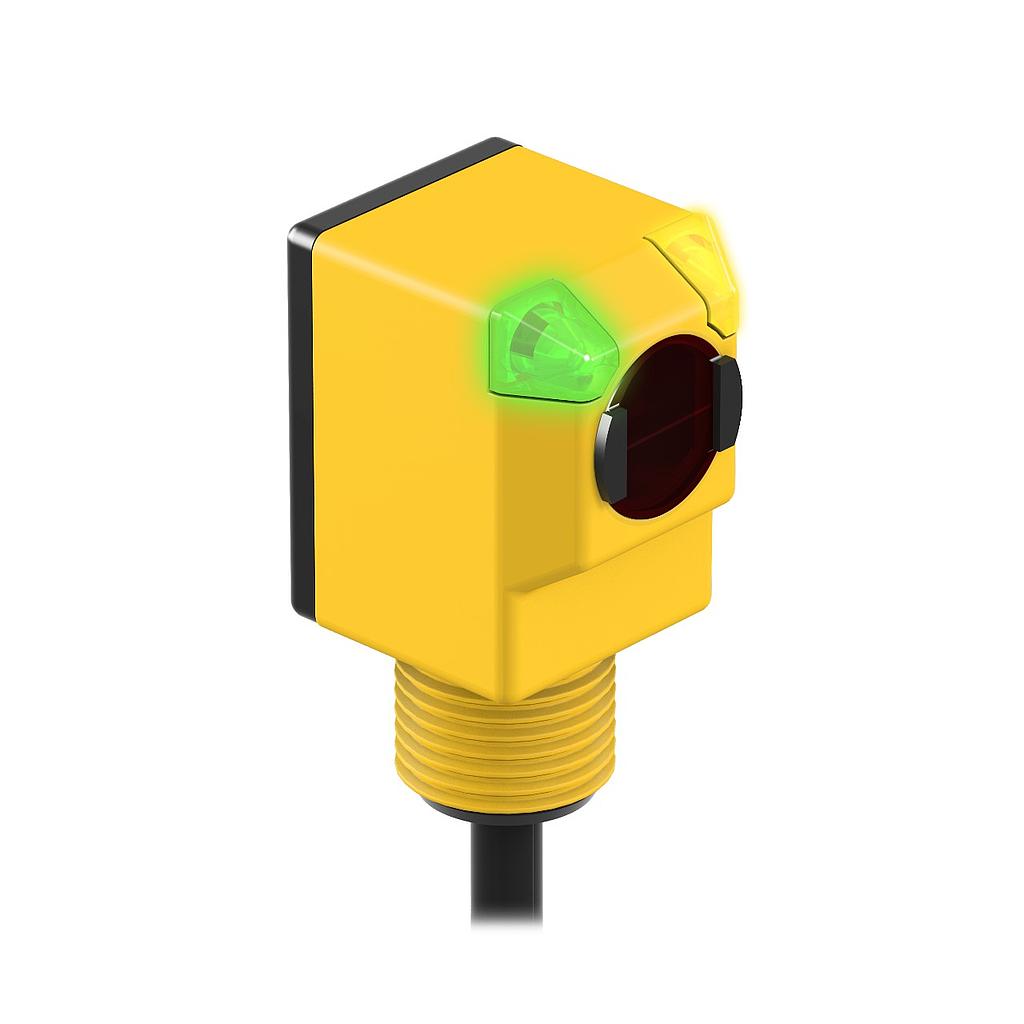

EZ-BEAM Q25 Series: Fixed Field, Q25SP6FF100QP
Manufacturer: Banner Engineering Corp
Mfg Product Code: 85732
Weight: 0.35 lb(s)
EZ-BEAM Q25 Series: Fixed Field
Features:
- EZ-BEAM Q25 Series: Fixed Field
- Range: 100 mm
- Input: 10-30 V dc
- Output: Complementary PNP
- Euro 4-pin 150 mm ( 6 in) PVC Pigtail
EZ-BEAM Q25 Series: Fixed Field, Q25SP6FF100QP
EZ-BEAM Q25 Series: Fixed Field
Brand:Banner
Manufacturer Product Family:Q25
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Measurement Minimum:0
Ingress Protection:IP69
Repeatability (µs):750
Sensing Beam:Infrared LED
Housing Style:Rectangular
Max Sensing Distance:100 mm
Sensing Mode (Detailed):Background Suppression (Fixed)
Sensing Mode (General):Proximity
Max Relative Humidity:90% @ 50 °C
Housing Material_:Thermoplastic
Feature: Washdown Rated:Yes
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M12
Feature: Chemical Resistant:Yes, Yes
Feature: Ecolab Certified:Yes
Feature: Water Detection:No
Number of Pins:4
Output Response Time:3 ms
Operation:Light/Dark Operate
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:Yes
Input/Output:Discrete
Barrel Diameter:18 mm
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Pigtail QD
Country of Origin:US
NEMA / UL:NEMA 6P
Feature: Health/Marginal Signal Output:Yes
Indicator Type:LED
Specifications
| Brand | Banner |
| Manufacturer Product Family | Q25 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 100 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP69 |
| Repeatability (µs) | 750 |
| Sensing Beam | Infrared LED |
| Housing Style | Rectangular |
| Max Sensing Distance | 100 mm |
| Sensing Mode (Detailed) | Background Suppression (Fixed) |
| Sensing Mode (General) | Proximity |
| Max Relative Humidity | 90% @ 50 °C |
| Housing Material_ | Thermoplastic |
| Feature: Washdown Rated | Yes |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No |
| Quick Disconnect Type | M12 |
| Feature: Chemical Resistant | Yes, Yes |
| Feature: Ecolab Certified | Yes |
| Feature: Water Detection | No |
| Number of Pins | 4 |
| Output Response Time | 3 ms |
| Operation | Light/Dark Operate |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | Yes |
| Input/Output | Discrete |
| Barrel Diameter | 18 mm |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Pigtail QD |
| Country of Origin | US |
| NEMA / UL | NEMA 6P |
| Feature: Health/Marginal Signal Output | Yes |
| Indicator Type | LED |
