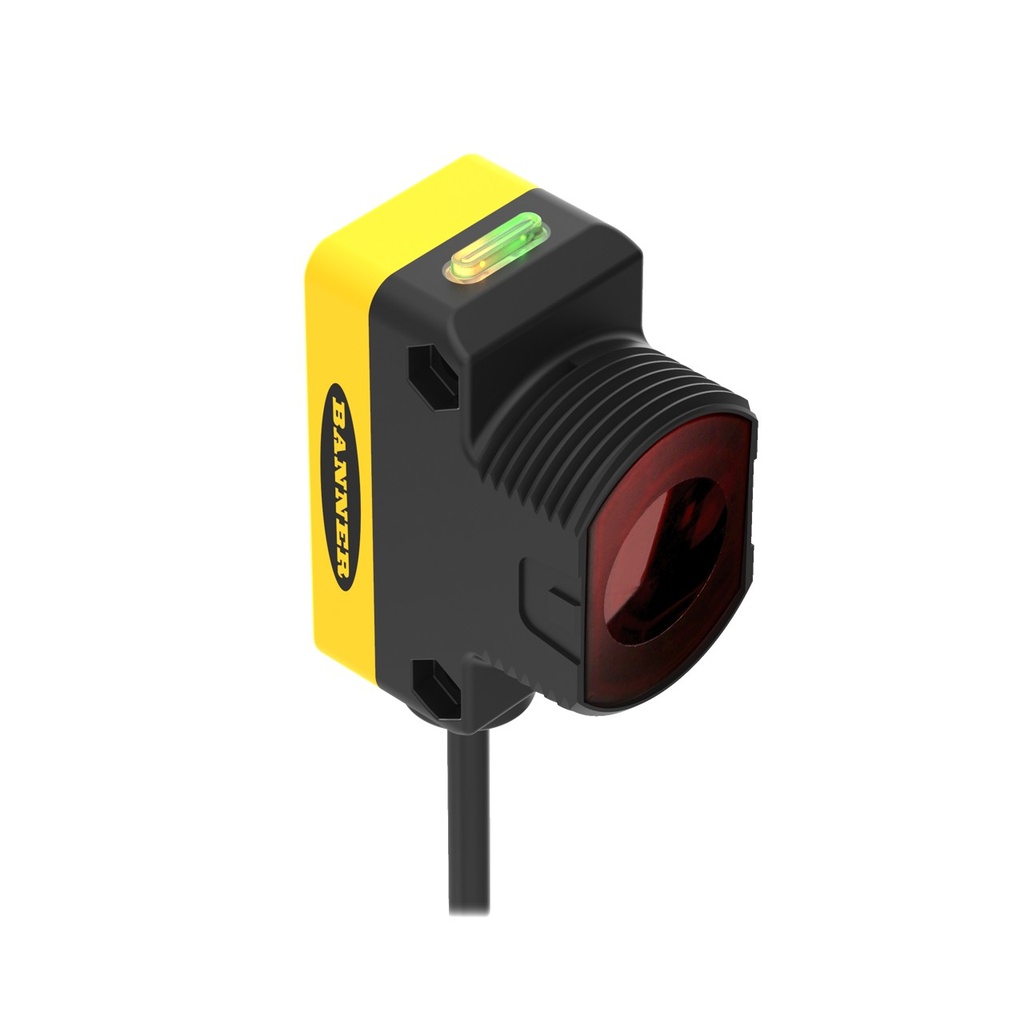

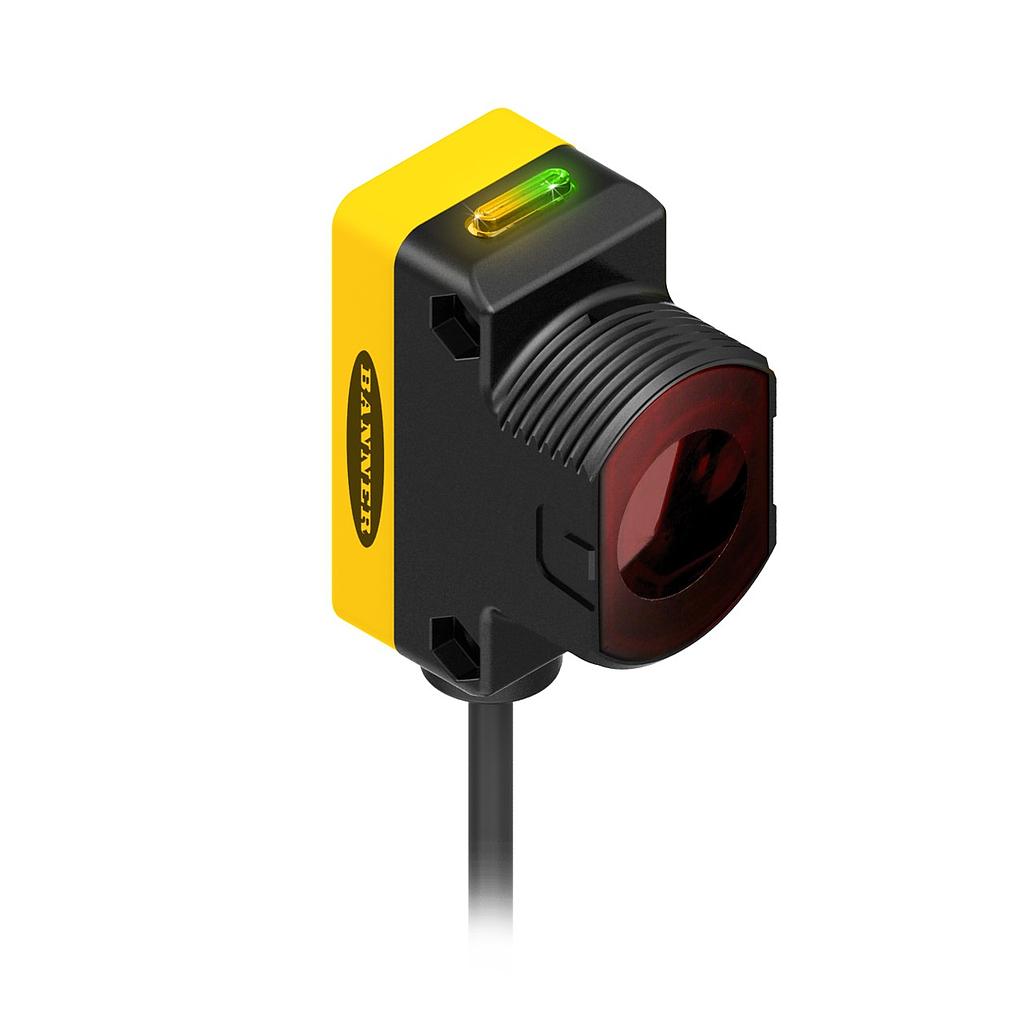

WORLD-BEAM QS30 Series: Receiver , QS30BR-85446
Manufacturer: Banner Engineering Corp
Mfg Product Code: 85446
Weight: 0.7 lb(s)
WORLD-BEAM QS30 Series: Receiver Range: 60 m
Features:
- WORLD-BEAM QS30 Series: Receiver
- Range: 60 m
- Input: 10-30 V dc, B frequency, Output: Bipolar: 1 NPN
- 1 PNP
- 9 m (30 ft) Cable
WORLD-BEAM QS30 Series: Receiver , QS30BR-85446
WORLD-BEAM QS30 Series: Receiver Range: 60 m
Brand:Banner
Manufacturer Product Family:QS30
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:70 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Measurement Minimum:0
Ingress Protection:IP67
Sensing Beam:Infrared LED
Housing Style:Rectangular w/M30 Mount
Max Sensing Distance:60000 mm
Sensing Mode (Detailed):Receiver
Sensing Mode (General):Opposed
Max Relative Humidity:95% @ 50 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:No
Feature: Audible:No
Feature: Chemical Resistant:No
Opposed Mode Emitter/Receiver:Receiver
Feature: Water Detection:No
Number of Pins:5
Output Response Time:5 ms
Operation:Light/Dark Operate
Adjustments:N/A
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:No
Input/Output:Discrete
Barrel Diameter:30 mm
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Cable
Country of Origin:US
NEMA / UL:NEMA 6
Cord/Cable Length:9 m
Indicator Type:LED
Specifications
| Brand | Banner |
| Manufacturer Product Family | QS30 |
| Measurement Maximum | 0 |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 100 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Sensing Beam | Infrared LED |
| Housing Style | Rectangular w/M30 Mount |
| Max Sensing Distance | 60000 mm |
| Sensing Mode (Detailed) | Receiver |
| Sensing Mode (General) | Opposed |
| Max Relative Humidity | 95% @ 50 °C |
| Housing Material_ | Thermoplastic |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | No |
| Opposed Mode Emitter/Receiver | Receiver |
| Feature: Water Detection | No |
| Number of Pins | 5 |
| Output Response Time | 5 ms |
| Operation | Light/Dark Operate |
| Adjustments | N/A |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | No |
| Input/Output | Discrete |
| Barrel Diameter | 30 mm |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Cable |
| Country of Origin | US |
| NEMA / UL | NEMA 6 |
| Cord/Cable Length | 9 m |
| Indicator Type | LED |
