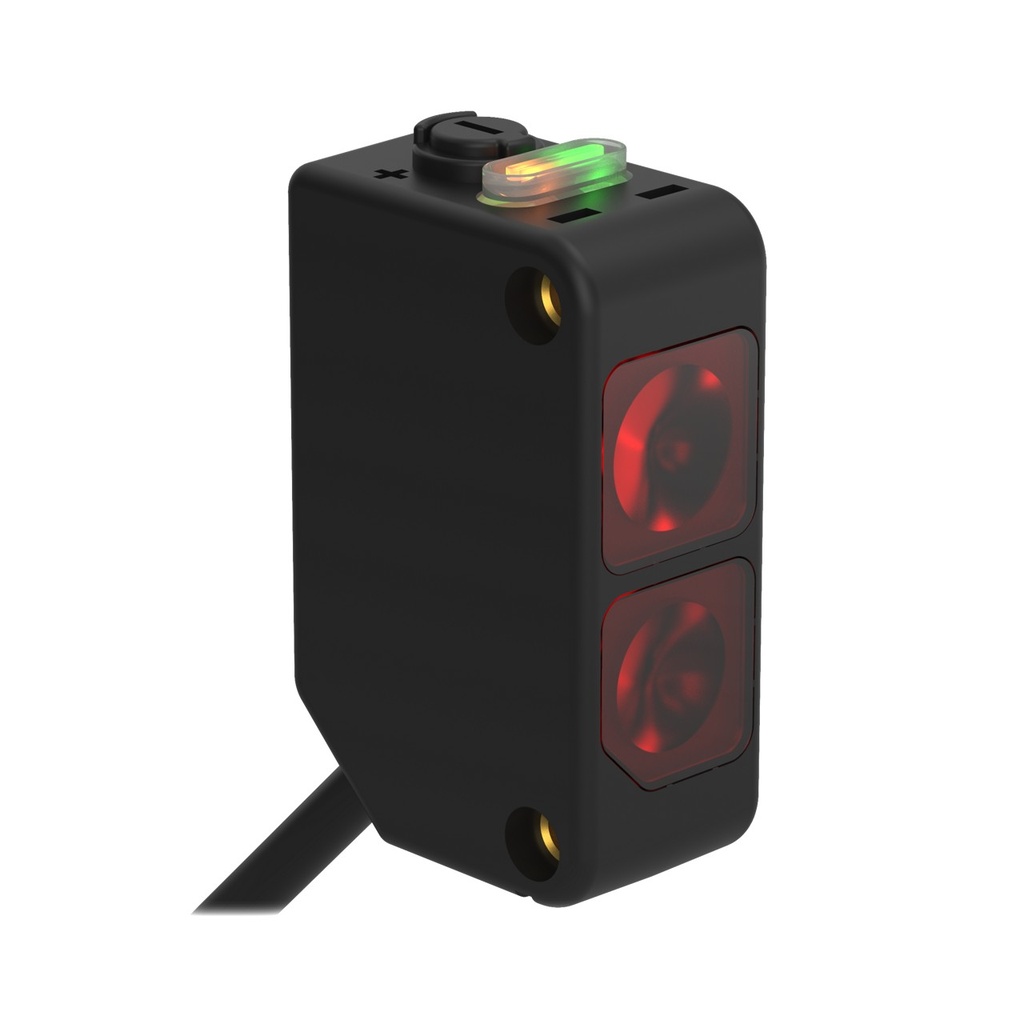

WORLD-BEAM Q20 Series: Long Range Diffuse, Q20PDXLQ5-85213
Manufacturer: Banner Engineering Corp
Mfg Product Code: 85213
Weight: 0.38 lb(s)
WORLD-BEAM Q20 Series: Long Range Diffuse
Features:
- WORLD-BEAM Q20 Series: Long Range Diffuse
- Sunlight Enhanced (IR)
- Range: 1500 mm
- Input 10-30 V dc
- Output: Complementary Solid State PNP
- Euro 6 in Quick Disconnect Pigtail
- Indicator Light Mounting Bracket
- Bracket Mounting SMBQ20U
- Right Angle
- Fits 1/2 in NPSM pipe
- Color: Gray
- Assembled Kit
WORLD-BEAM Q20 Series: Long Range Diffuse, Q20PDXLQ5-85213
WORLD-BEAM Q20 Series: Long Range Diffuse
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:60 °C
Lens Material:N/A
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):155
Sensing Beam:Infrared LED
Housing Style:Rectangular
Max Sensing Distance:1500 mm
Sensing Mode (Detailed):Diffuse
Sensing Mode (General):Proximity
Max Relative Humidity:95% @ 50 °C, 95% @ 50 °C
Housing Material_:Thermoplastic
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No, No
Quick Disconnect Type:M12
Feature: Water Detection:No
Number of Pins:4
Output Response Time:0.8 ms
Operation:Light/Dark Operate
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:No
Input/Output:Discrete
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Pigtail QD
Country of Origin:CN
NEMA / UL:NEMA 6
Indicator Type:LED
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Lens Material | N/A |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 100 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Repeatability (µs) | 155 |
| Sensing Beam | Infrared LED |
| Housing Style | Rectangular |
| Max Sensing Distance | 1500 mm |
| Sensing Mode (Detailed) | Diffuse |
| Sensing Mode (General) | Proximity |
| Max Relative Humidity | 95% @ 50 °C, 95% @ 50 °C |
| Housing Material_ | Thermoplastic |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No, No |
| Quick Disconnect Type | M12 |
| Feature: Water Detection | No |
| Number of Pins | 4 |
| Output Response Time | 0.8 ms |
| Operation | Light/Dark Operate |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | No |
| Input/Output | Discrete |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Pigtail QD |
| Country of Origin | CN |
| NEMA / UL | NEMA 6 |
| Indicator Type | LED |
