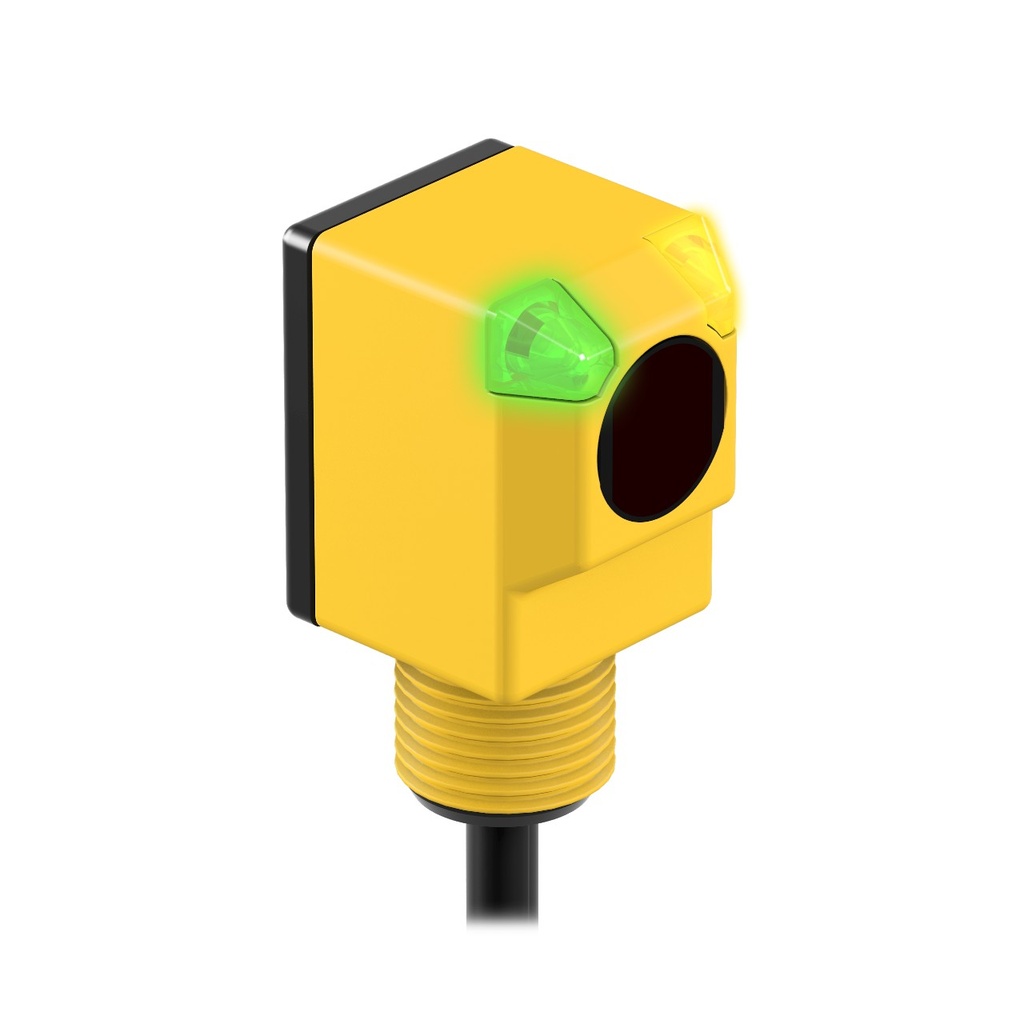

EZ-BEAM Q25 Series: Polarized Retro, Q25RW3LP W/15
Manufacturer: Banner Engineering Corp
Mfg Product Code: 84546
Weight: 1.34 lb(s)
EZ-BEAM Q25 Series: Polarized Retro
Features:
- EZ-BEAM Q25 Series: Polarized Retro
- Range: 2 m
- Input: 20-250 V ac
- Output: SPST Solid-state Dark Operate
- 4.5 m (15 ft) cable
EZ-BEAM Q25 Series: Polarized Retro, Q25RW3LP W/15
EZ-BEAM Q25 Series: Polarized Retro
Brand:Banner
Manufacturer Product Family:Q25
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Lens Material:Acrylic
Power Supply:20-250 VAC
Delay at Power-Up:100 ms
Measurement Minimum:0
Ingress Protection:IP69
Repeatability (µs):4000
Sensing Beam:Visible Red LED
Housing Style:Rectangular
Max Sensing Distance:2000 mm
Sensing Mode (Detailed):Polarized
Sensing Mode (General):Retroreflective
Max Relative Humidity:90% @ 50 °C
Housing Material_:Thermoplastic
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:No
Feature: Audible:No
Feature: Chemical Resistant:Yes, Yes
Feature: Ecolab Certified:Yes
Feature: Water Detection:No
Number of Pins:3
Output Response Time:16 ms
Operation:Dark Operate
Adjustments:N/A
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:Yes
Input/Output:Solid-State AC Switch
Barrel Diameter:18 mm
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Other
Country of Origin:US
NEMA / UL:NEMA 6P
Indicator Type:LED
Specifications
| Brand | Banner |
| Manufacturer Product Family | Q25 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Lens Material | Acrylic |
| Power Supply | 20-250 VAC |
| Delay at Power-Up | 100 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP69 |
| Repeatability (µs) | 4000 |
| Sensing Beam | Visible Red LED |
| Housing Style | Rectangular |
| Max Sensing Distance | 2000 mm |
| Sensing Mode (Detailed) | Polarized |
| Sensing Mode (General) | Retroreflective |
| Max Relative Humidity | 90% @ 50 °C |
| Housing Material_ | Thermoplastic |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | Yes, Yes |
| Feature: Ecolab Certified | Yes |
| Feature: Water Detection | No |
| Number of Pins | 3 |
| Output Response Time | 16 ms |
| Operation | Dark Operate |
| Adjustments | N/A |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | Yes |
| Input/Output | Solid-State AC Switch |
| Barrel Diameter | 18 mm |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Other |
| Country of Origin | US |
| NEMA / UL | NEMA 6P |
| Indicator Type | LED |
