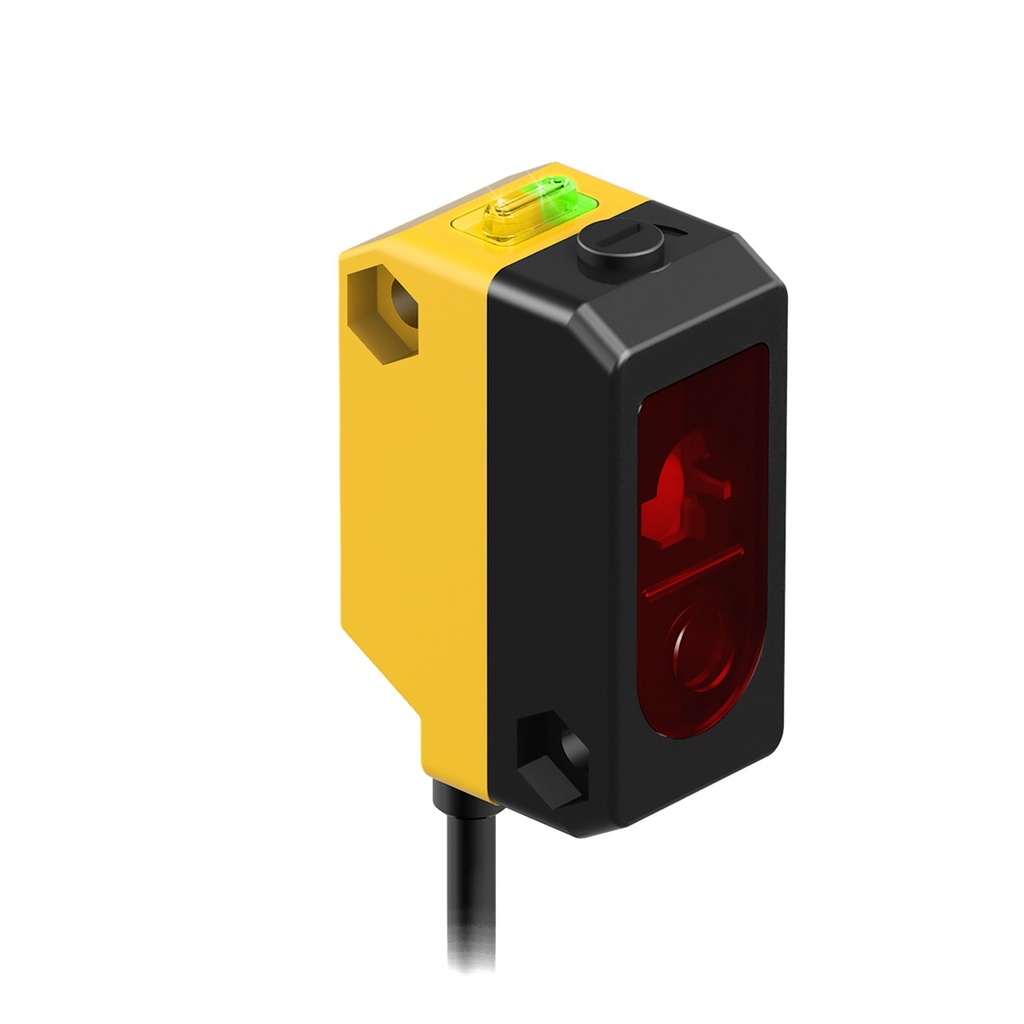

50Us L.O. Bipolar 600Mm Cable, QS18AB6LAF-82163
QS18AB6LAF-82163 50US L.O. BIPOLAR 600mm CABLE
Brand:Banner
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:200 ms
Ingress Protection:IP67
Repeatability (µs):130
Sensing Beam Wavelength:650
Housing Style:Rectangular
Max Sensing Distance:150 mm
Sensing Mode (Detailed):Background Suppression (Adjustable)
Sensing Mode (General):Proximity
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:No
Feature: Audible:No
Feature: Chemical Resistant:No
Feature: Water Detection:No
Output Response Time:0.7 ms
Operation:Light Operate
Adjustments:Mechanical Screw
Feature: Timing (Hold/Delay):No
Small Visible Spot:Laser
Feature: Encapsulated:No
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection:Other
Country of Origin:CN
NEMA / UL:NEMA 6, NEMA 6
Indicator Type:LED
Specifications
| Brand | Banner |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 200 ms |
| Ingress Protection | IP67 |
| Repeatability (µs) | 130 |
| Sensing Beam Wavelength | 650 |
| Housing Style | Rectangular |
| Max Sensing Distance | 150 mm |
| Sensing Mode (Detailed) | Background Suppression (Adjustable) |
| Sensing Mode (General) | Proximity |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | No |
| Feature: Water Detection | No |
| Output Response Time | 0.7 ms |
| Operation | Light Operate |
| Adjustments | Mechanical Screw |
| Feature: Timing (Hold/Delay) | No |
| Small Visible Spot | Laser |
| Feature: Encapsulated | No |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection | Other |
| Country of Origin | CN |
| NEMA / UL | NEMA 6, NEMA 6 |
| Indicator Type | LED |
