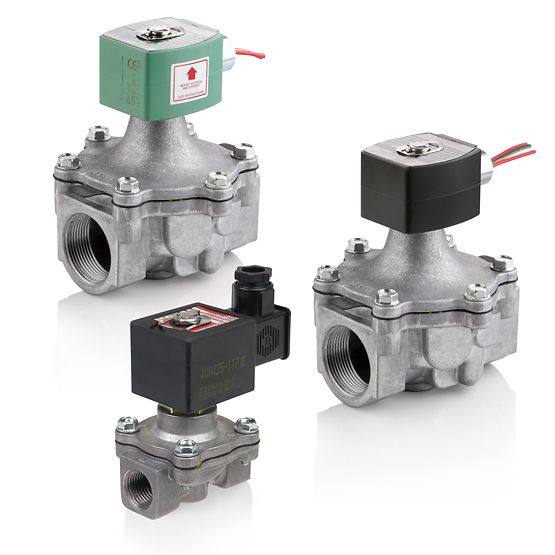

8215 Series 1" High-Flow, Aluminum, NO, Gas Shut-Off Valve
Manufacturer: Asco LP
Mfg Product Code:
The ASCO Series 215, also known as 8215, is an aluminum body, lightweight gas safety shut off valve for high flow, low-pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight shut off. Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles. The 215 Series is ideal for vacuum service and heating equipment applications.
Features
- Provides high flow with Cv up to 138 (Kv 118)
- Due to the resilient soft seating, these valves are ideal for high flow low pressure air and gas applications.
- A full range of pipe sizes up to 3-inches with both Normally Closed and Normally Open constructions.
- Wide range of standard AC and DC voltages
- Optional 20 million cycle long life quiet design for air service in normally closed and normally open constructions and 1-inch to 2-inch pipe available
8215 Series 1" High-Flow, Aluminum, NO, Gas Shut-Off Valve
Product Specifications:[C053] 1-5/8" Orifice | 22 Cv Flow
Lead Length:18" [D]
Valve Brand:Asco
Pipe Size:1in
Actuation:Solenoid - Direct Acting, Solenoid - Pilot Operated
Body Material:Aluminum
Core and Plugnut:430F SS
Core Guide:POM
Core Tube:305 SS
Diaphragm Material:NBR
Disc Material:NBR
Enclosure Type:Redhat II - Watertight, Redhat II - Explosionproof & Watertight, Redhat - Explosionproof & Raintight
Flow Factor (Cv):22.0
Gas Capacity (Btu/hr):1,191,750
Media:Air-Inert Gas
Min Pressure (psi):0
Max Pressure (psi):25
Min Temperature °F:32
Max Temperature °F:125
Mounting Position:Any, Vertical & Upright
Orifice:1-5/8in
Rider Rings:PTFE
Seal Material:NBR
Shading Coil:Copper
Springs:302 SS
Valve Function:2-Way Normally Open
Specifications
8215 Series 1" HF, NO, Gas Shut-Off Valve | |
---|---|
Solenoid Option | None or [JB] Factory Assembled Junction Box |
Coil Options | None or [HT] Class H - High Temperature |
Voltage | AC24/60 or AC110/50 or AC120/60 or AC120/60,110/50 or AC220/50 or AC240/60 or AC240/60,220/50 or DC6/DC or DC12/DC or DC24/DC or DC120/DC or DC240/DC |
Product Specifications | [C053] 1-5/8" Orifice | 22 Cv Flow |
Lead Length | 18" [D] |
Valve Features | |
---|---|
Valve Brand | Asco |
Pipe Size | 1in |
Actuation | Solenoid - Direct Acting, Solenoid - Pilot Operated |
Body Material | Aluminum |
Core and Plugnut | 430F SS |
Core Guide | POM |
Core Tube | 305 SS |
Diaphragm Material | NBR |
Disc Material | NBR |
Enclosure Type | Redhat II - Watertight, Redhat II - Explosionproof & Watertight, Redhat - Explosionproof & Raintight |
Flow Factor (Cv) | 22.0 |
Gas Capacity (Btu/hr) | 1,191,750 |
Media | Air-Inert Gas |
Min Pressure (psi) | 0 |
Max Pressure (psi) | 25 |
Min Temperature °F | 32 |
Max Temperature °F | 125 |
Mounting Position | Any, Vertical & Upright |
Orifice | 1-5/8in |
Rider Rings | PTFE |
Seal Material | NBR |
Shading Coil | Copper |
Springs | 302 SS |
Valve Function | 2-Way Normally Open |
