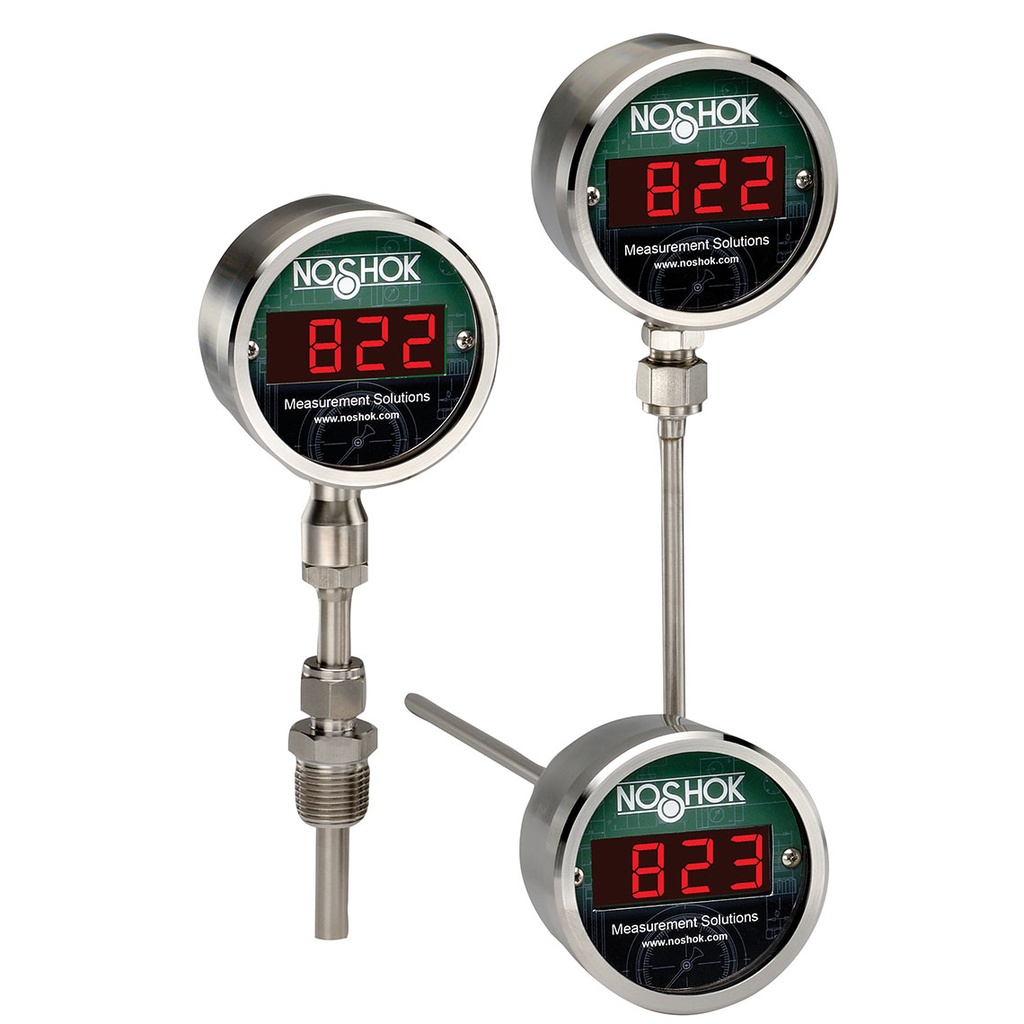

820 Series Digital Temperature Indicator, 50 to 200 °F, 1/2" NPT-Male, 2.5" Stem, 0.250" Stem Diam.
Manufacturer: Noshok Inc
Mfg Product Code: 820-1-1U-8--50/200C-48-025-2
Weight: 0.5 lb(s)
Bottom Connection, ≤ 0.22% Full Scale Accuracy (Best Fit Straight Line (BFSL)), 4-20 mA, Upscale Burnout, 1/2" National Pipe Thread (NPT), M12 x 1 Connection, 2.5" Stem, 1/4" Dia Digital Temp Indicator
- Large 4-digit LED display
- Field re-programmable with optional PC interface module and software
- Software includes a security feature to prevent accidental re-programming
- 4 mA to 20 mA programmable linearized signal output
Applications:
- Replacement for bimetal, liquid bulb and glass thermometers
- Pharmaceutical
- Food preparation
- Utilities and municipal refineries
- Chemical and petrochemical plants
- Paper mills
- Hydraulics
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
820 Series Digital Temperature Indicator, 50 to 200 °F, 1/2" NPT-Male, 2.5" Stem, 0.250" Stem Diam.
Bottom Connection, ≤ 0.22% Full Scale Accuracy (Best Fit Straight Line (BFSL)), 4-20 mA, Upscale Burnout, 1/2" National Pipe Thread (NPT), M12 x 1 Connection, 2.5" Stem, 1/4" Dia Digital Temp Indicator
Measurement Maximum:200.0
Process Connection Type:NPT-Male
Stem Length:2.5 in. (63.5 mm)
Min Operating Temperature:50 °F
Product Unit of Measure:°F
Max Operating Temperature:200 °F
Process Connection Size:2-1/2"
Process Connection Location:Bottom, Bottom
Accuracy:≤0.22% full scale
Case Material:316 SS
Measurement Minimum:50
Output Communication Protocol:4-20 mA, 3-wire
Input Voltage:9-36VDC
Ingress Protection:IP65
Stem Diameter:0.250 in (6.35 mm)
Electrical Connector Type:M12 x 1 (5-pin)
Burnout:Upscale
NEMA / UL:NEMA 4
Specifications
| Measurement Maximum | 200.0 |
| Process Connection Type | NPT-Male |
| Stem Length | 2.5 in. (63.5 mm) |
| Min Operating Temperature | 50 °F |
| Product Unit of Measure | °F |
| Max Operating Temperature | 200 °F |
| Process Connection Size | 2-1/2" |
| Process Connection Location | Bottom, Bottom |
| Accuracy | ≤0.22% full scale |
| Case Material | 316 SS |
| Measurement Minimum | 50 |
| Output Communication Protocol | 4-20 mA, 3-wire |
| Input Voltage | 9-36VDC |
| Ingress Protection | IP65 |
| Stem Diameter | 0.250 in (6.35 mm) |
| Electrical Connector Type | M12 x 1 (5-pin) |
| Burnout | Upscale |
| NEMA / UL | NEMA 4 |
