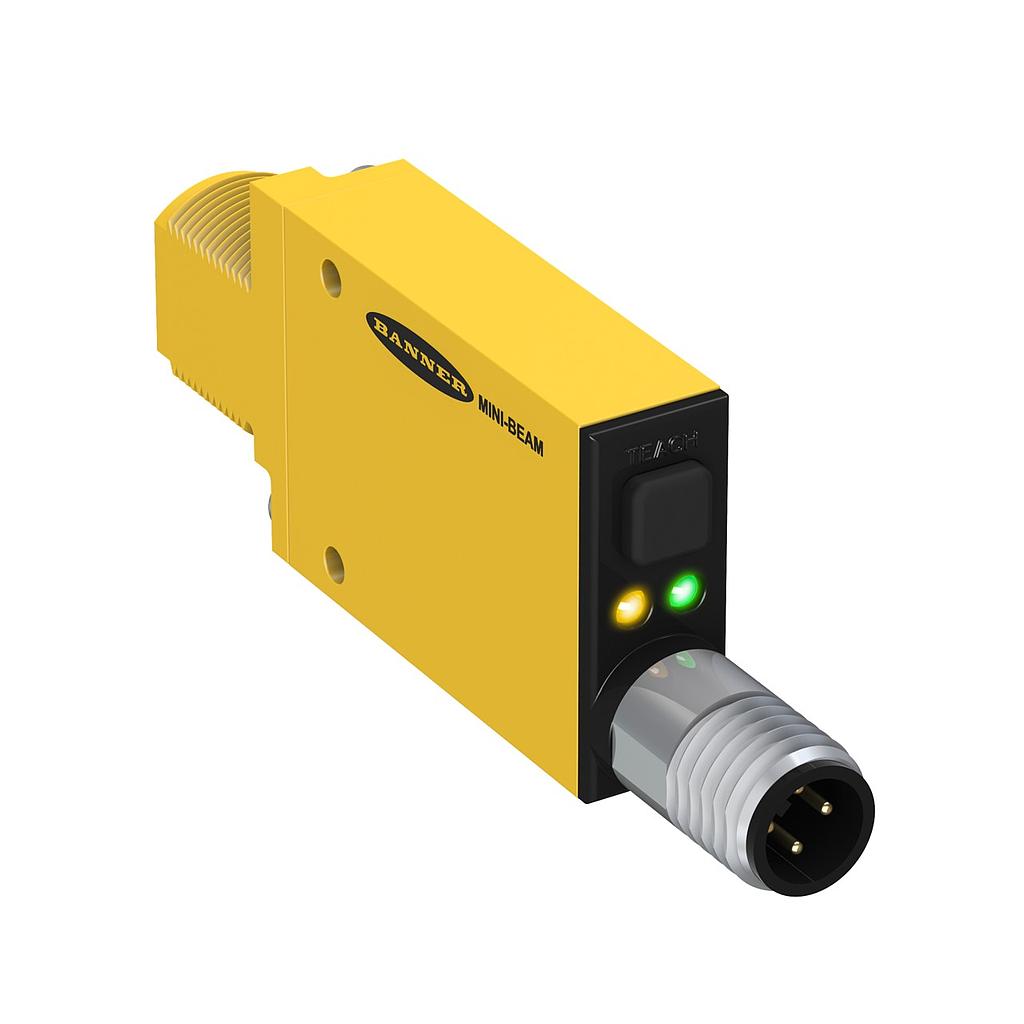

MINIBM W/GRN LED, SME312CV2GQD
SME312CV2GQD MINIBM W/GRN LED
Brand:Banner
Manufacturer Product Family:MINI-BEAM EXPERT
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:70 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:1000 ms
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):100
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:650
Housing Style:Rectangular w/M18 Mount
Max Sensing Distance:43 mm
Sensing Mode (Detailed):Convergent
Sensing Mode (General):Proximity
Max Relative Humidity:90% @ 50 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M12
Feature: Chemical Resistant:No
Feature: Water Detection:No
Number of Pins:5
Output Response Time:0.5 ms
Operation:Light/Dark Operate
Adjustments:Teach Button
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:Yes
Input/Output:Discrete
Barrel Diameter:18 mm
Feature: Remote Teach:Yes
Feature: Intrinsically Safe:No
Connection Type:Integral QD, Integral QD
Country of Origin:US
NEMA / UL:NEMA 1/2/3/3S/4/4X/6/12/13, NEMA 1/2/3/3S/4/4X/6/12/13
Indicator Type:LED
Specifications
| Brand | Banner |
| Manufacturer Product Family | MINI-BEAM EXPERT |
| Measurement Maximum | 0 |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 1000 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Repeatability (µs) | 100 |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 650 |
| Housing Style | Rectangular w/M18 Mount |
| Max Sensing Distance | 43 mm |
| Sensing Mode (Detailed) | Convergent |
| Sensing Mode (General) | Proximity |
| Max Relative Humidity | 90% @ 50 °C |
| Housing Material_ | Thermoplastic |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No |
| Quick Disconnect Type | M12 |
| Feature: Chemical Resistant | No |
| Feature: Water Detection | No |
| Number of Pins | 5 |
| Output Response Time | 0.5 ms |
| Operation | Light/Dark Operate |
| Adjustments | Teach Button |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | Yes |
| Input/Output | Discrete |
| Barrel Diameter | 18 mm |
| Feature: Remote Teach | Yes |
| Feature: Intrinsically Safe | No |
| Connection Type | Integral QD, Integral QD |
| Country of Origin | US |
| NEMA / UL | NEMA 1/2/3/3S/4/4X/6/12/13, NEMA 1/2/3/3S/4/4X/6/12/13 |
| Indicator Type | LED |
