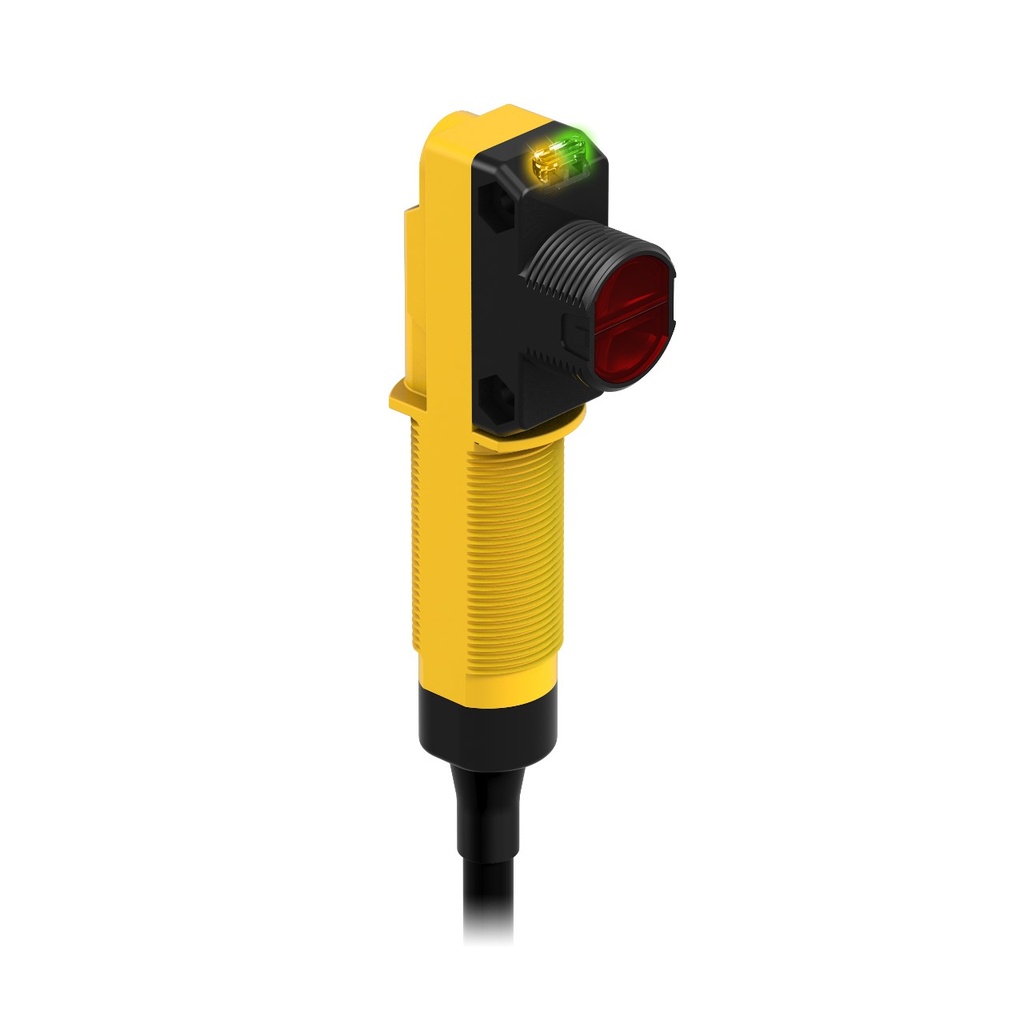

WORLD-BEAM QS18 Series: Polarized Retro, QS18RNWLPC1
Manufacturer: Banner Engineering Corp
Mfg Product Code: 81344
Weight: 2.0 lb(s)
WORLD-BEAM QS18 Series: Polarized Retro
Features:
- WORLD-BEAM QS18 Series: Polarized Retro
- Range: 3.5 m
- Input: 20-270 V ac/dc
- Output: Dark Operate Solid State N-MOSFET
- 2 m (6.5 ft) Cable
WORLD-BEAM QS18 Series: Polarized Retro, QS18RNWLPC1
WORLD-BEAM QS18 Series: Polarized Retro
Measurement Maximum:0
Min Operating Temperature:-25 °C
Max Operating Temperature:70 if < 140V, 55 if > 140V °C
Lens Material:PMMA
Power Supply:20-270 VAC/VDC
Delay at Power-Up:100 ms DC / 300 ms AC
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):1500
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:630
Housing Style:Rectangular w/M18 Mount
Max Sensing Distance:3500 mm
Sensing Mode (Detailed):Polarized
Sensing Mode (General):Retroreflective
Max Relative Humidity:95% @ 55 °C, 95% @ 55 °C
Housing Material_:ABS
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:No
Feature: Audible:No
Feature: Chemical Resistant:No
Feature: Water Detection:No
Number of Pins:3
Output Response Time:8.3 ms
Operation:Dark Operate
Adjustments:Potentiometer
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:No
Input/Output:Discrete
Barrel Diameter:18 mm
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Cable
Country of Origin:US
NEMA / UL:NEMA 6
Cord/Cable Length:2 m
Indicator Type:LED
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 70 if < 140V, 55 if > 140V °C |
| Lens Material | PMMA |
| Power Supply | 20-270 VAC/VDC |
| Delay at Power-Up | 100 ms DC / 300 ms AC |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Repeatability (µs) | 1500 |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 630 |
| Housing Style | Rectangular w/M18 Mount |
| Max Sensing Distance | 3500 mm |
| Sensing Mode (Detailed) | Polarized |
| Sensing Mode (General) | Retroreflective |
| Max Relative Humidity | 95% @ 55 °C, 95% @ 55 °C |
| Housing Material_ | ABS |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | No |
| Feature: Water Detection | No |
| Number of Pins | 3 |
| Output Response Time | 8.3 ms |
| Operation | Dark Operate |
| Adjustments | Potentiometer |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | No |
| Input/Output | Discrete |
| Barrel Diameter | 18 mm |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Cable |
| Country of Origin | US |
| NEMA / UL | NEMA 6 |
| Cord/Cable Length | 2 m |
| Indicator Type | LED |
