Representative photo. Please check item description for details.

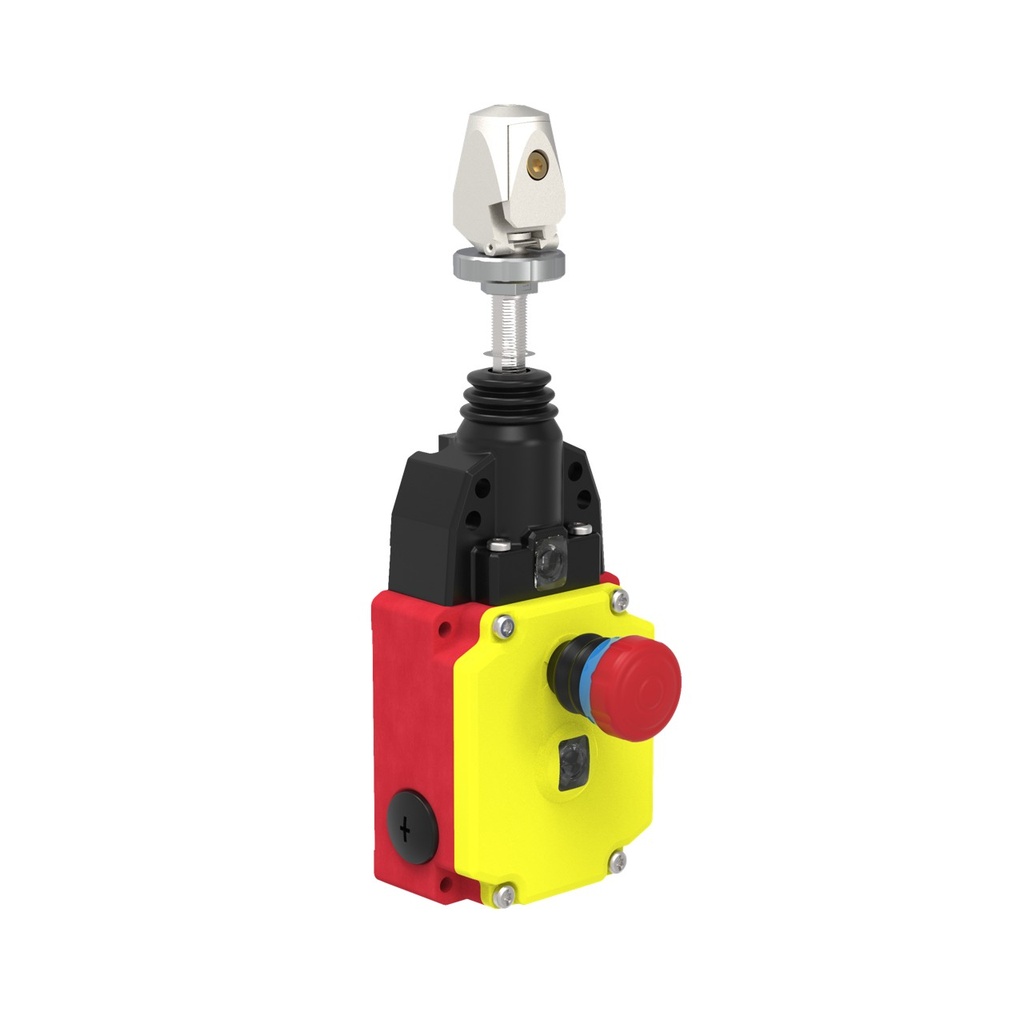

Heavy-Duty Emergency Stop Rope Pull, RP-RM83F-38LT-812249
Manufacturer: Banner Engineering Corp
Mfg Product Code: 812249
Weight: 2.68 lb(s)
On Hand: 0
Features:
- Heavy-Duty Emergency Stop Rope Pull; Built-In Turnbuckle; 38 m Max Range; Integral E-stop Button ; Latch Actuation; Installed SI-PL3T-R on CH1 side
Heavy-Duty Emergency Stop Rope Pull, RP-RM83F-38LT-812249
Actuation:Latch
Min Operating Temperature:-30 °C
Max Operating Temperature:80 °C
Ingress Protection:IP67
Housing Style:Limit Switch
Device Type:Rope Pull w/E-Stop Button
Housing Material_:Aluminum Alloy Die-Cast
Physical Dimensions:282 x 120 x 88 mm
Feature: Quick Disconnect:No
Contact Quantity:2 NO, 2 NC
Actuator/Button Material:Zinc Alloy Die-Cast
Contact Rating:10 A @ 110 VAC; 6 A @ 24 VDC
Feature: Illuminated:Yes
Feature: Lockable:No
Illumination Type:Light Added
Attachment:Turnbuckle
Connection Type:Wiring Chamber
Button Diameter:33 mm
Feature: Button Shroud:No
Max Cable Length:37.5 m
Feature: Actuation:Latch
Specifications
| Valve Features | |
|---|---|
| Actuation | Latch |
| Uncategorized | |
|---|---|
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 80 °C |
| Ingress Protection | IP67 |
| Housing Style | Limit Switch |
| Device Type | Rope Pull w/E-Stop Button |
| Housing Material_ | Aluminum Alloy Die-Cast |
| Physical Dimensions | 282 x 120 x 88 mm |
| Feature: Quick Disconnect | No |
| Contact Quantity | 2 NO, 2 NC |
| Actuator/Button Material | Zinc Alloy Die-Cast |
| Contact Rating | 10 A @ 110 VAC; 6 A @ 24 VDC |
| Feature: Illuminated | Yes |
| Feature: Lockable | No |
| Illumination Type | Light Added |
| Attachment | Turnbuckle |
| Connection Type | Wiring Chamber |
| Button Diameter | 33 mm |
| Feature: Button Shroud | No |
| Max Cable Length | 37.5 m |
| Feature: Actuation | Latch |
