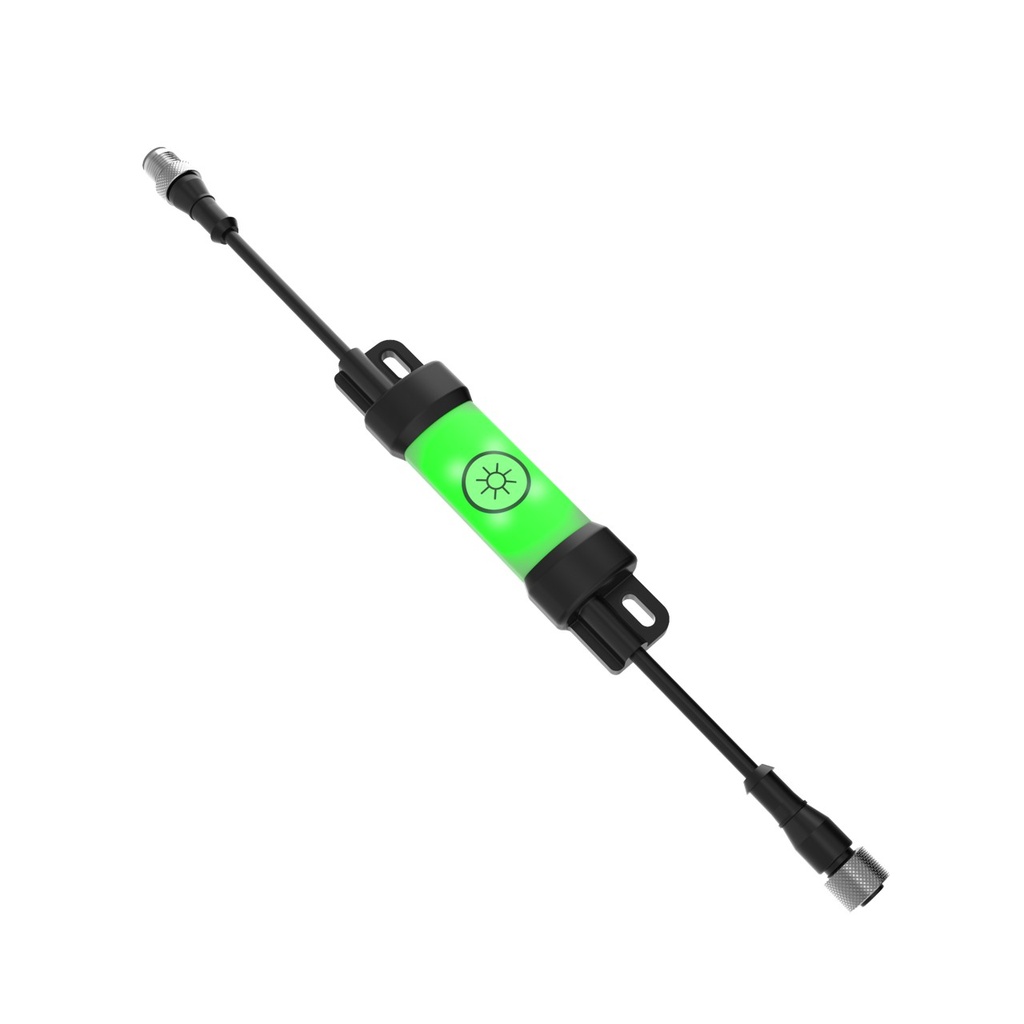

LC15T Light Controller, LC15T-127AL2RGQP
Manufacturer: Banner Engineering Corp
Mfg Product Code: 809824
Weight: 0.5 lb(s)
LC15T Light Controller
Features:
- LC15T Light Controller
- 2-Color Touch Sensor
- Voltage: 10-30 V dc
- 4 Amps
- Environmental Rating: IP66, IP67
- Colors: Red Green
- ON/OFF
- Euro 4-Pin Male-Female 150 mm (6 in) PVC Pigtails
LC15T Light Controller, LC15T-127AL2RGQP
LC15T Light Controller
Actuation:Yes
Brand:Banner
Power:DC
Feature: Display:No
Measurement Maximum:0
Max Current Color:22 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:60 °C
Measurement Minimum:0
Ingress Protection:IP66/67
Housing Style:Inline
Housing Material_:Polycarbonate
Color Option 3:Green
Supply Voltage:12-30 VDC
Feature: Quick Disconnect:Yes
Lumens Color 1:1.3
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Red
Color 1 - Wavelength/Color Temp/Coordinates:620 nm
Housing Color:Black
Multi-Color Device:Single Color On
Quick Disconnect Type:M12
Number of Colors / Segments:3
Color 3 - Wavelength/Color Temp/Coordinates:522 nm
Lumens Color 2:0.9
Lumens Color 3:2.5
Number of Input Pins/Conductors:4
Input Type:PNP
Mounting Thread:No Thread
Storage Temp:-40 to 70 °C
Secondary Material:Polyamide
Output:PNP
Operation:Normally Open
Illumination Switch Function:O=OFF; I=ON
Feature: Illumination:Yes
Activation Function:Capacitive Touch
Connection Type:Pigtail QD
Specifications
| Valve Features | |
|---|---|
| Actuation | Yes |
| Uncategorized | |
|---|---|
| Brand | Banner |
| Power | DC |
| Feature: Display | No |
| Measurement Maximum | 0 |
| Max Current Color | 22 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Measurement Minimum | 0 |
| Ingress Protection | IP66/67 |
| Housing Style | Inline |
| Housing Material_ | Polycarbonate |
| Color Option 3 | Green |
| Supply Voltage | 12-30 VDC |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 1.3 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Red |
| Color 1 - Wavelength/Color Temp/Coordinates | 620 nm |
| Housing Color | Black |
| Multi-Color Device | Single Color On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 3 |
| Color 3 - Wavelength/Color Temp/Coordinates | 522 nm |
| Lumens Color 2 | 0.9 |
| Lumens Color 3 | 2.5 |
| Number of Input Pins/Conductors | 4 |
| Input Type | PNP |
| Mounting Thread | No Thread |
| Storage Temp | -40 to 70 °C |
| Secondary Material | Polyamide |
| Output | PNP |
| Operation | Normally Open |
| Illumination Switch Function | O=OFF; I=ON |
| Feature: Illumination | Yes |
| Activation Function | Capacitive Touch |
| Connection Type | Pigtail QD |
