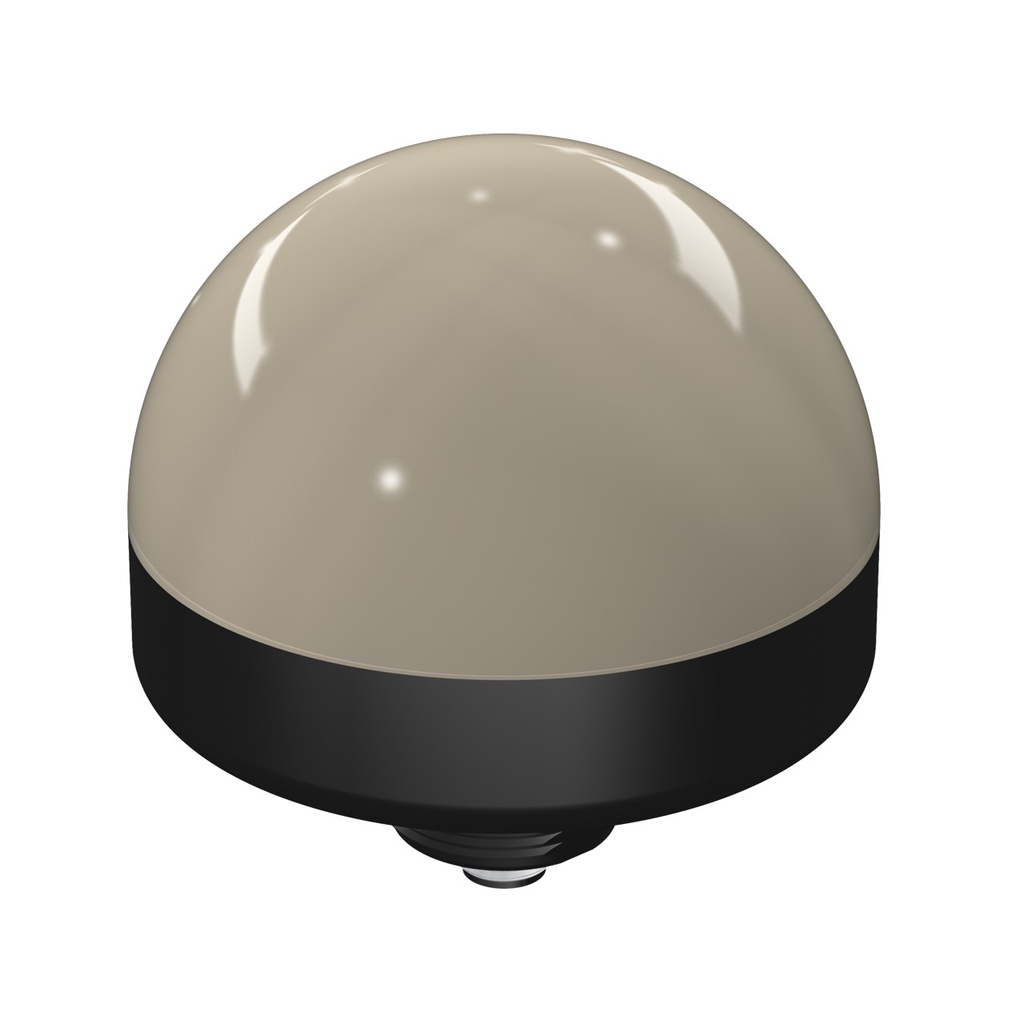

K90 Series Ez-Light, K90LORPQ
Power:DC
Feature: Display:No
Max Current Color:475 mA
Min Operating Temperature:-40 °C, -40 °C
Max Operating Temperature:50 °C
Ingress Protection:IP67
Housing Style:Base Mount - Dome Window
Housing Material_:Polycarbonate
Feature: Indication:Yes
Supply Voltage:12-30 VDC
Color Option 2:Red
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Orange
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Animation Option 1:Solid On
Quick Disconnect Type:M12
Number of Colors / Segments:2
Lumens Color 2:65
Color 2 - Wavelength/Color Temp/Coordinates:625 nm
Number of Input Pins/Conductors:5
Input Type:PNP
Mounting Thread:M30 x 1.5
Max Input Response Time (ms):75 ms
Wire Selectable Function:Flashing
Connection Type:Integral QD, Integral QD, Integral QD
NEMA / UL:UL 4X/13
Specifications
| Power | DC |
| Feature: Display | No |
| Max Current Color | 475 mA |
| Min Operating Temperature | -40 °C, -40 °C |
| Max Operating Temperature | 50 °C |
| Ingress Protection | IP67 |
| Housing Style | Base Mount - Dome Window |
| Housing Material_ | Polycarbonate |
| Feature: Indication | Yes |
| Supply Voltage | 12-30 VDC |
| Color Option 2 | Red |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Orange |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Single Color On |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 2 |
| Lumens Color 2 | 65 |
| Color 2 - Wavelength/Color Temp/Coordinates | 625 nm |
| Number of Input Pins/Conductors | 5 |
| Input Type | PNP |
| Mounting Thread | M30 x 1.5 |
| Max Input Response Time (ms) | 75 ms |
| Wire Selectable Function | Flashing |
| Connection Type | Integral QD, Integral QD, Integral QD |
| NEMA / UL | UL 4X/13 |
