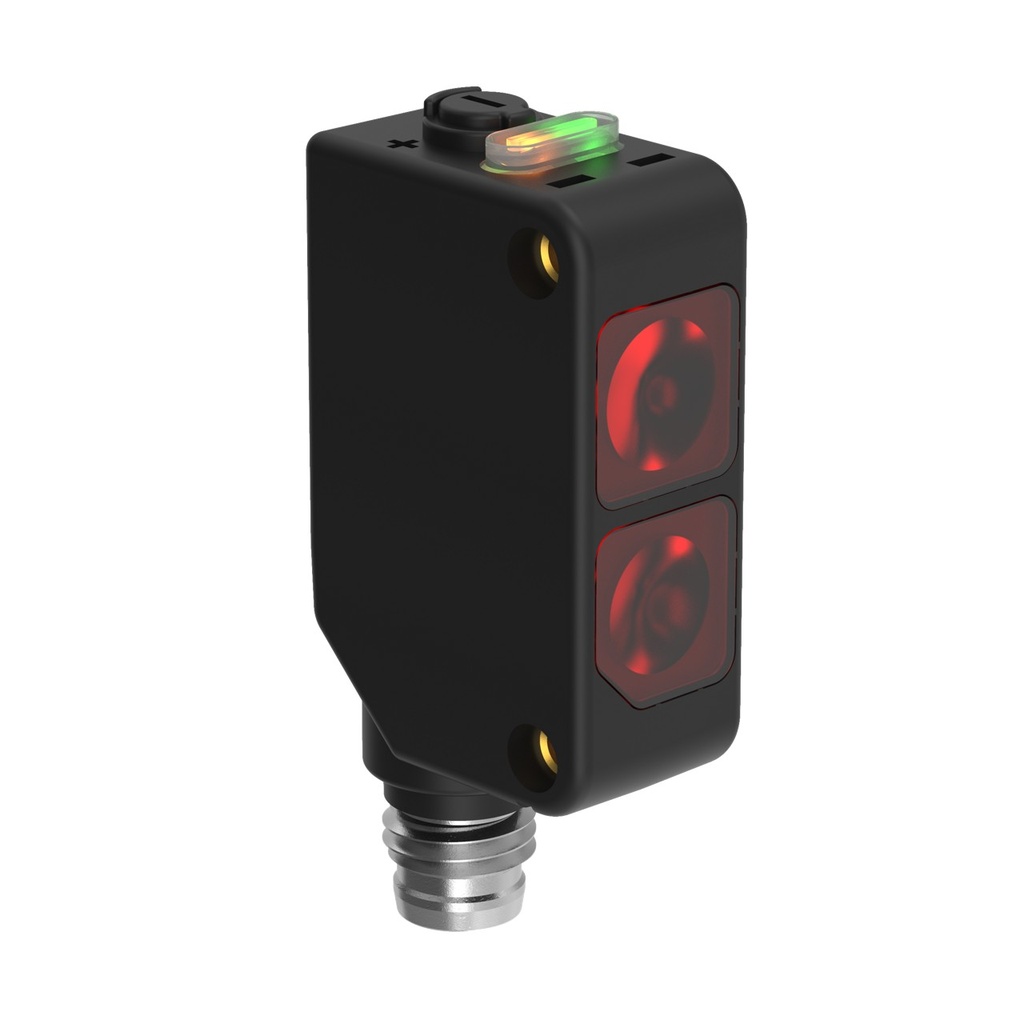

World-Beam Q20 Series: Small Spot Diffuse (Red), Q20PDVSQ7
Manufacturer: Banner Engineering Corp
Mfg Product Code: 807432
Weight: 0.05 lb(s)
Features:
- WORLD-BEAM Q20 Series: Small Spot Diffuse (Red); Range: 250 mm; Input 10-30 V dc; Output: Complementary Solid State PNP; Pico-style Integral Quick Disconnect
World-Beam Q20 Series: Small Spot Diffuse (Red), Q20PDVSQ7
Min Operating Temperature:-20 °C
Max Operating Temperature:60 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Ingress Protection:IP67
Repeatability (µs):90
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:660
Housing Style:Rectangular
Max Sensing Distance:250 mm
Sensing Mode (Detailed):Diffuse
Sensing Mode (General):Proximity
Max Relative Humidity:95% @ 50 °C
Housing Material_:ABS
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No, No
Feature: Quick Disconnect:Yes
Feature: Audible:No, No
Quick Disconnect Type:M8
Feature: Chemical Resistant:No
Feature: Water Detection:No
Number of Pins:4
Output Response Time:0.85 ms
Operation:Light/Dark Operate
Adjustments:Potentiometer
Feature: Timing (Hold/Delay):No
Small Visible Spot:LED
Feature: Encapsulated:No
Input/Output:Discrete
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Integral QD
Country of Origin:CN
NEMA / UL:NEMA 6, NEMA 6
Indicator Type:LED
Specifications
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 100 ms |
| Ingress Protection | IP67 |
| Repeatability (µs) | 90 |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 660 |
| Housing Style | Rectangular |
| Max Sensing Distance | 250 mm |
| Sensing Mode (Detailed) | Diffuse |
| Sensing Mode (General) | Proximity |
| Max Relative Humidity | 95% @ 50 °C |
| Housing Material_ | ABS |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No, No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No, No |
| Quick Disconnect Type | M8 |
| Feature: Chemical Resistant | No |
| Feature: Water Detection | No |
| Number of Pins | 4 |
| Output Response Time | 0.85 ms |
| Operation | Light/Dark Operate |
| Adjustments | Potentiometer |
| Feature: Timing (Hold/Delay) | No |
| Small Visible Spot | LED |
| Feature: Encapsulated | No |
| Input/Output | Discrete |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Integral QD |
| Country of Origin | CN |
| NEMA / UL | NEMA 6, NEMA 6 |
| Indicator Type | LED |
