Representative photo. Please check item description for details.

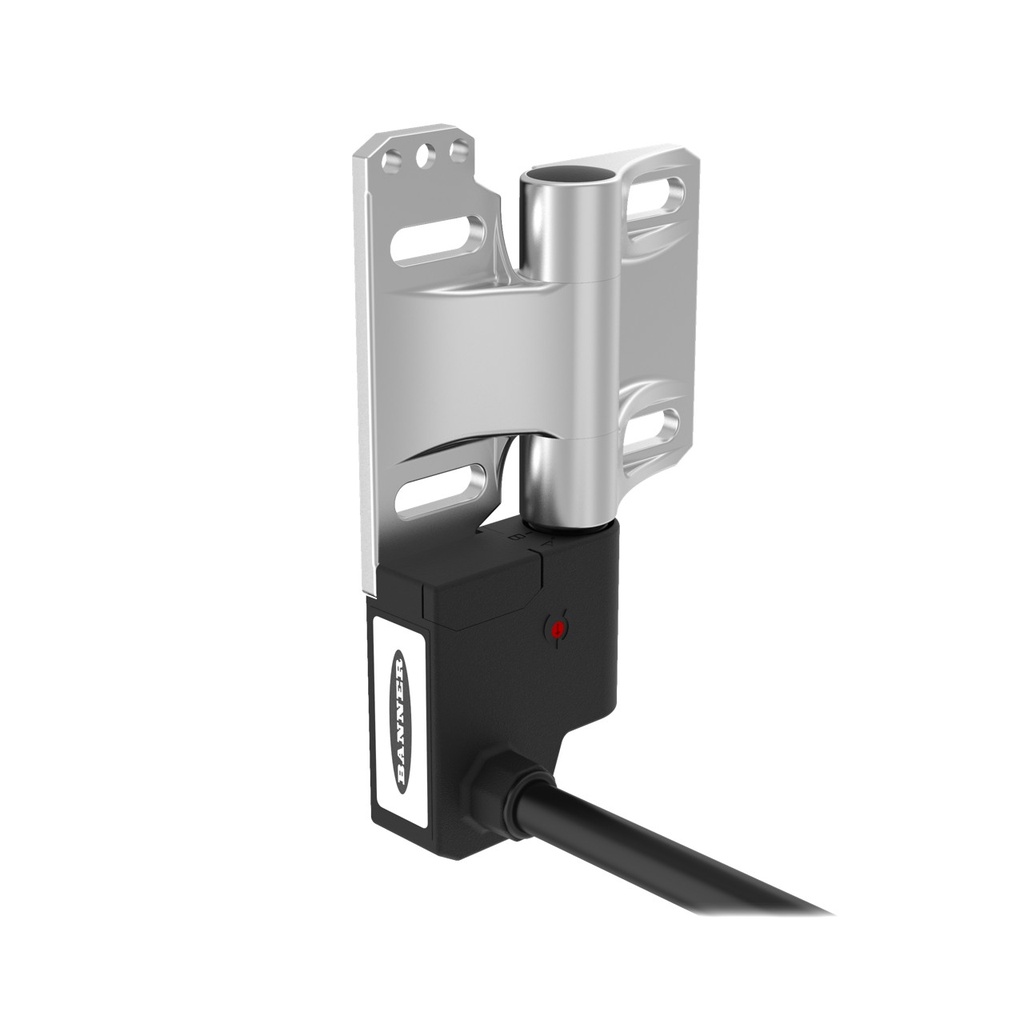

Hinge Safety Interlock Switch-Stainless Steet, SI-HG63F5MLR-W
Manufacturer: Banner Engineering Corp
Mfg Product Code: 807130
Weight: 2.07 lb(s)
On Hand: 0
Features:
- Hinge Safety Interlock Switch-Stainless Steet; Right-angle Cable; Switch Mounted Left Side w/ Switch Body Down; 2NC/1NO; 6-wire 5 m Cable; IP69
Hinge Safety Interlock Switch-Stainless Steet, SI-HG63F5MLR-W
Brand:Banner
Min Operating Temperature:-25 °C
Max Operating Temperature:70 °C
Ingress Protection:IP69
Device Type:Hinge
Housing Material_:Stainless Steel/Thermoplastic
Feature: Quick Disconnect:No
Number of Pins:6
PL Rating:e
SISTEMA:B10d = 2 million
SIL Rating:SIL CL 3
Safety Category Rating:4
Feature: Lockable:No
Feature: Auxiliary Output:No
Device Shape:Hinge
Switch Style:Contact
Coding Level/Tamper Resistance:Uncoded
Actuator (Safety) Contacts:2 NC/1 NO
Safety Category:Cat 4
Switch Point Positioning:Re-Positionable
Connection Type:Cable
Country of Origin:DE
Feature: In-Series Diagnostics:No
Mechanical Life:1 mil
Specifications
| Brand | Banner |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 70 °C |
| Ingress Protection | IP69 |
| Device Type | Hinge |
| Housing Material_ | Stainless Steel/Thermoplastic |
| Feature: Quick Disconnect | No |
| Number of Pins | 6 |
| PL Rating | e |
| SISTEMA | B10d = 2 million |
| SIL Rating | SIL CL 3 |
| Safety Category Rating | 4 |
| Feature: Lockable | No |
| Feature: Auxiliary Output | No |
| Device Shape | Hinge |
| Switch Style | Contact |
| Coding Level/Tamper Resistance | Uncoded |
| Actuator (Safety) Contacts | 2 NC/1 NO |
| Safety Category | Cat 4 |
| Switch Point Positioning | Re-Positionable |
| Connection Type | Cable |
| Country of Origin | DE |
| Feature: In-Series Diagnostics | No |
| Mechanical Life | 1 mil |
