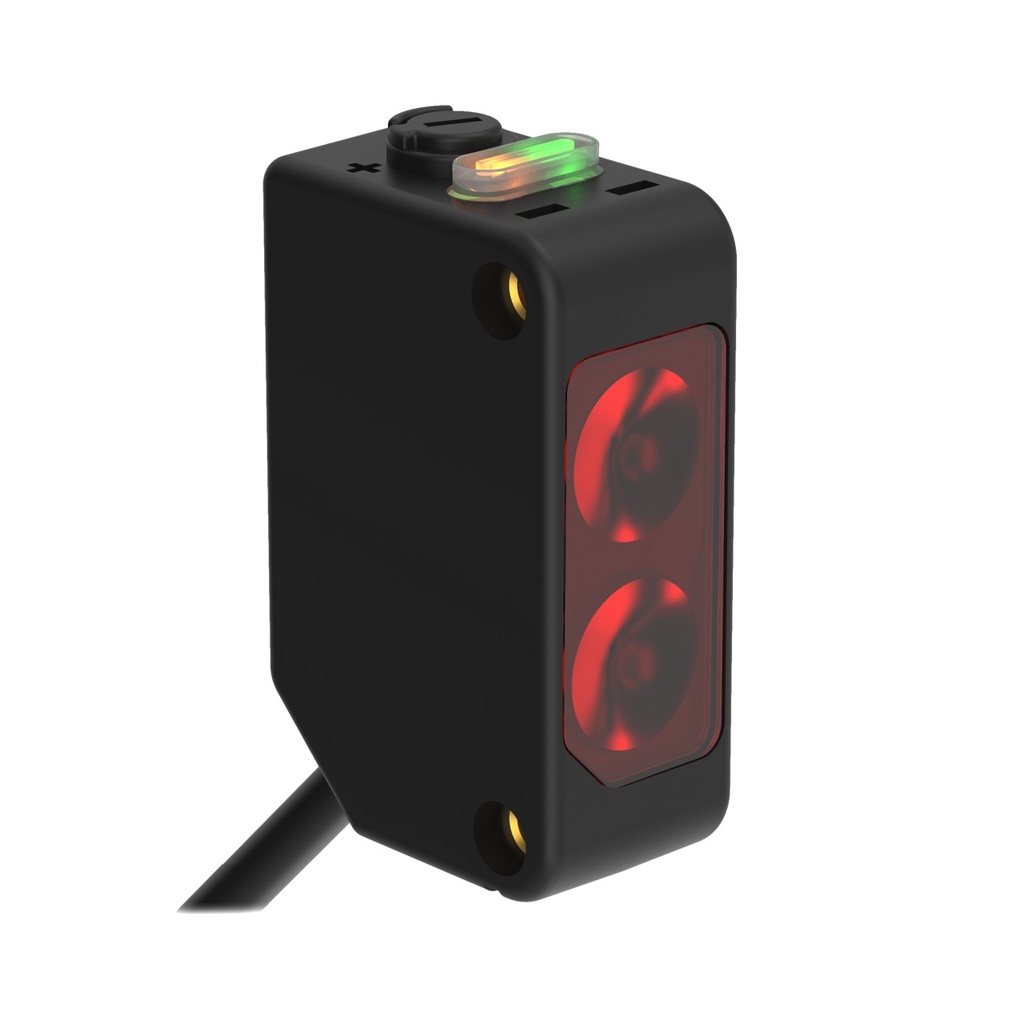

WORLD-BEAM Q20 Series: Adjustable Field, Q20NAF200 W/30
Manufacturer: Banner Engineering Corp
Mfg Product Code: 805898
Weight: 0.33 lb(s)
WORLD-BEAM Q20 Series: Adjustable Field
Features:
- WORLD-BEAM Q20 Series: Adjustable Field
- Range: 200 mm
- Input: 10-30 V dc
- Outputs: Complementary NPN
- 9 m (30 ft) Cable
WORLD-BEAM Q20 Series: Adjustable Field, Q20NAF200 W/30
WORLD-BEAM Q20 Series: Adjustable Field
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:60 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:200 ms
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):130
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:632
Housing Style:Rectangular
Max Sensing Distance:200 mm
Sensing Mode (Detailed):Background Suppression (Adjustable)
Sensing Mode (General):Proximity
Max Relative Humidity:95% @ 50 °C, 95% @ 50 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:No
Feature: Audible:No
Feature: Chemical Resistant:No
Feature: Water Detection:No
Number of Pins:4
Output Response Time:2.8 ms
Operation:Light/Dark Operate
Adjustments:Potentiometer
Feature: Timing (Hold/Delay):No
Small Visible Spot:LED
Feature: Encapsulated:No
Input/Output:Discrete
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Cable
Country of Origin:CN
NEMA / UL:NEMA 6
Cord/Cable Length:9 m
Indicator Type:LED
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 200 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Repeatability (µs) | 130 |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 632 |
| Housing Style | Rectangular |
| Max Sensing Distance | 200 mm |
| Sensing Mode (Detailed) | Background Suppression (Adjustable) |
| Sensing Mode (General) | Proximity |
| Max Relative Humidity | 95% @ 50 °C, 95% @ 50 °C |
| Housing Material_ | Thermoplastic |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | No |
| Feature: Water Detection | No |
| Number of Pins | 4 |
| Output Response Time | 2.8 ms |
| Operation | Light/Dark Operate |
| Adjustments | Potentiometer |
| Feature: Timing (Hold/Delay) | No |
| Small Visible Spot | LED |
| Feature: Encapsulated | No |
| Input/Output | Discrete |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Cable |
| Country of Origin | CN |
| NEMA / UL | NEMA 6 |
| Cord/Cable Length | 9 m |
| Indicator Type | LED |
