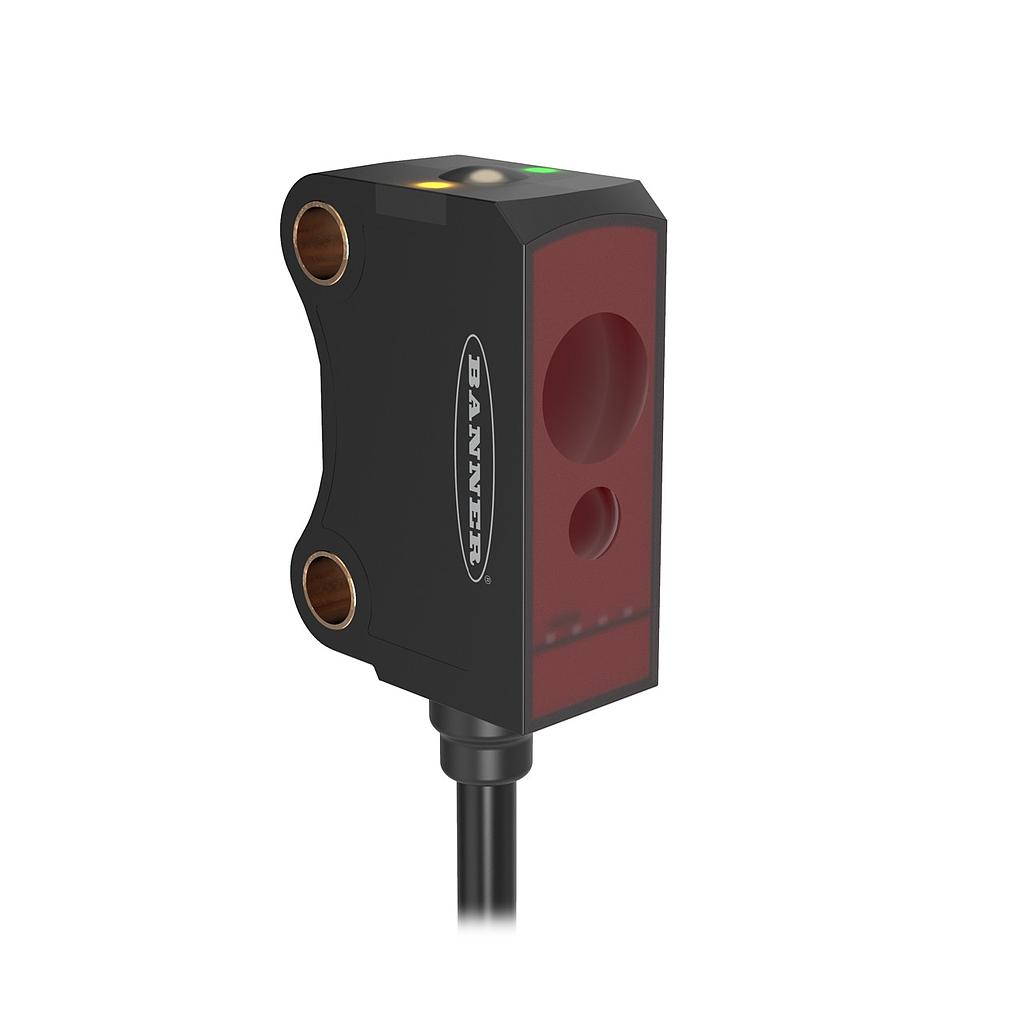

VS8 Series: Laser Polarized Retro Reflective, VS8EAPLLP
Manufacturer: Banner Engineering Corp
Mfg Product Code: 803431
Weight: 0.08 lb(s)
VS8 Series: Laser Polarized Retro Reflective
Features:
- VS8 Series: Laser Polarized Retro Reflective
- Range: 0.1 m to 2 m
- Input: 10-30 V dc
- Output: PNP
- 4-conductor 2 m Cable
VS8 Series: Laser Polarized Retro Reflective, VS8EAPLLP
VS8 Series: Laser Polarized Retro Reflective
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:50 °C
Lens Material:PMMA
Power Supply:10-30 VDC
Delay at Power-Up:300 ms
Measurement Minimum:0
Ingress Protection:IP67
Sensing Beam:Visible Red Laser
Sensing Beam Wavelength:655
Housing Style:Rectangular
Max Sensing Distance:2000 mm
Sensing Mode (Detailed):Polarized
Sensing Mode (General):Retroreflective
Housing Material_:PUR
Laser Classification:Class 1
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:No
Feature: Audible:No
Feature: Chemical Resistant:No
Feature: Water Detection:No
Number of Pins:4
Output Response Time:0.5 ms
Operation:Light/Dark Operate
Adjustments:Teach Button
Feature: Timing (Hold/Delay):No
Small Visible Spot:Laser
Feature: Encapsulated:No
Input/Output:Discrete
Feature: Remote Teach:Yes
Feature: Intrinsically Safe:No
Connection Type:Cable
Country of Origin:DE
Cord/Cable Length:2 m
Indicator Type:LED
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Lens Material | PMMA |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 300 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Sensing Beam | Visible Red Laser |
| Sensing Beam Wavelength | 655 |
| Housing Style | Rectangular |
| Max Sensing Distance | 2000 mm |
| Sensing Mode (Detailed) | Polarized |
| Sensing Mode (General) | Retroreflective |
| Housing Material_ | PUR |
| Laser Classification | Class 1 |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | No |
| Feature: Water Detection | No |
| Number of Pins | 4 |
| Output Response Time | 0.5 ms |
| Operation | Light/Dark Operate |
| Adjustments | Teach Button |
| Feature: Timing (Hold/Delay) | No |
| Small Visible Spot | Laser |
| Feature: Encapsulated | No |
| Input/Output | Discrete |
| Feature: Remote Teach | Yes |
| Feature: Intrinsically Safe | No |
| Connection Type | Cable |
| Country of Origin | DE |
| Cord/Cable Length | 2 m |
| Indicator Type | LED |
