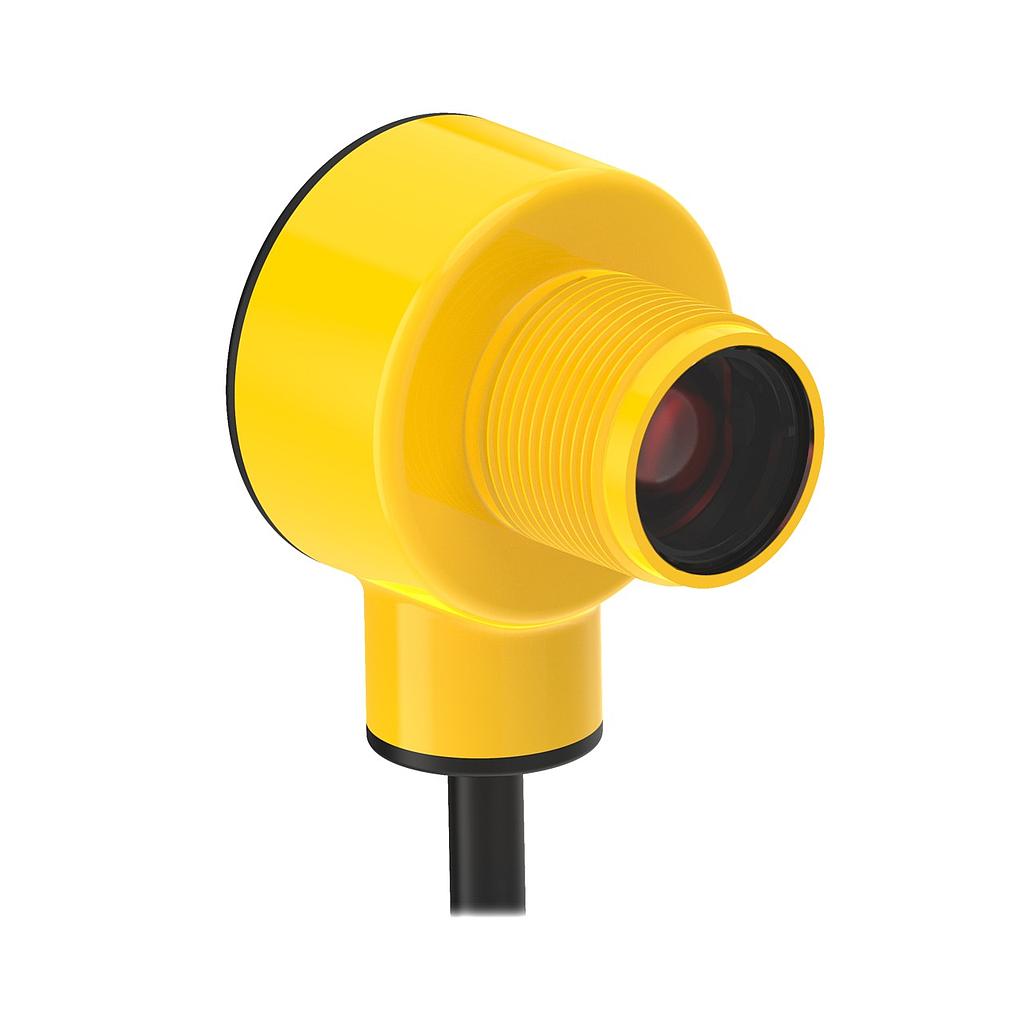

T18-2 Series: IR Fixed Field, T18-2VPFF100IR-2M
Manufacturer: Banner Engineering Corp
Mfg Product Code: 802704
Weight: 0.2 lb(s)
T18-2 Series: IR Fixed Field
Features:
- T18-2 Series: IR Fixed Field
- Range: 100 mm
- Input: 10-30 V dc
- Outputs: complementary PNP
- Connection: 4-conductor 2 m PVC Cable
T18-2 Series: IR Fixed Field, T18-2VPFF100IR-2M
T18-2 Series: IR Fixed Field
Brand:Banner
Manufacturer Product Family:T18-2
Measurement Maximum:0
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:500 ms
Measurement Minimum:0
Ingress Protection:IP67/68/69
Repeatability (µs):100
Sensing Beam:Infrared LED
Sensing Beam Wavelength:870
Housing Style:Barrel
Max Sensing Distance:100 mm
Sensing Mode (Detailed):Background Suppression (Fixed)
Sensing Mode (General):Proximity
Max Relative Humidity:95% @ 50 °C
Housing Material_:Thermoplastic
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:No
Feature: Audible:No
Feature: Chemical Resistant:Yes, Yes
Feature: Ecolab Certified:Yes
Feature: Water Detection:No
Number of Pins:4
Output Response Time:1.5 ms
Operation:Light/Dark Operate
Adjustments:N/A
Feature: Timing (Hold/Delay):No
Small Visible Spot:LED
Feature: Encapsulated:Yes
Input/Output:Discrete
Barrel Diameter:18 mm
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Cable
Country of Origin:US
NEMA / UL:NEMA 6P
Cord/Cable Length:2 m
Indicator Type:Indicator LED
Specifications
| Brand | Banner |
| Manufacturer Product Family | T18-2 |
| Measurement Maximum | 0 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 500 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67/68/69 |
| Repeatability (µs) | 100 |
| Sensing Beam | Infrared LED |
| Sensing Beam Wavelength | 870 |
| Housing Style | Barrel |
| Max Sensing Distance | 100 mm |
| Sensing Mode (Detailed) | Background Suppression (Fixed) |
| Sensing Mode (General) | Proximity |
| Max Relative Humidity | 95% @ 50 °C |
| Housing Material_ | Thermoplastic |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | Yes, Yes |
| Feature: Ecolab Certified | Yes |
| Feature: Water Detection | No |
| Number of Pins | 4 |
| Output Response Time | 1.5 ms |
| Operation | Light/Dark Operate |
| Adjustments | N/A |
| Feature: Timing (Hold/Delay) | No |
| Small Visible Spot | LED |
| Feature: Encapsulated | Yes |
| Input/Output | Discrete |
| Barrel Diameter | 18 mm |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Cable |
| Country of Origin | US |
| NEMA / UL | NEMA 6P |
| Cord/Cable Length | 2 m |
| Indicator Type | Indicator LED |
