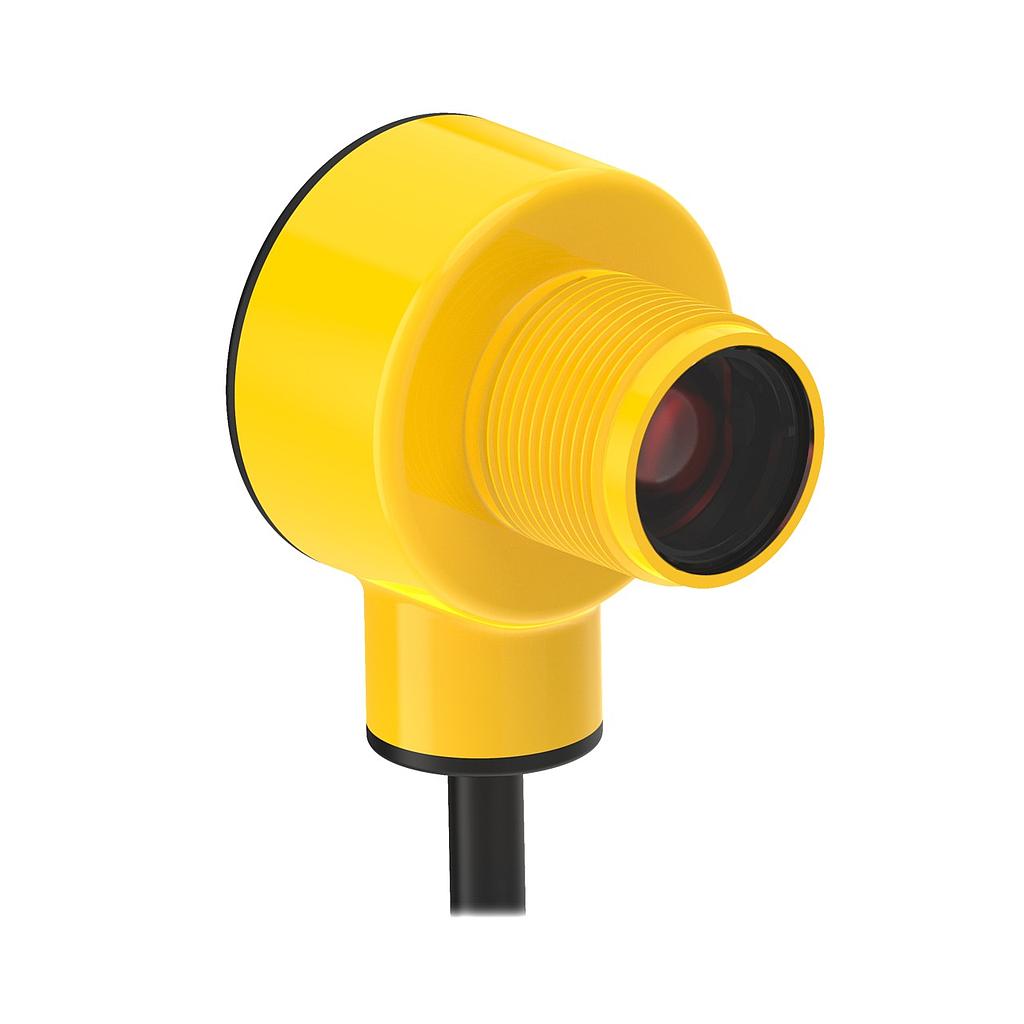

T18-2 Series: Emitter with Beam Inhibit Input, T18-2NAEJ-9M
Manufacturer: Banner Engineering Corp
Mfg Product Code: 802621
Weight: 0.75 lb(s)
T18-2 Series: Emitter with Beam Inhibit Input
Features:
- T18-2 Series: Emitter with Beam Inhibit Input
- Range: 25 m
- Input: 10-30 V dc
- Outputs: none
- Input: Beam Inhibit
- Connection: 3-conductor 9 m PVC Cable
T18-2 Series: Emitter with Beam Inhibit Input, T18-2NAEJ-9M
T18-2 Series: Emitter with Beam Inhibit Input
Measurement Maximum:0
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:500 ms
Measurement Minimum:0
Ingress Protection:IP67/68/69
Repeatability (µs):170
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:624
Housing Style:Barrel
Max Sensing Distance:25000 mm
Sensing Mode (Detailed):Emitter
Sensing Mode (General):Opposed
Max Relative Humidity:95% @ 50 °C
Housing Material_:Thermoplastic
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:No
Feature: Audible:No
Feature: Chemical Resistant:Yes, Yes
Feature: Ecolab Certified:Yes
Opposed Mode Emitter/Receiver:Emitter
Feature: Water Detection:No
Number of Pins:2
Adjustments:N/A
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:Yes
Barrel Diameter:18 mm
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Cable
Country of Origin:US
NEMA / UL:NEMA 6P
Cord/Cable Length:9 m
Indicator Type:Indicator LED
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 500 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67/68/69 |
| Repeatability (µs) | 170 |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 624 |
| Housing Style | Barrel |
| Max Sensing Distance | 25000 mm |
| Sensing Mode (Detailed) | Emitter |
| Sensing Mode (General) | Opposed |
| Max Relative Humidity | 95% @ 50 °C |
| Housing Material_ | Thermoplastic |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | Yes, Yes |
| Feature: Ecolab Certified | Yes |
| Opposed Mode Emitter/Receiver | Emitter |
| Feature: Water Detection | No |
| Number of Pins | 2 |
| Adjustments | N/A |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | Yes |
| Barrel Diameter | 18 mm |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Cable |
| Country of Origin | US |
| NEMA / UL | NEMA 6P |
| Cord/Cable Length | 9 m |
| Indicator Type | Indicator LED |
