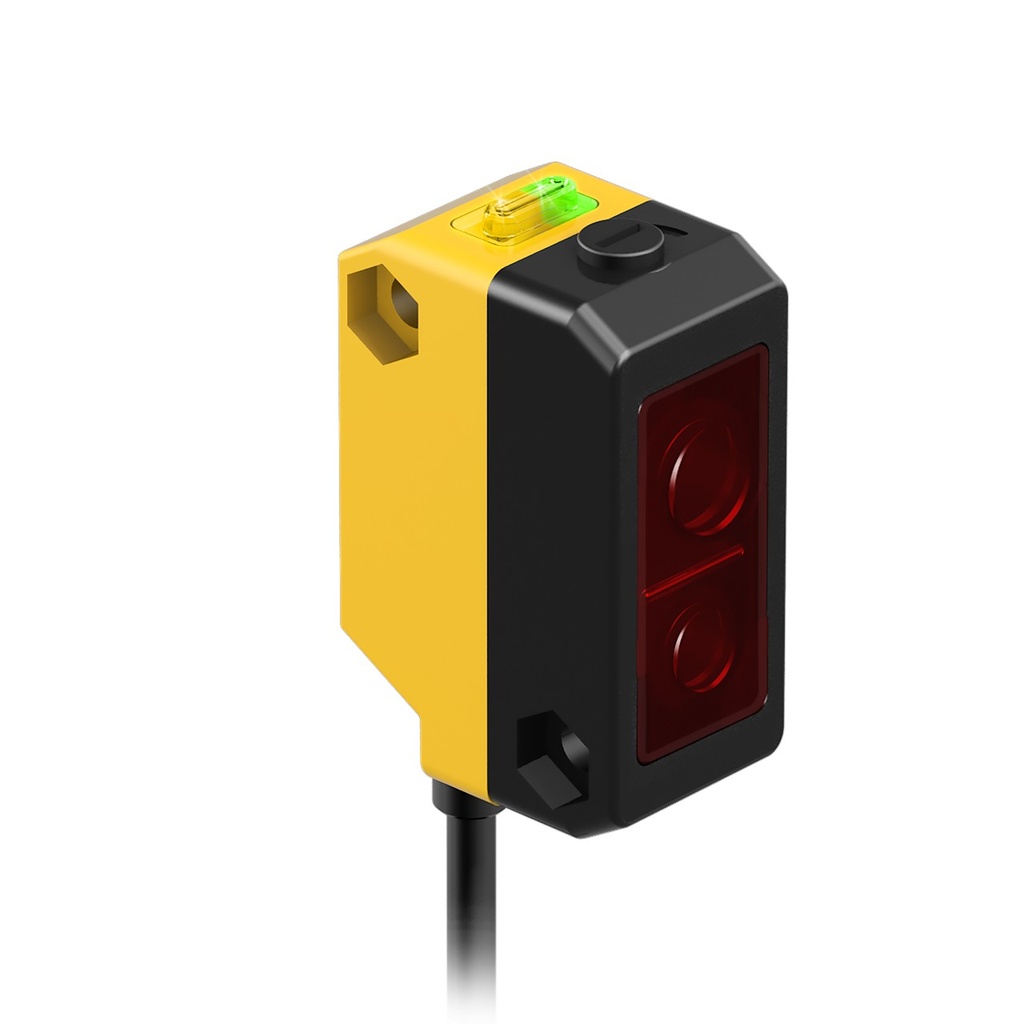

WORLD-BEAM: Adjustable Field, QS18VP6AF100Q5-801395
Manufacturer: Banner Engineering Corp
Mfg Product Code: 801395
Weight: 0.2 lb(s)
WORLD-BEAM: Adjustable Field
Features:
- WORLD-BEAM: Adjustable Field
- Range: 55 mm Non Adjustable
- Input:10-30 V dc
- Outputs: Complementary PNP
- Euro 150 mm (6 in) Pigtail QD Pigtail
WORLD-BEAM: Adjustable Field, QS18VP6AF100Q5-801395
WORLD-BEAM: Adjustable Field
Measurement Maximum:0
Max Operating Temperature:50 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:200 ms
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):175
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:640
Housing Style:Rectangular
Max Sensing Distance:55 mm
Sensing Mode (Detailed):Background Suppression (Adjustable)
Sensing Mode (General):Proximity
Max Relative Humidity:95% @ 50 °C
Housing Material_:ABS
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M12
Feature: Chemical Resistant:No
Feature: Water Detection:No
Number of Pins:4
Output Response Time:0.7 ms
Operation:Light/Dark Operate
Adjustments:Mechanical Screw
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:No
Input/Output:Discrete
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Pigtail QD
Country of Origin:CN
NEMA / UL:NEMA 6
Cord/Cable Length:0.15 m
Indicator Type:LED
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 50 °C |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 200 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Repeatability (µs) | 175 |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 640 |
| Housing Style | Rectangular |
| Max Sensing Distance | 55 mm |
| Sensing Mode (Detailed) | Background Suppression (Adjustable) |
| Sensing Mode (General) | Proximity |
| Max Relative Humidity | 95% @ 50 °C |
| Housing Material_ | ABS |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No |
| Quick Disconnect Type | M12 |
| Feature: Chemical Resistant | No |
| Feature: Water Detection | No |
| Number of Pins | 4 |
| Output Response Time | 0.7 ms |
| Operation | Light/Dark Operate |
| Adjustments | Mechanical Screw |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | No |
| Input/Output | Discrete |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Pigtail QD |
| Country of Origin | CN |
| NEMA / UL | NEMA 6 |
| Cord/Cable Length | 0.15 m |
| Indicator Type | LED |
