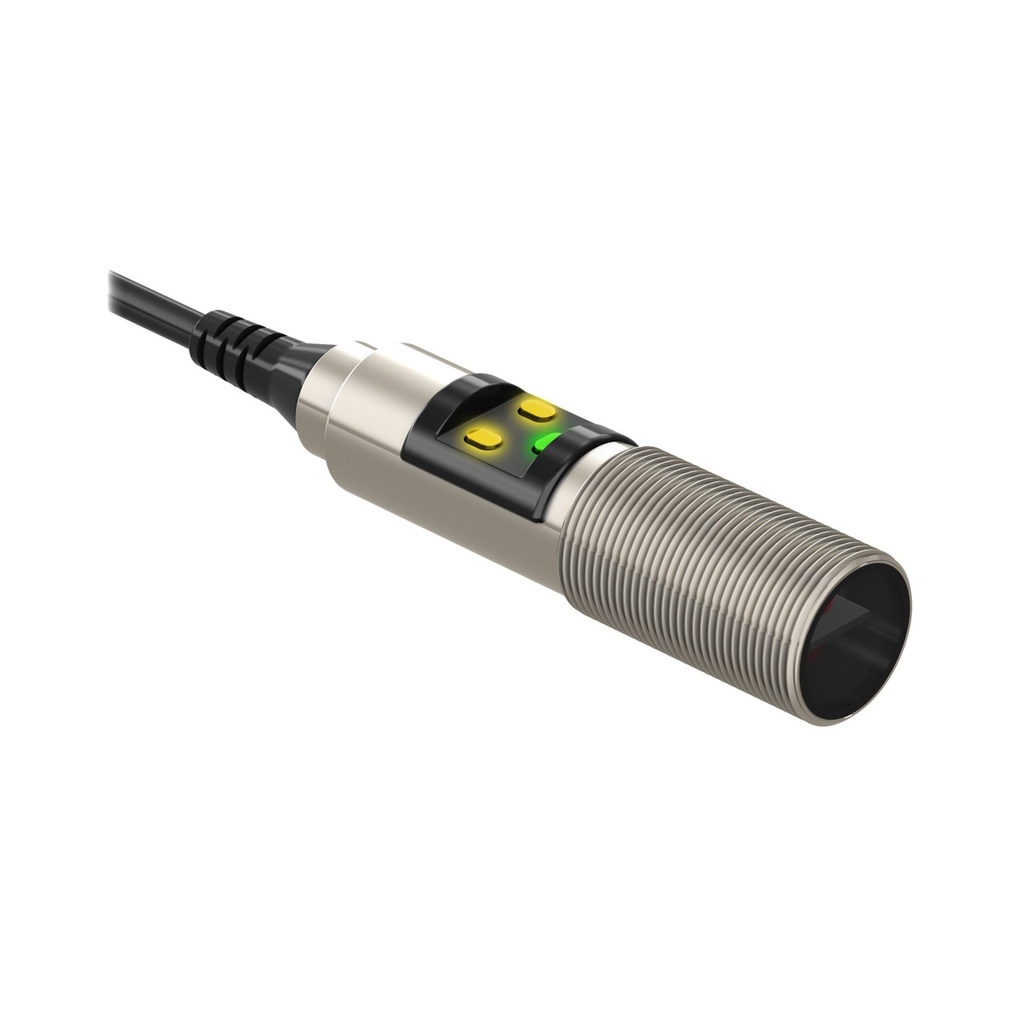

M18-4 Series: Stainless: Fixed Field , M18-4VNFF30-2M
Manufacturer: Banner Engineering Corp
Mfg Product Code: 800579
Weight: 0.25 lb(s)
M18-4 Series: Stainless: Fixed Field Range: 30 mm
Features:
- M18-4 Series: Stainless: Fixed Field
- Range: 30 mm
- Input 10-30 V dc
- Outputs: Complementary NPN
- Connection: 4-Conductor 2 m PVC Cable -
M18-4 Series: Stainless: Fixed Field , M18-4VNFF30-2M
M18-4 Series: Stainless: Fixed Field Range: 30 mm
Brand:Banner
Manufacturer Product Family:M18-3 M18-4
Measurement Maximum:0
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Measurement Minimum:0
Ingress Protection:IP67/69
Repeatability (µs):100
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:624
Housing Style:Barrel
Max Sensing Distance:30 mm
Sensing Mode (Detailed):Background Suppression (Fixed)
Sensing Mode (General):Proximity
Max Relative Humidity:95% @ 50 °C
Housing Material_:SS
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:No
Feature: Audible:No
Feature: Chemical Resistant:Yes, Yes
Feature: Water Detection:No
Number of Pins:4
Output Response Time:1.5 ms
Operation:Light/Dark Operate
Adjustments:N/A
Feature: Timing (Hold/Delay):No
Small Visible Spot:LED
Feature: Encapsulated:No
Input/Output:Discrete
Barrel Diameter:18 mm
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Cable, Cable
Country of Origin:CN
Cord/Cable Length:2 m
Feature: Health/Marginal Signal Output:Yes
Indicator Type:LED
Specifications
| Brand | Banner |
| Manufacturer Product Family | M18-3 M18-4 |
| Measurement Maximum | 0 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 100 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67/69 |
| Repeatability (µs) | 100 |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 624 |
| Housing Style | Barrel |
| Max Sensing Distance | 30 mm |
| Sensing Mode (Detailed) | Background Suppression (Fixed) |
| Sensing Mode (General) | Proximity |
| Max Relative Humidity | 95% @ 50 °C |
| Housing Material_ | SS |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | Yes, Yes |
| Feature: Water Detection | No |
| Number of Pins | 4 |
| Output Response Time | 1.5 ms |
| Operation | Light/Dark Operate |
| Adjustments | N/A |
| Feature: Timing (Hold/Delay) | No |
| Small Visible Spot | LED |
| Feature: Encapsulated | No |
| Input/Output | Discrete |
| Barrel Diameter | 18 mm |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Cable, Cable |
| Country of Origin | CN |
| Cord/Cable Length | 2 m |
| Feature: Health/Marginal Signal Output | Yes |
| Indicator Type | LED |
