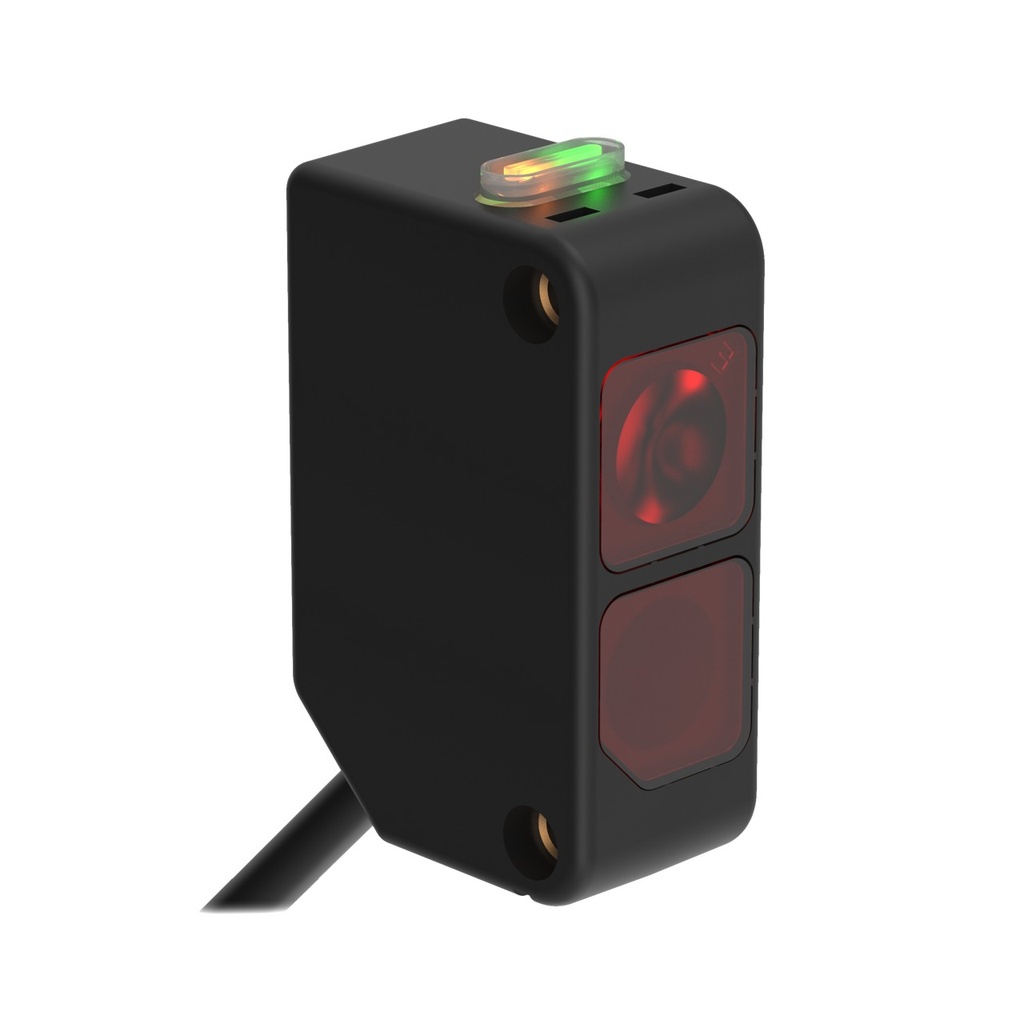

WORLD-BEAM Q20 Series: Emitter (Red), Q20EQ
Manufacturer: Banner Engineering Corp
Mfg Product Code: 78225
Weight: 0.1 lb(s)
WORLD-BEAM Q20 Series: Emitter (Red)
Features:
- WORLD-BEAM Q20 Series: Emitter (Red)
- Range: 12 m
- Input 10-30V dc
- Output: No output
- 6 in pigtail Pico-style Quick Disconnect Connector
WORLD-BEAM Q20 Series: Emitter (Red), Q20EQ
WORLD-BEAM Q20 Series: Emitter (Red)
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:60 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):140
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:655
Housing Style:Rectangular
Max Sensing Distance:12000 mm
Sensing Mode (Detailed):Emitter
Sensing Mode (General):Opposed
Max Relative Humidity:95% @ 50 °C, 95% @ 50 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M8
Feature: Chemical Resistant:No
Opposed Mode Emitter/Receiver:Emitter
Feature: Water Detection:No
Number of Pins:4
Adjustments:N/A
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:No
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Pigtail QD
Country of Origin:CN
NEMA / UL:NEMA 6
Cord/Cable Length:0.15 m
Indicator Type:LED
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 100 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Repeatability (µs) | 140 |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 655 |
| Housing Style | Rectangular |
| Max Sensing Distance | 12000 mm |
| Sensing Mode (Detailed) | Emitter |
| Sensing Mode (General) | Opposed |
| Max Relative Humidity | 95% @ 50 °C, 95% @ 50 °C |
| Housing Material_ | Thermoplastic |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No |
| Quick Disconnect Type | M8 |
| Feature: Chemical Resistant | No |
| Opposed Mode Emitter/Receiver | Emitter |
| Feature: Water Detection | No |
| Number of Pins | 4 |
| Adjustments | N/A |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | No |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Pigtail QD |
| Country of Origin | CN |
| NEMA / UL | NEMA 6 |
| Cord/Cable Length | 0.15 m |
| Indicator Type | LED |
