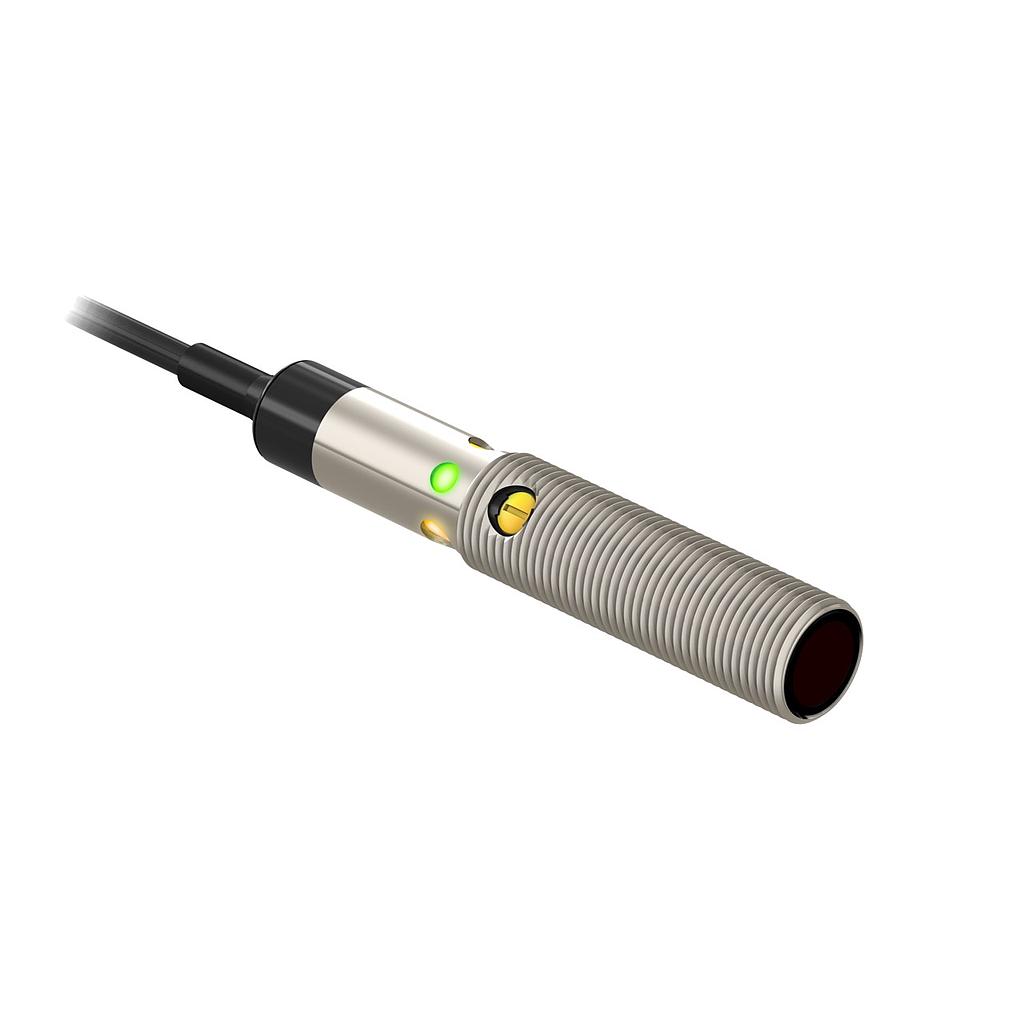

M12 Series: Retro (Red), M12NLVQPMA
M12 Series: Retro (Red)
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:60 °C
Lens Material:PMMA
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Measurement Minimum:0
Ingress Protection:IP67/68
Repeatability (µs):95
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:660
Housing Style:Barrel
Max Sensing Distance:2500 mm
Sensing Mode (Detailed):Non-Polarized
Sensing Mode (General):Retroreflective
Max Relative Humidity:90% @ 50 °C
Housing Material_:Nickel-Plated Brass
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M12
Feature: Chemical Resistant:No
Feature: Water Detection:No
Number of Pins:4
Output Response Time:0.5 ms
Operation:Light/Dark Operate
Adjustments:Potentiometer
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:Yes
Input/Output:Discrete
Barrel Diameter:12 mm
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Pigtail PUR QD, Pigtail PUR QD
Country of Origin:US
NEMA / UL:NEMA 5/6
Cord/Cable Length:0.15 m
Indicator Type:LED
Specifications
Measurement Maximum | 0 |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 60 °C |
Lens Material | PMMA |
Power Supply | 10-30 VDC |
Delay at Power-Up | 100 ms |
Measurement Minimum | 0 |
Ingress Protection | IP67/68 |
Repeatability (µs) | 95 |
Sensing Beam | Visible Red LED |
Sensing Beam Wavelength | 660 |
Housing Style | Barrel |
Max Sensing Distance | 2500 mm |
Sensing Mode (Detailed) | Non-Polarized |
Sensing Mode (General) | Retroreflective |
Max Relative Humidity | 90% @ 50 °C |
Housing Material_ | Nickel-Plated Brass |
Feature: Washdown Rated | Yes |
Feature: Hazardous Area | No |
DeviceNet | No |
Feature: IO Link | No |
Feature: Quick Disconnect | Yes |
Feature: Audible | No |
Quick Disconnect Type | M12 |
Feature: Chemical Resistant | No |
Feature: Water Detection | No |
Number of Pins | 4 |
Output Response Time | 0.5 ms |
Operation | Light/Dark Operate |
Adjustments | Potentiometer |
Feature: Timing (Hold/Delay) | No |
Feature: Encapsulated | Yes |
Input/Output | Discrete |
Barrel Diameter | 12 mm |
Feature: Remote Teach | No |
Feature: Intrinsically Safe | No |
Connection Type | Pigtail PUR QD, Pigtail PUR QD |
Country of Origin | US |
NEMA / UL | NEMA 5/6 |
Cord/Cable Length | 0.15 m |
Indicator Type | LED |
