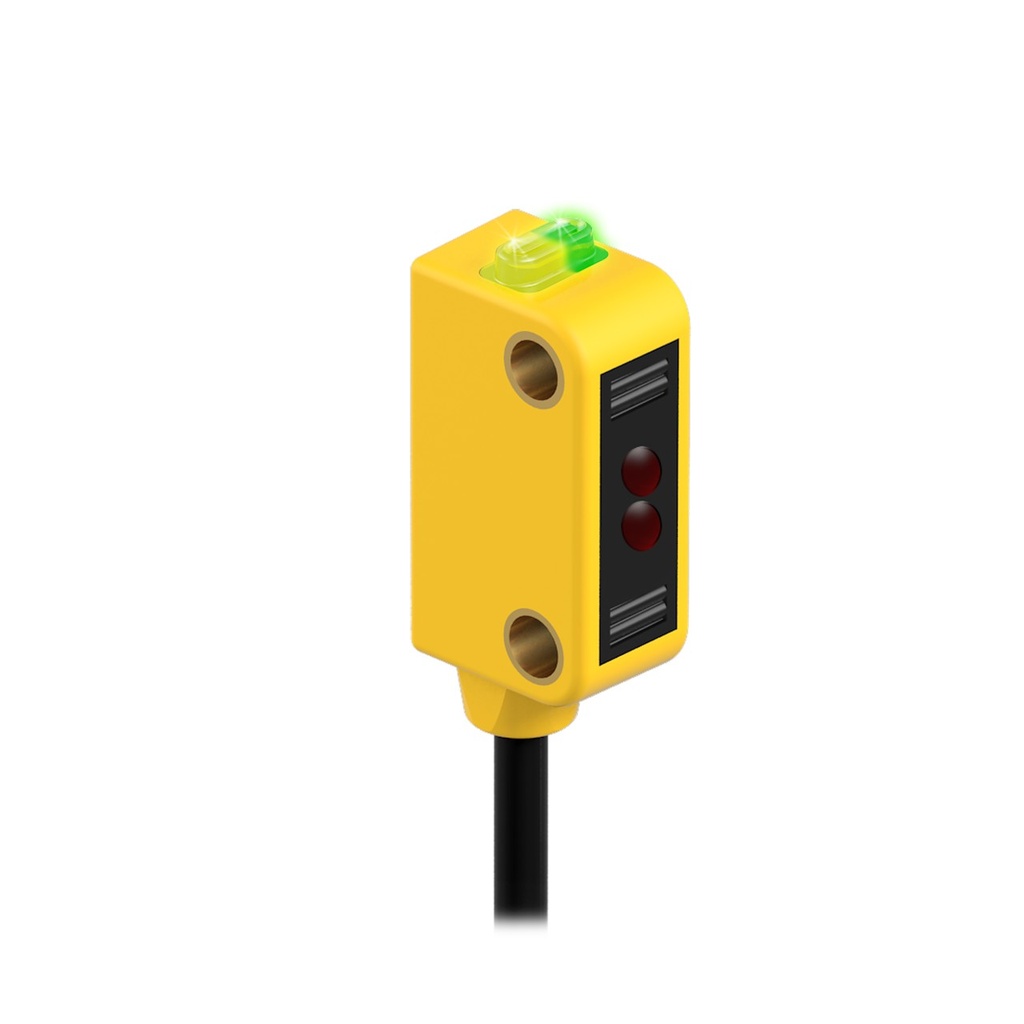

WORLD-BEAM Q12 Series: Polarized Retro, Q12AP6LPQ3
Manufacturer: Banner Engineering Corp
Mfg Product Code: 77113
Weight: 0.05 lb(s)
WORLD-BEAM Q12 Series: Polarized Retro
Features:
- WORLD-BEAM Q12 Series: Polarized Retro
- Range: 1 m
- Input: 10-30 V dc
- Output: LO
- 1 PNP
- Pico 3-pin 6 in Pigtail QD
WORLD-BEAM Q12 Series: Polarized Retro, Q12AP6LPQ3
WORLD-BEAM Q12 Series: Polarized Retro
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:55 °C
Lens Material:Glass
Power Supply:10-30 VDC
Delay at Power-Up:120 ms
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):175
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:640
Housing Style:Rectangular
Max Sensing Distance:1000 mm
Sensing Mode (Detailed):Polarized
Sensing Mode (General):Retroreflective
Max Relative Humidity:95% @ 50 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M8
Feature: Chemical Resistant:No
Feature: Water Detection:No
Number of Pins:3
Output Response Time:0.7 ms
Operation:Light Operate
Adjustments:N/A
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:No
Input/Output:Discrete
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Pigtail QD
Country of Origin:US
Cord/Cable Length:0.15 m
Indicator Type:LED
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 55 °C |
| Lens Material | Glass |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 120 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Repeatability (µs) | 175 |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 640 |
| Housing Style | Rectangular |
| Max Sensing Distance | 1000 mm |
| Sensing Mode (Detailed) | Polarized |
| Sensing Mode (General) | Retroreflective |
| Max Relative Humidity | 95% @ 50 °C |
| Housing Material_ | Thermoplastic |
| Feature: Hazardous Area | No |
| DeviceNet | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No |
| Quick Disconnect Type | M8 |
| Feature: Chemical Resistant | No |
| Feature: Water Detection | No |
| Number of Pins | 3 |
| Output Response Time | 0.7 ms |
| Operation | Light Operate |
| Adjustments | N/A |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | No |
| Input/Output | Discrete |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Pigtail QD |
| Country of Origin | US |
| Cord/Cable Length | 0.15 m |
| Indicator Type | LED |
