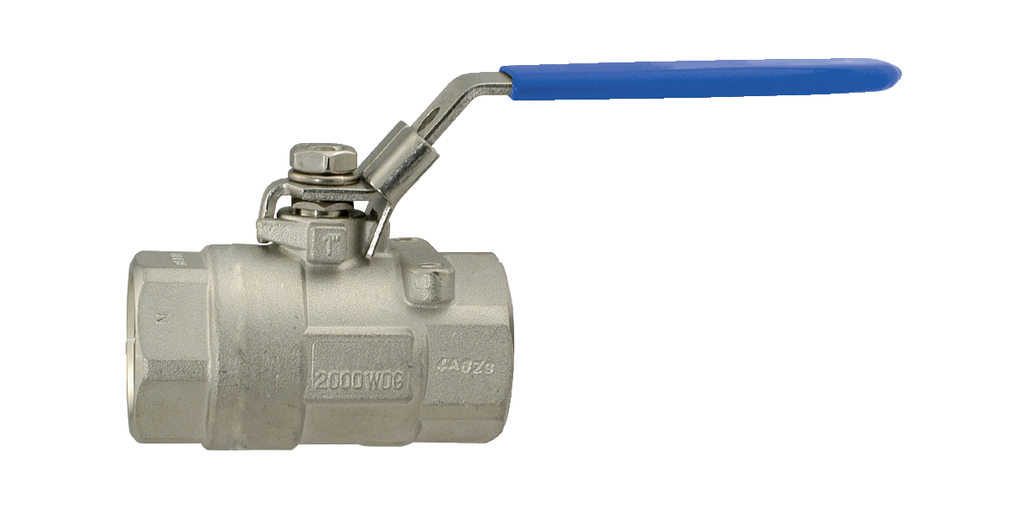

Representative photo. Please check item description for details.
7700LL North America Series, Seal Welded, Full Port SS Ball Valve, FNPT Threaded
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
On Hand: 0
7700 LL unibody stainless steel FNPT, seal welded threaded ball valve with locking handle, full port.
Features
Working pressure is 2000 psi (1/4” to 2”) - 200 psi steam.
Temperature range -40°F to 450°F.
Self-adjusting stem packing.
Blow-out proof stem design.
100% air tested under water at 80 psi.
Mounting pad for actuator.
25% carbon filled TFE seats.
Graphite stem packing.
API 607 certified.
NACE MR 0175
7700LL North America Series, Seal Welded, Full Port SS Ball Valve, FNPT Threaded
Specifications
| Valve Size | 1/4" or 3/8" or 1/2" or 3/4" or 1" or 1-1/4" or 1-1/2" or 2" |
