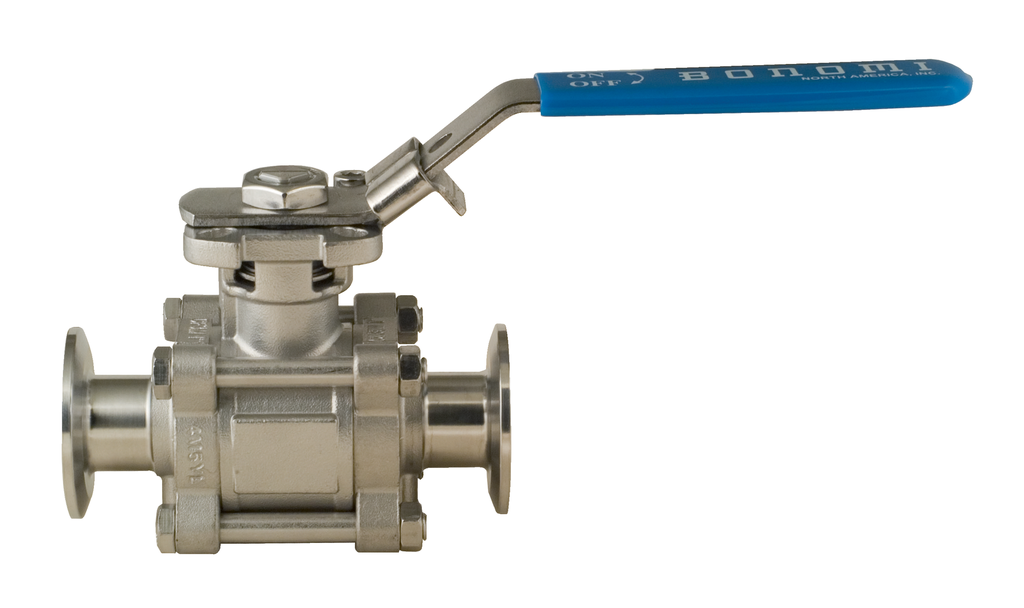

Representative photo. Please check item description for details.
770 / 771 3 pc. North America Series Stainless Steel, Full Port Sanitary Valve, Locking Handle & ISO 5211 Direct Mounting Pad
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
On Hand: 0
770 Bonomi North America Series stainless steel, 3-piece direct mount, sanitary full port ball valves with latch locking lever.
Features
ISO 5211 direct mount pad/square stem.
Working pressure 1000 psi WOG (1/2” to 2”) 800 psi WOG (2 1/2” to 4”).
Temperature range -20°F to 450°F.
Blow-out proof stem.
Antistatic Device.
International polishing to Ra 15 micron.
Tri-clamp style end connections.
Ball valves comply with standards: ISO 5211, ANSI B 16.11, MSS SP-25, MSS SP-55.
Maintenance free live loaded double sealing stem.
Live loaded stem packing design.
Model Details
770: NON-CAVITY FILLED - size 1/2” to 4”.
771: CAVITY FILLED - size 1/2” to 4”.
770 / 771 3 pc. North America Series Stainless Steel, Full Port Sanitary Valve, Locking Handle & ISO 5211 Direct Mounting Pad
Specifications
| Model | [770] Standard Seats or [771] Cavity-Filled Seats |
| Valve Size | 1/2" or 3/4" or 1" or 1-1/2" or 2" or 2-1/2" or 3" or 4" or 6" or 1/2" or 3/4" or 1" or 1-1/2" or 2" or 2-1/2" or 3" or 4" or 6" |
