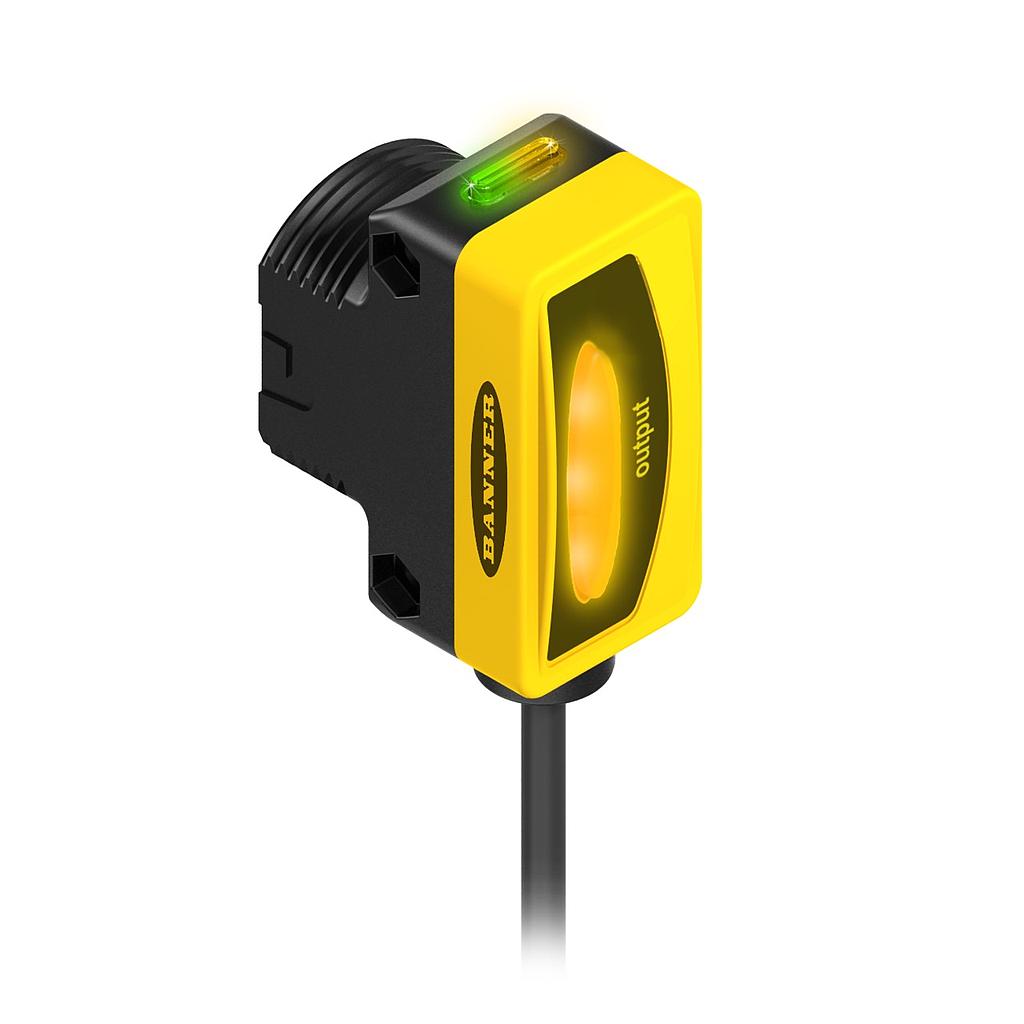

5 PIN EURO 6 in NO DEAD ZONE, QS30FF600QPMA
QS30FF600QPMA 5 PIN EURO 6 in NO DEAD ZONE
Brand:Banner
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):500
Sensing Beam Wavelength:680
Housing Style:Rectangular w/M30 Mount
Max Sensing Distance:600 mm
Sensing Mode (Detailed):Background Suppression (Fixed)
Sensing Mode (General):Proximity
Max Relative Humidity:95% @ 50 °C
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M12 (Euro)
Feature: Chemical Resistant:No
Feature: Water Detection:No
Number of Pins:5
Output Response Time:2 ms
Operation:Light/Dark Operate
Adjustments:N/A
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:No
Barrel Diameter:30
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection:Pigtail PUR QD
Country of Origin:US
NEMA / UL:NEMA 6, NEMA 6
Indicator Type:LED
Specifications
Brand | Banner |
Lens Material | Acrylic |
Power Supply | 10-30 VDC |
Delay at Power-Up | 100 ms |
Measurement Minimum | 0 |
Ingress Protection | IP67 |
Repeatability (µs) | 500 |
Sensing Beam Wavelength | 680 |
Housing Style | Rectangular w/M30 Mount |
Max Sensing Distance | 600 mm |
Sensing Mode (Detailed) | Background Suppression (Fixed) |
Sensing Mode (General) | Proximity |
Max Relative Humidity | 95% @ 50 °C |
Feature: Hazardous Area | No |
DeviceNet | No |
Feature: IO Link | No |
Feature: Quick Disconnect | Yes |
Feature: Audible | No |
Quick Disconnect Type | M12 (Euro) |
Feature: Chemical Resistant | No |
Feature: Water Detection | No |
Number of Pins | 5 |
Output Response Time | 2 ms |
Operation | Light/Dark Operate |
Adjustments | N/A |
Feature: Timing (Hold/Delay) | No |
Feature: Encapsulated | No |
Barrel Diameter | 30 |
Feature: Remote Teach | No |
Feature: Intrinsically Safe | No |
Connection | Pigtail PUR QD |
Country of Origin | US |
NEMA / UL | NEMA 6, NEMA 6 |
Indicator Type | LED |
