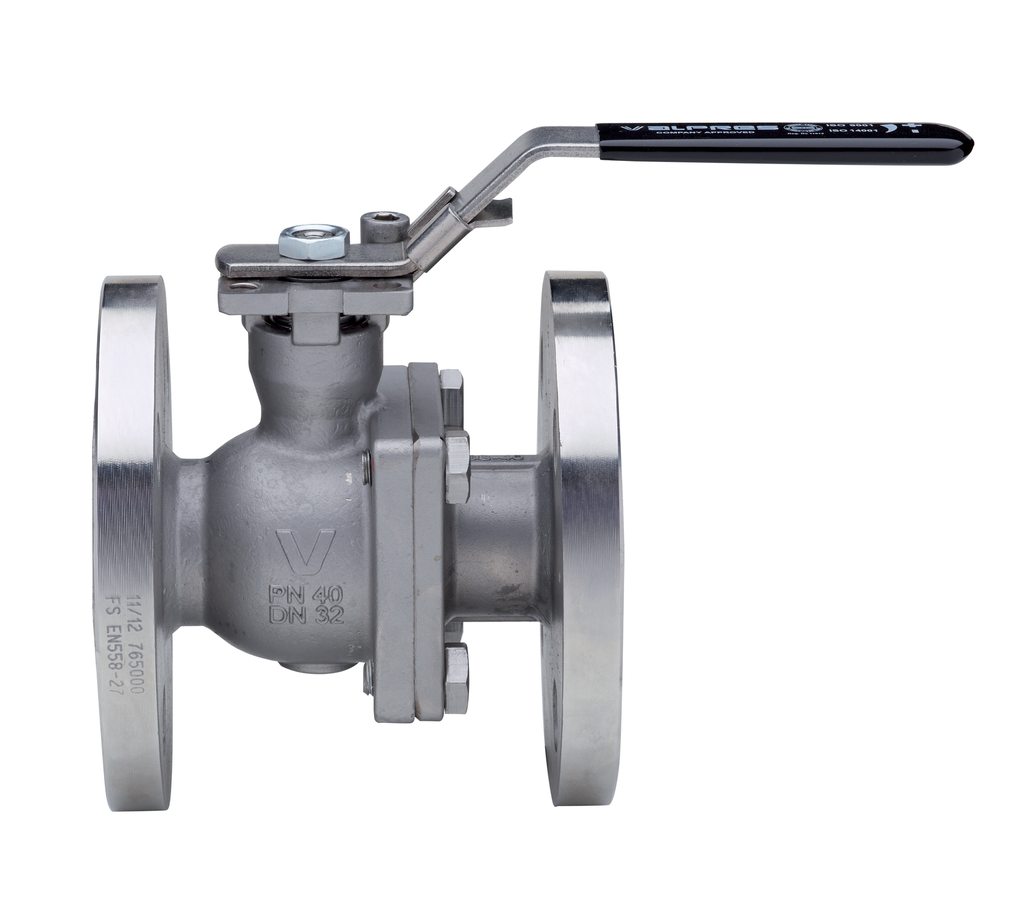

Representative photo. Please check item description for details.
766000 Split-Body Series Stainless Steel Flanged ANSI 150 Split-Body, Full Port Ball Valve w/ Locking Handle and ISO 5211 Direct Mounting Pad
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
On Hand: 0
766000 Split-Body Series stainless steel, ANSI class 150 flanged ball valve, full port, with locking handle.
Features
- Direct mount ISO 5211/square stem.
- Temperature range -4°F to 366°F.
- Blow-out proof stem, adjustable stem packing.
- PTFE seats, packing and thrust washer and FKM Viton® O-rings.
- Fire safe certified to API 607.
- 100% tested.
- ANSI B16.5, B16.10, B16.34 design.
- Antistatic Device.
- Standard locking handle.
766000 Split-Body Series Stainless Steel Flanged ANSI 150 Split-Body, Full Port Ball Valve w/ Locking Handle and ISO 5211 Direct Mounting Pad
Specifications
| Valve Size | 1" or 1-1/2" or 2" or 3" or 4" |
