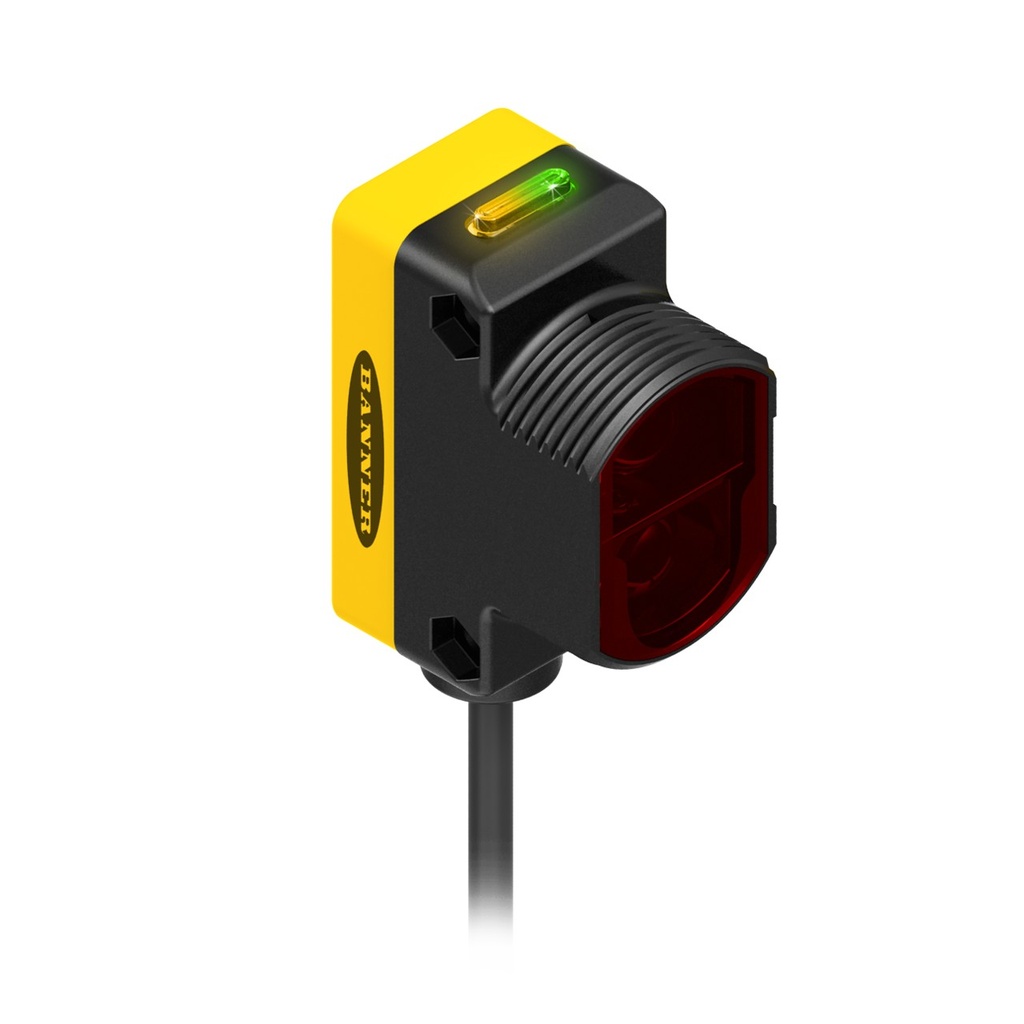

WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam, QS30EDV W/30
Manufacturer: Banner Engineering Corp
Mfg Product Code: 76091
Weight: 0.6 lb(s)
Features:
- WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam
- Range: High-Speed Mode: 1 100 mm
- Normal: 1400 mm
- Input: 10-30 V dc
- Output: Bipolar NPN/PNP
- 9 m (30 ft) Cable
WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam, QS30EDV W/30
Brand:Banner
Manufacturer Product Family:QS30
Measurement Maximum:0
Min Operating Temperature:-10 °C
Max Operating Temperature:55 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:250 ms
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):100 to 150
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:660
Housing Style:Rectangular w/M30 Mount
Max Sensing Distance:1400 mm
Sensing Mode (Detailed):Diffuse
Sensing Mode (General):Proximity
Max Relative Humidity:95% @ 55 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:No
Feature: Audible:No
Feature: Chemical Resistant:No
Feature: Water Detection:No
Number of Pins:5
Output Response Time:0.3 - 1.8 ms
Operation:Light/Dark Operate
Adjustments:Teach Button
Feature: Timing (Hold/Delay):Yes
Feature: Encapsulated:No
Input/Output:Discrete
Barrel Diameter:30 mm
Feature: Remote Teach:Yes
Feature: Intrinsically Safe:No
Connection Type:Cable
Country of Origin:US
NEMA / UL:NEMA 6
Cord/Cable Length:9 m
Indicator Type:Bargraph
Specifications
Brand | Banner |
Manufacturer Product Family | QS30 |
Measurement Maximum | 0 |
Min Operating Temperature | -10 °C |
Max Operating Temperature | 55 °C |
Lens Material | Acrylic |
Power Supply | 10-30 VDC |
Delay at Power-Up | 250 ms |
Measurement Minimum | 0 |
Ingress Protection | IP67 |
Repeatability (µs) | 100 to 150 |
Sensing Beam | Visible Red LED |
Sensing Beam Wavelength | 660 |
Housing Style | Rectangular w/M30 Mount |
Max Sensing Distance | 1400 mm |
Sensing Mode (Detailed) | Diffuse |
Sensing Mode (General) | Proximity |
Max Relative Humidity | 95% @ 55 °C |
Housing Material_ | Thermoplastic |
Feature: Hazardous Area | No |
DeviceNet | No |
Feature: IO Link | No |
Feature: Quick Disconnect | No |
Feature: Audible | No |
Feature: Chemical Resistant | No |
Feature: Water Detection | No |
Number of Pins | 5 |
Output Response Time | 0.3 - 1.8 ms |
Operation | Light/Dark Operate |
Adjustments | Teach Button |
Feature: Timing (Hold/Delay) | Yes |
Feature: Encapsulated | No |
Input/Output | Discrete |
Barrel Diameter | 30 mm |
Feature: Remote Teach | Yes |
Feature: Intrinsically Safe | No |
Connection Type | Cable |
Country of Origin | US |
NEMA / UL | NEMA 6 |
Cord/Cable Length | 9 m |
Indicator Type | Bargraph |
