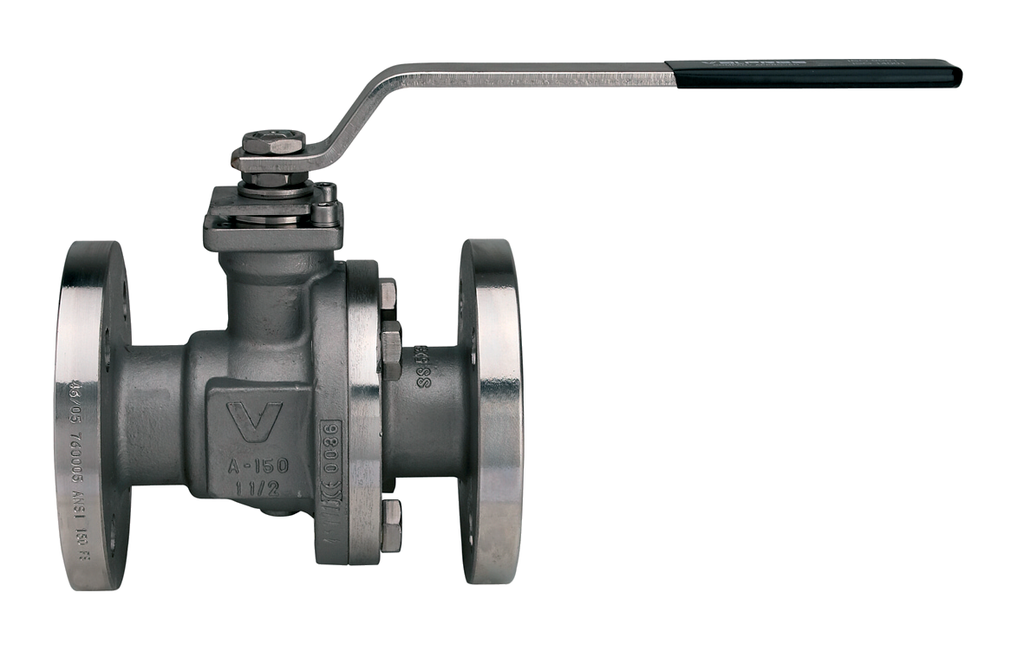

Representative photo. Please check item description for details.
760005 / 760021 Split-Body Series Stainless Steel Flanged ANSI 150 Full Port, Split-Body Ball Valve, Fire Safe, Antistatic Device w/ ISO 5211 Pad and Double "D" Stem
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
On Hand: 0
760005 / 760021 Split-Body Series stainless steel, ANSI class 150 flanged ends ball valve, full port.
Features
- Blow-out proof stem, adjustable stem packing.
- PTFE seats, packing and thrust washer.
- Standard grounded stem and ball.
- 100% tested.
- PED 97/23/CE.
- Locking handle plate.
- Temperature range -4°F to 366°F.
- ANSI B16.5, B16.10, B16.34 design.
- Fire Safe API 6FA-API 607.
- Antistatic Device.
- ISO 5211 mounting pad and double “D"" stem.
- Fugitive emissions tested to ISO 15848-1.
Model Details
- 760005: sizes 1/2"" to 12"" (10"" and 12"" TRUNNION).
- 760021: STEAM SERVICE TRIM - sizes 1/2"" to 8"".
- 760V05: V-PACK AVAILABLE - sizes 1/2"" to 8"".
760005 / 760021 Split-Body Series Stainless Steel Flanged ANSI 150 Full Port, Split-Body Ball Valve, Fire Safe, Antistatic Device w/ ISO 5211 Pad and Double "D" Stem
Specifications
| Model | [760005] Standard or [760021] for Steam |
| Valve Size | 1/2" or 3/4" or 1" or 1-1/2" or 2" or 2-1/2" or 3" or 4" or 6" or 8" or 10" or 12" or 1/2" or 3/4" or 1" or 1-1/2" or 2" or 3" or 4" or 6" or 8" or 10" or 12" |
