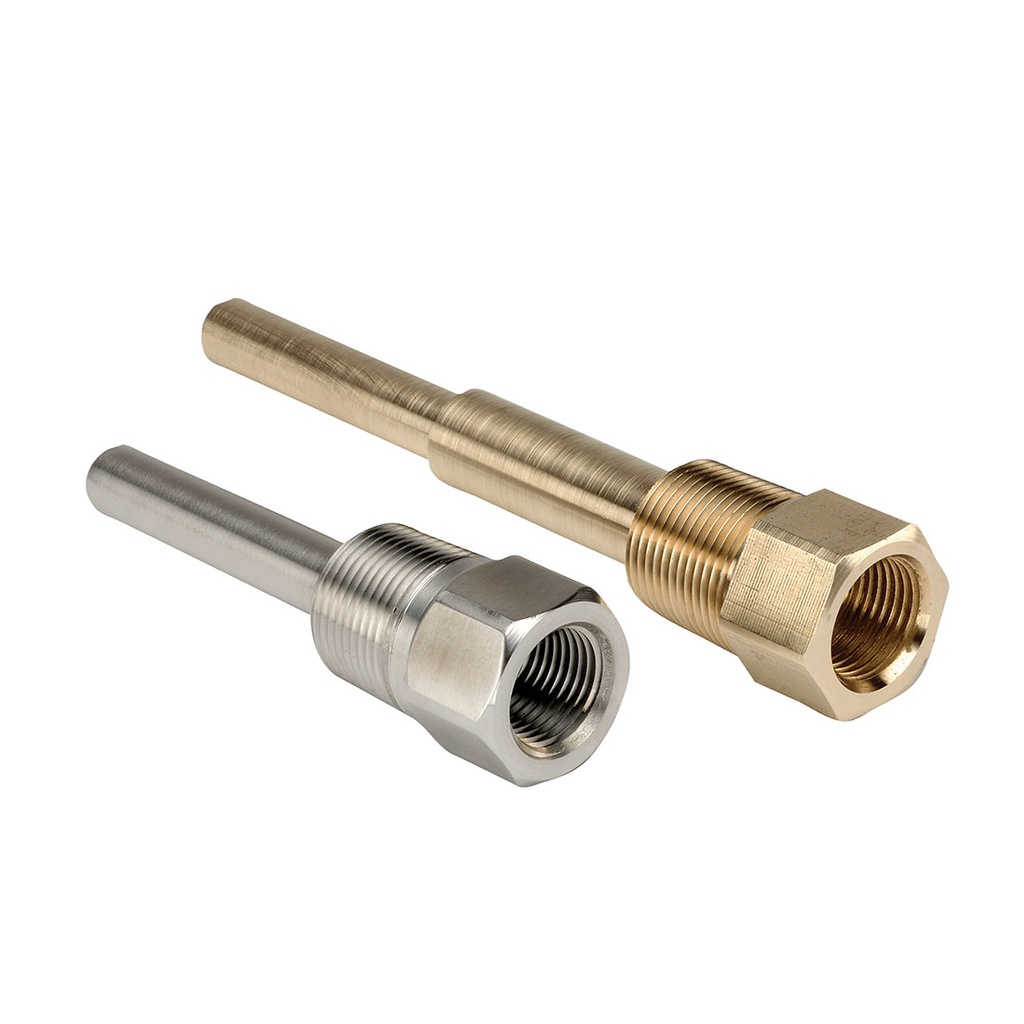

75 Series Straight Shank Thermowell, 3/4" NPT, 304 SS to 1/2" NPT-Male, 2.5" Stem
Manufacturer: Noshok Inc
Mfg Product Code: 75-025-304-SS
Weight: 0.5 lb(s)
3/4" NPT Straight Shank, 2-1/2" Length, 1/2" NPSM Instr Conn, 304 SS Thermowell
- Allows a temperature instrument to be removed and replaced without shutting down and draining the process
- Reduces the possibility of damage to the temperature instrument
- Provides protection to the operator
- 1/2" NPSM instrument connection, 3/4" NPT process connection standard - 1/2" NPT, 1" NPT, flanged and sanitary options available
- 150 Class and 300 Class raised face flanged thermowells available
Applications:
- Recommended wherever the process being measured is under pressure, corrosive, abrasive, or moving at a high velocity
- HVAC
- Petrochemical
- Oil and gas
- Process (flanged thermowells)
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
75 Series Straight Shank Thermowell, 3/4" NPT, 304 SS to 1/2" NPT-Male, 2.5" Stem
3/4" NPT Straight Shank, 2-1/2" Length, 1/2" NPSM Instr Conn, 304 SS Thermowell
Process Connection Type:NPT
Instrument Connection Size:1/2"
Instrument Connection Type:NPT-Male
Style:Straight Shank
Pressure Rating:7,000 psi @ 70ºF
Stem Length:2.5 in. (63.5 mm)
Bore Size:0.260 in. (6.35 mm)
Process Connection Size:3/4"
Max Shank Diameter:0.750 in. (19.05 mm)
Case Material:304 SS
Shank Style:Straight Shank
Specifications
Process Connection Type | NPT |
Instrument Connection Size | 1/2" |
Instrument Connection Type | NPT-Male |
Style | Straight Shank |
Pressure Rating | 7,000 psi @ 70ºF |
Stem Length | 2.5 in. (63.5 mm) |
Bore Size | 0.260 in. (6.35 mm) |
Process Connection Size | 3/4" |
Max Shank Diameter | 0.750 in. (19.05 mm) |
Case Material | 304 SS |
Shank Style | Straight Shank |
