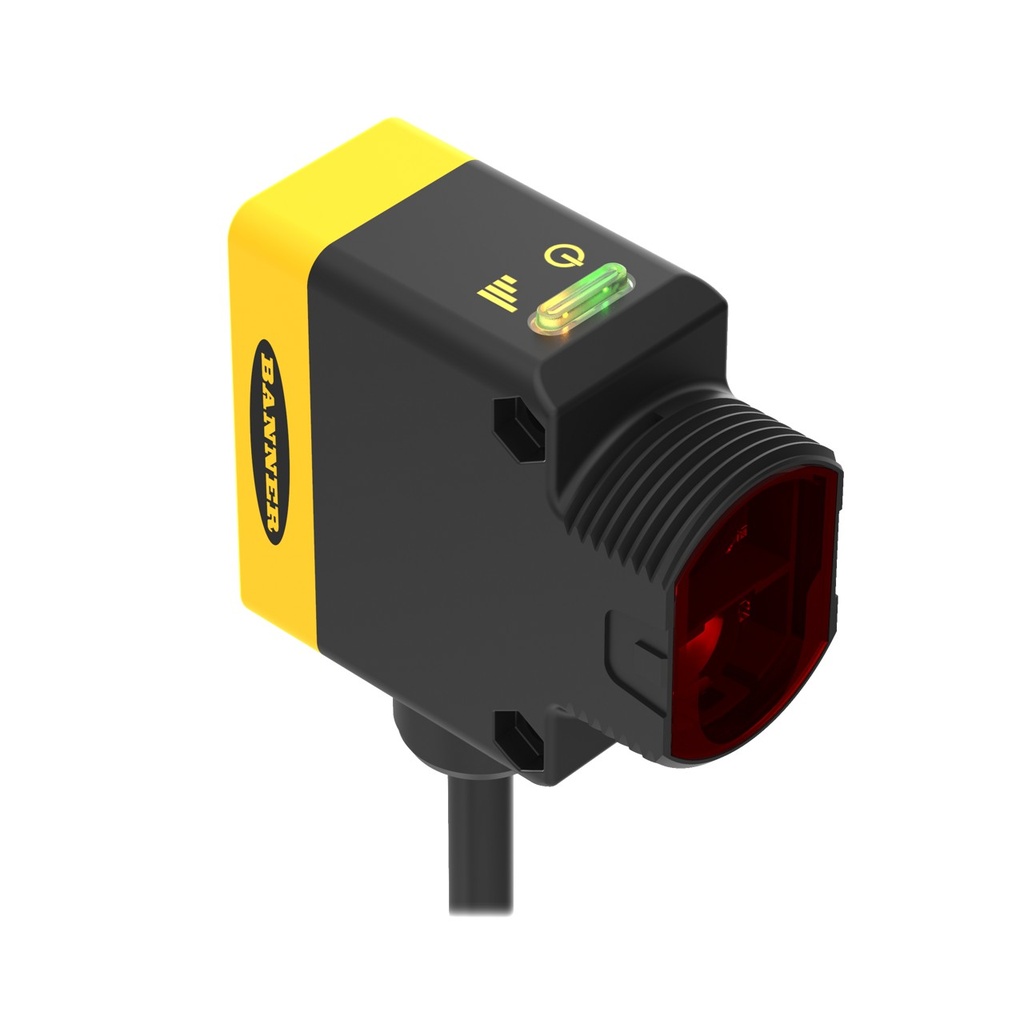

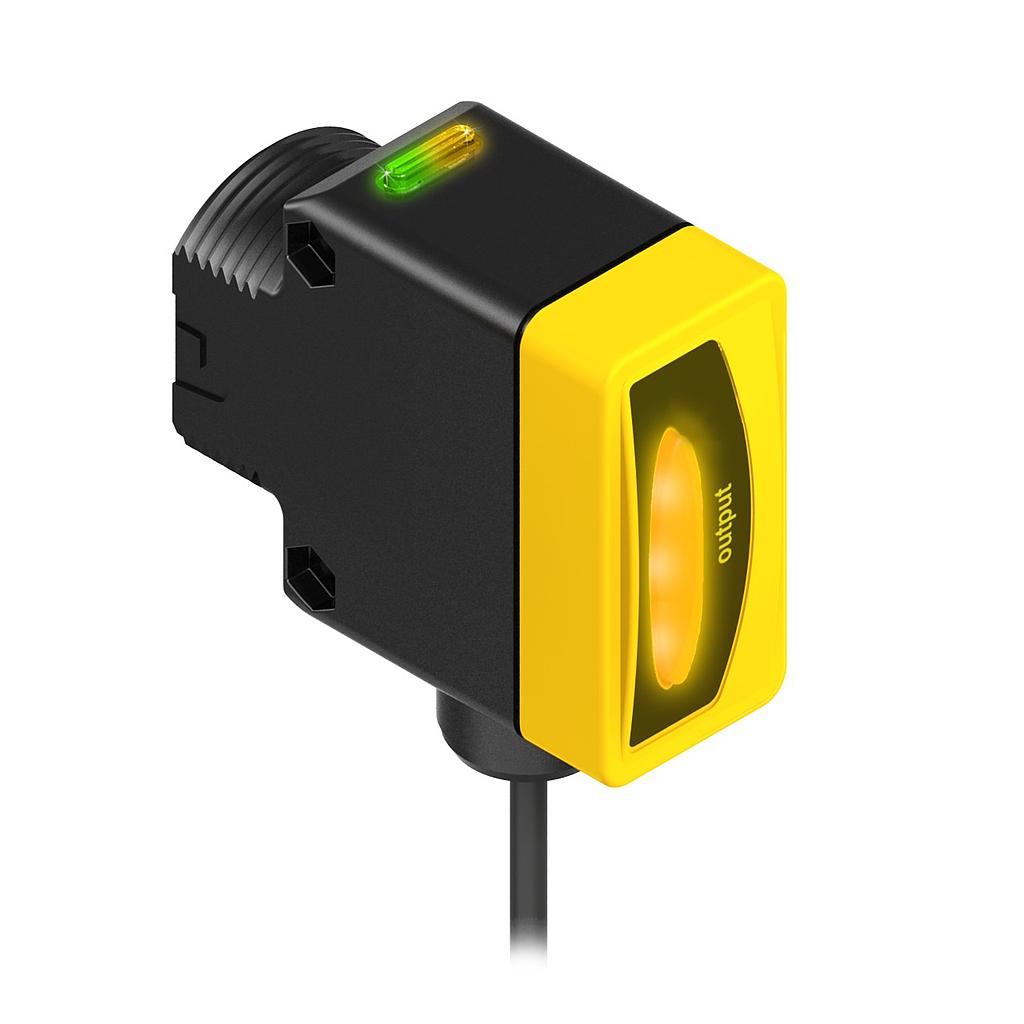

COMMON HOT 6 IN MICRO PIGTAIL PUR JACKET, QS30VR3FF400QPMA3
Brand:Banner
Manufacturer Product Family:QS30
Min Operating Temperature:-20 °C
Max Operating Temperature:70 °C
Lens Material:Acrylic
Power Supply:12-250 VDC or 24-250 VAC
Delay at Power-Up:100 ms
Measurement Minimum:0
Ingress Protection:IP67
Sensing Beam:Visible Red LED
Sensing Beam Wavelength:680
Housing Style:Rectangular w/M30 Mount
Max Sensing Distance:400 mm
Sensing Mode (Detailed):Background Suppression (Fixed)
Sensing Mode (General):Proximity
Max Relative Humidity:95% @ 50 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
DeviceNet:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:1/2 in. (Micro)
Feature: Chemical Resistant:No
Feature: Water Detection:No
Number of Pins:5
Output Response Time:15 ms
Operation:Light/Dark Operate
Adjustments:N/A
Feature: Timing (Hold/Delay):No
Feature: Encapsulated:No
Input/Output:E/M Relay
Barrel Diameter:30 mm
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Pigtail PUR QD
Country of Origin:US
NEMA / UL:NEMA 6, NEMA 6
Cord/Cable Length:0.15 m
Indicator Type:LED
Specifications
Brand | Banner |
Manufacturer Product Family | QS30 |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 70 °C |
Lens Material | Acrylic |
Power Supply | 12-250 VDC or 24-250 VAC |
Delay at Power-Up | 100 ms |
Measurement Minimum | 0 |
Ingress Protection | IP67 |
Sensing Beam | Visible Red LED |
Sensing Beam Wavelength | 680 |
Housing Style | Rectangular w/M30 Mount |
Max Sensing Distance | 400 mm |
Sensing Mode (Detailed) | Background Suppression (Fixed) |
Sensing Mode (General) | Proximity |
Max Relative Humidity | 95% @ 50 °C |
Housing Material_ | Thermoplastic |
Feature: Hazardous Area | No |
DeviceNet | No |
Feature: IO Link | No |
Feature: Quick Disconnect | Yes |
Feature: Audible | No |
Quick Disconnect Type | 1/2 in. (Micro) |
Feature: Chemical Resistant | No |
Feature: Water Detection | No |
Number of Pins | 5 |
Output Response Time | 15 ms |
Operation | Light/Dark Operate |
Adjustments | N/A |
Feature: Timing (Hold/Delay) | No |
Feature: Encapsulated | No |
Input/Output | E/M Relay |
Barrel Diameter | 30 mm |
Feature: Remote Teach | No |
Feature: Intrinsically Safe | No |
Connection Type | Pigtail PUR QD |
Country of Origin | US |
NEMA / UL | NEMA 6, NEMA 6 |
Cord/Cable Length | 0.15 m |
Indicator Type | LED |
