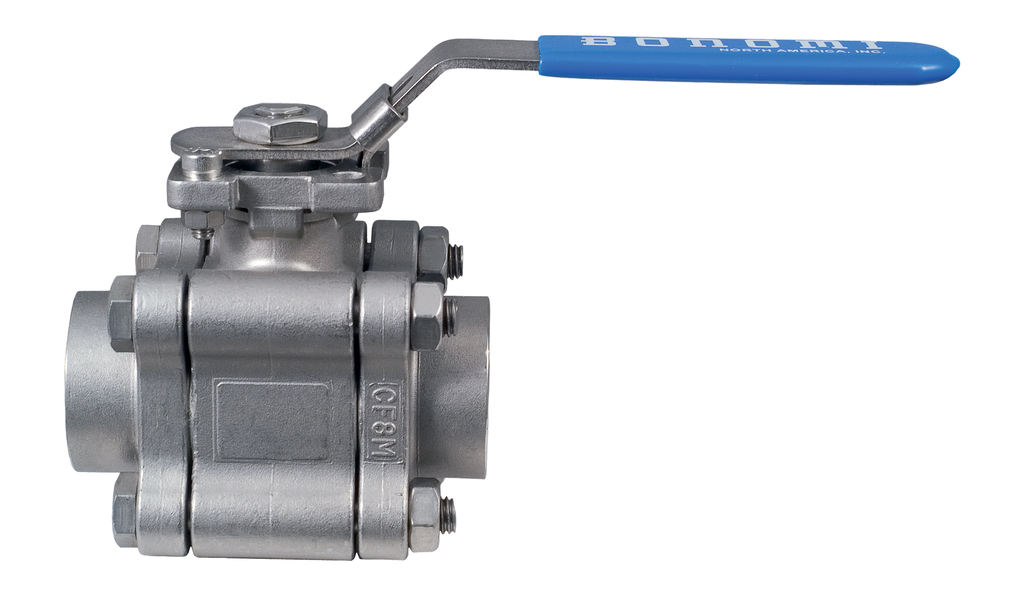

Representative photo. Please check item description for details.
730LLV3-V6-V9 (NPT) North America Series Full Port High Performance 3-Piece Stainless Steel Ball Valve With Locking Lever and ISO 5211 Direct Mounting Pad, 30, 60, 90 Degrees V-Ball Valve
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
On Hand: 0
730LLV3-V6-V9 (NPT) Bonomi North America series stainless steel direct mount 3 piece V-port ball valve with locking lever, sizes 1/4" to 4".
Features
- Class 900 sizes 1/4" to 2, Class 600 sizes 2 1/2" to 4".
- Working pressure: 2160 psi (1/4" to 2"), 1440 psi (2 1/2" to 4").
- ISO 5211 mounting pad/square stem.
- TFM-4215 ball seats.
- Standard latch locking handle.
- Conforms to ANSI B16.34, ANSI B1.20.1 thread depths, NACE MR0175.
- Fire Safe to API 607-6th edition.
- Standard SS 316 and stem in carbon steel models.
- Temperature range: -50°F to 550°F.
730LLV3-V6-V9 (NPT) North America Series Full Port High Performance 3-Piece Stainless Steel Ball Valve With Locking Lever and ISO 5211 Direct Mounting Pad, 30, 60, 90 Degrees V-Ball Valve
Specifications
| Model | [730LLV3] 30° or [730LLV6] 60° or [730LLV9] 90° |
| Valve Size | 1/2" or 3/4" or 1" or 1-1/4" or 1-1/2" or 2" or 2-1/2" or 3" or 4" |
