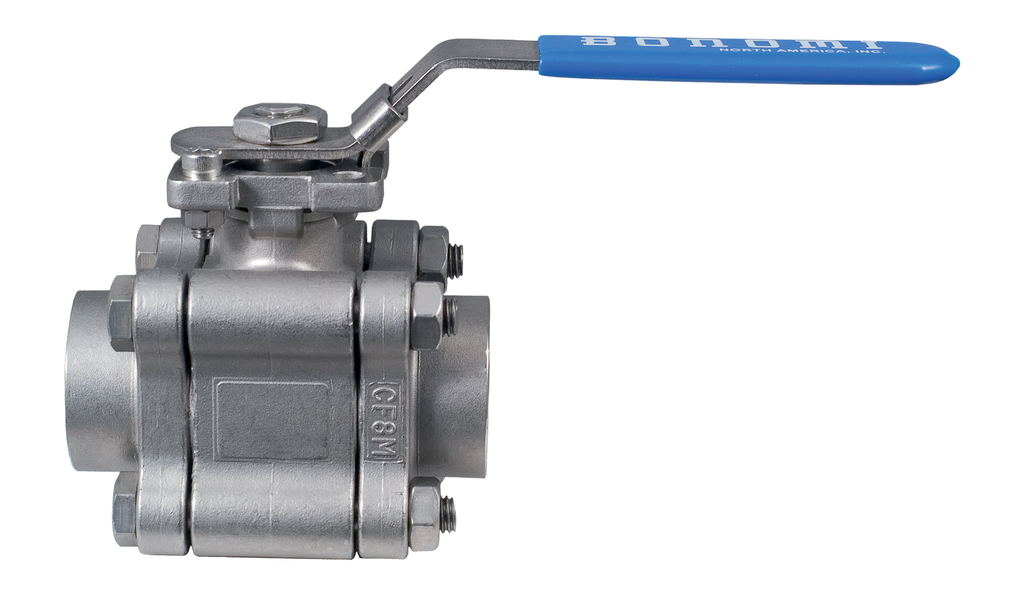

Representative photo. Please check item description for details.
730LL / 731LL / 732LL North America Series Full Port High Performance 3 pc. Stainless Steel Ball Valve w/ Locking Lever and ISO 5211 Mounting Pad
Manufacturer: Bonomi North America Inc
Mfg Product Code: 73
Weight: 5.0 lb(s)
On Hand: 0
730LL / 731LL / 732LL Bonomi North America Series direct mount high performance 3-piece full port ball valves with locking lever.
Features
Class 900 sizes 1/4” to 2”, class 600 sizes 2 1/2”- 4”.
Carbon steel-2220 psi, stainless steel-2160 psi (1/4” - 2”), carbon steel-1480 psi, stainless steel-1440 psi (2 1/2” - 4”).
Working steam pressure to 250 psi.
Temperature range: -50°F to 550°F.
ISO 5211 mounting pad/square stem.
Peek seats.
Standard latch locking handle.
Conforms to ANSI 16.34, ANSI B1.20.1 thread depths, NACE MR0175.
Fire Safe to API 607.
Grounded ball and stem.
Standard 316 stainless steel ball and stem in carbon steel models.
730LL / 731LL / 732LL North America Series Full Port High Performance 3 pc. Stainless Steel Ball Valve w/ Locking Lever and ISO 5211 Mounting Pad
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Model | [730LL] NPT Ends or [731LL] SW Ends or [732LL] BW Ends |
| Valve Size | 1/4" or 3/8" or 1/2" or 3/4" or 1" or 1-1/4" or 1-1/2" or 2" or 2-1/2" or 3" or 4" |
