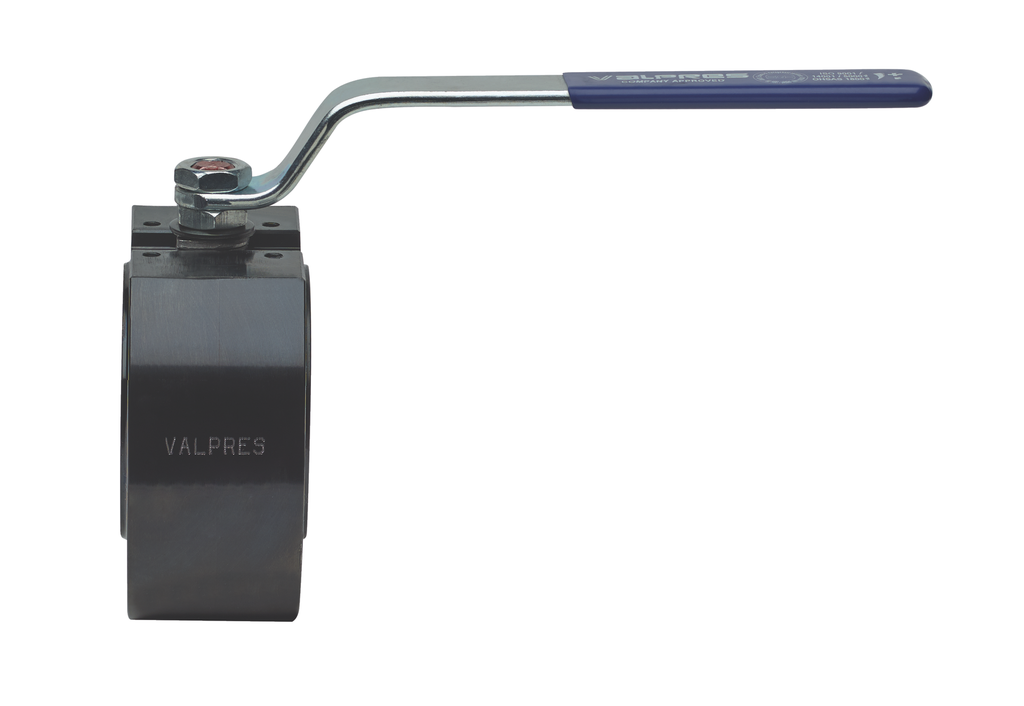

720289 / 720744 Wafer Series Carbon Steel Flanged ANSI 300 Wafer Ball Valve
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
On Hand: 0
720289 / 7202744 Wafer Series Carbon steel, ANSI class 300 flanged ball valve, stainless steel ball and stem.
Features
- Temperature range -4°F to 366°F.
- Blow-out proof stem.
- RPTFE seats, packing and thrust washer.
- Space saving design.
- 100% tested.
- TUV T.A. Luft approved.
- ANSI B16.34 design.
- ISO 5211 mounting pad with double “D" stem.
- Locking handles available.
- Complies with NACE MR 0175/ISO 15156 and NACE MR 0103.
Model Details
- 720289: size 1/2" to 6".
- 720744: FIRE SAFE APPROVED TO BS6755PART.2 WITH ANTISTATIC STEM DEVICE AND CARBON FILLED PTFE SEATS - size 1/2" to 6".
720289 / 720744 Wafer Series Carbon Steel Flanged ANSI 300 Wafer Ball Valve
Specifications
| Model | [720289] Standard or [720744] for Fire Safe Applications |
| Valve Size | 1/2" or 3/4" or 1" or 1-1/4" or 1-1/2" or 2" or 2-1/2" or 3" or 4" or 6" or 1/2" or 3/4" or 1" or 1-1/4" or 1-1/2" or 2" or 2-1/2" or 3" or 4" or 6" |
