Representative photo. Please check item description for details.

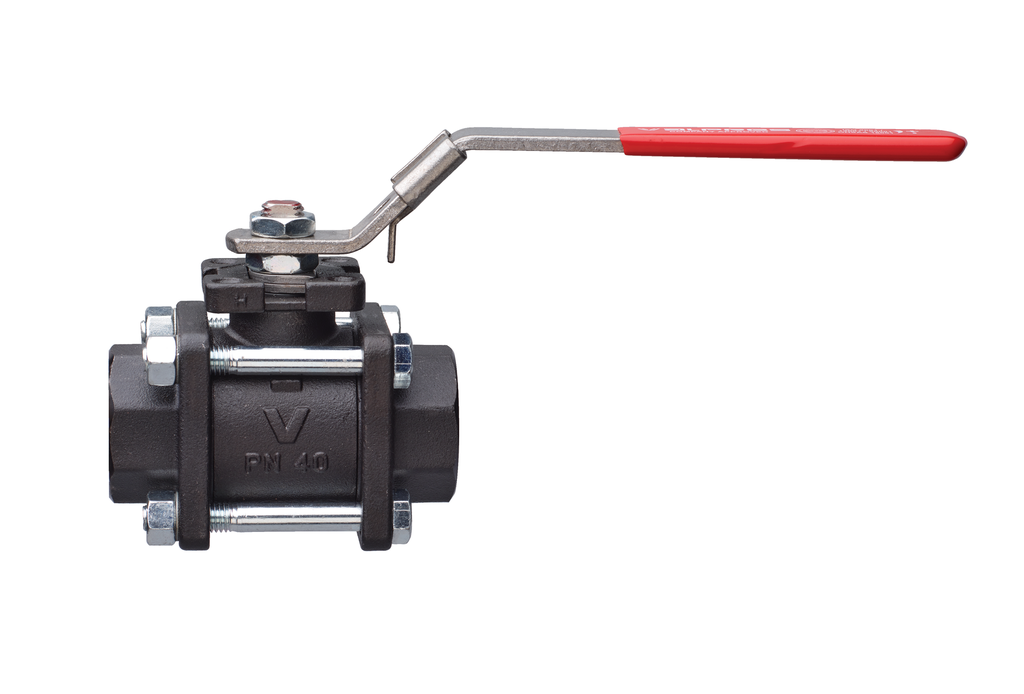

710064 / 710065 Radiamont Series, Full Port 3 pc. Carbon Steel Ball Valve, w/ ISO 5211 Pad and Double "D" Stem for Steam
Manufacturer: Bonomi North America Inc
Mfg Product Code: 71006
Weight: 5.0 lb(s)
On Hand: 0
710064 / 710065 Radiamont Series 3-piece carbon steel ball valve for steam, full port.
Features
Steam pressure to 250 psi.
Temperature range: -4°F to 406°F.
Blow-out proof stem, adjustable stem packing.
ISO 5211 mounting pad with double “D” stem.
100% electronically tested in the open and closed position at 80 psi.
TUV T.A. Luft approved.
25% carbon filled PTFE ball seats.
Standard Latch Lock Handle.
Complies with NACE MR 0175/ISO 15156 and NACE MR 0103.
Model Details
710064: SOCKET WELD - size 3/8” to 4”.
710065: BUTT WELD - size 3/8” to 4”.
710064 / 710065 Radiamont Series, Full Port 3 pc. Carbon Steel Ball Valve, w/ ISO 5211 Pad and Double "D" Stem for Steam
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Model | [710064] Socket Weld or [710065] Butt Weld |
| Valve Size | 3/8" or 1/2" or 3/4" or 1" or 1-1/4" or 1-1/2" or 2" or 2-1/2" or 3" or 4" |
