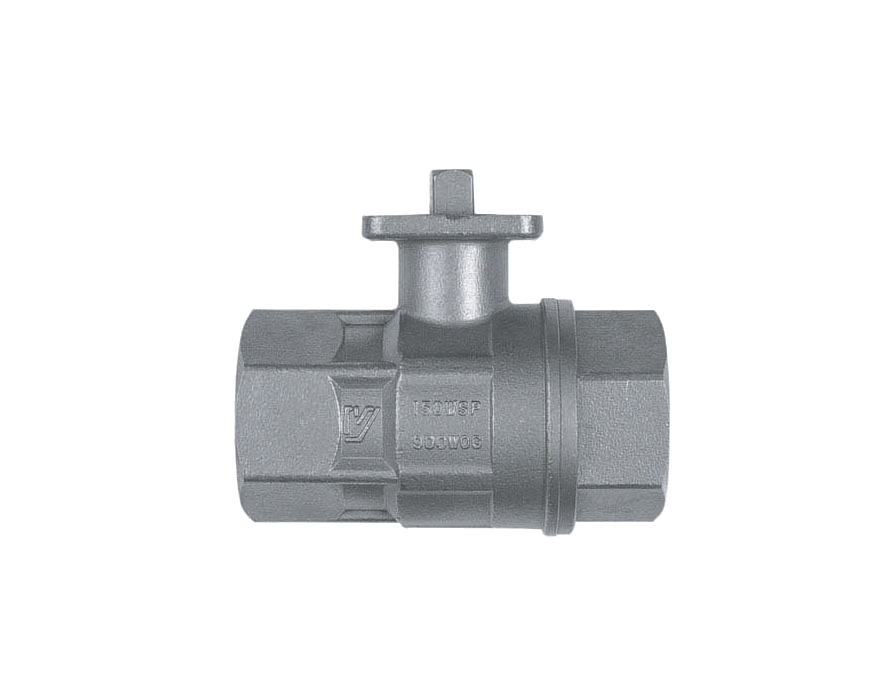

Representative photo. Please check item description for details.
700076 Inox-Val Series, Full Port Stainless Steel Ball Valve, 1000 psi, FNPT Threaded, ISO 5211 Direct Mounting Pad
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
On Hand: 0
700076 Inox-Val Series 2-piece stainless steel FNPT threaded, direct mount ball valve, full port.
Features
Pressure rating: 1000 psi 1/4” to 2”, 800 psi 2 1/2” to 3”, 150 psi steam.
Temperature -4°F to +366°F.
NSF 61, 372 certified.
Blow-out proof stem.
PTFE seats with O-ring backing for low operating torque.
PTFE seals and double O-ring stem packing.
100% electronically tested in the open and closed position at 80 psi.
ISO 5211 mounting pad.
ANSI B1.20.1 connections.
Complies with NACE MR 0175/ISO 15156 and NACE MR 0103
700076 Inox-Val Series, Full Port Stainless Steel Ball Valve, 1000 psi, FNPT Threaded, ISO 5211 Direct Mounting Pad
Specifications
| Valve Size | 1/4" or 3/8" or 1/2" or 3/4" or 1" or 1-1/4" or 1-1/2" or 2" or 2-1/2" or 3" |
