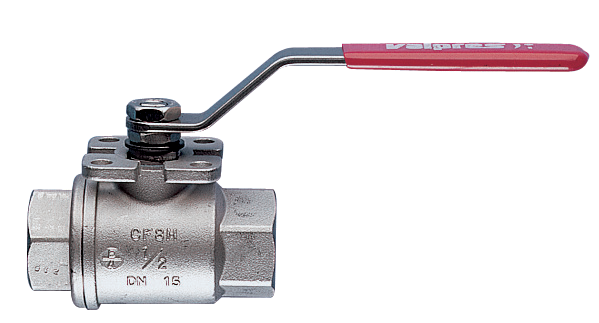

Representative photo. Please check item description for details.
700001 Inox-Val Series, Full Port, SS Ball Valve, 350-2000 psi, FNPT Threaded w/ ISO 5211 pad and Double "D" Stem
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
On Hand: 0
700001 Inox-Val 2-piece stainless steel FNPT threaded ball valve, full port.
Features
Pressure rating 2000 psi to 1/2”, 1500 psi 3/4” to 1”, 1000 psi 1 1/4” to 2”, 350 psi 2 1/2” to 4”, 150 psi steam.
Temperature range -4°F to +366°F.
Blow-out proof stem, adjustable stem packing.
PTFE seats, packing, and thrust washer.
ISO 5211 mounting pad and double “D” stem.
100% electronically tested in the open and closed position at 80 psi.
TUV T.A. Luft approved.
ANSI B1.20.1 connections.
Complies with NACE MR 0175/ISO 15156 and NACE MR 0103.
Model Details
700001: size 1/8” to 4”.
700001LL: WITH LOCKING HANDLE - size 1/8” to 4”.
700001 Inox-Val Series, Full Port, SS Ball Valve, 350-2000 psi, FNPT Threaded w/ ISO 5211 pad and Double "D" Stem
Specifications
| Handle | [700001] Standard or [700001LL] Locking Handle |
| Valve Size | 1/8" or 1/4" or 3/8" or 1/2" or 3/4" or 1" or 1-1/4" or 1-1/2" or 2" or 2-1/2" or 3" or 4" |
