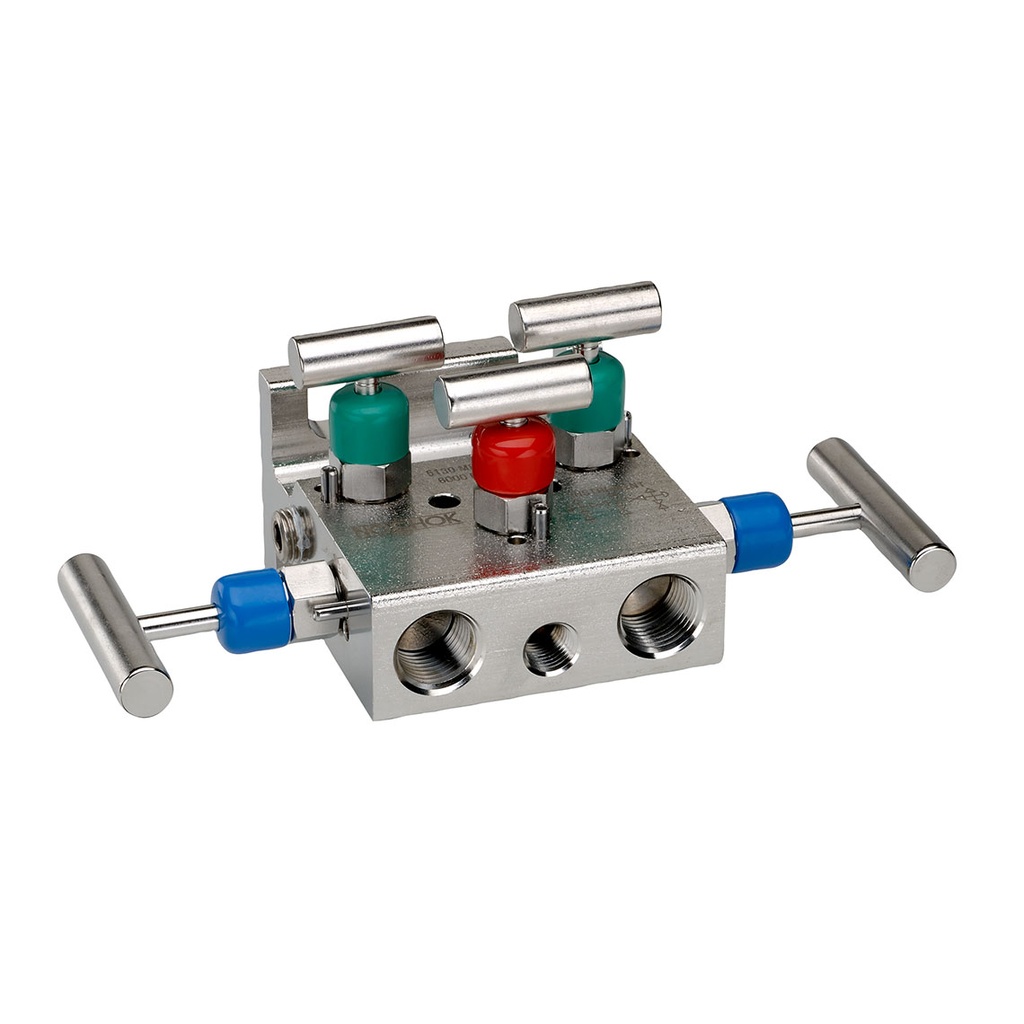

5130 Series 5-Valve Natural Gas Manifold Valve, Soft Seat, Flange x Flange, Steel, 0.187" Orifice
Manufacturer: Noshok Inc
Mfg Product Code: 5130-MMC
Weight: 6.0 lb(s)
Usually Ships Within 1 - 2 Weeks
Soft Seat, Flange x Flange, Steel, 0.187" Orifice 5 Manifold Valve
- Designed for use with differential pressure transmitters incorporating two isolation valves, two equalizing valves and a vent valve required in natural gas applications
- Flare Pattern valve configuration provides maximum clearance for fingers during operation
- Soft tip valves feature a patented Acetal non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857)
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
5130 Series 5-Valve Natural Gas Manifold Valve, Soft Seat, Flange x Flange, Steel, 0.187" Orifice
Soft Seat, Flange x Flange, Steel, 0.187" Orifice 5 Manifold Valve
Orifice Size:0.187 in
Process Connection Type:NPT-Flange/NPT-Flange
Valve Type:Flange-Flange
Valve Material:Steel
Pressure Rating:6,000 psi @ 200 °F
Flow Coefficient:Cv 0.76
Body Material:Steel
Process Type:Natural Gas Flow
Seat Type:Soft Seat/Tip
Specifications
Orifice Size | 0.187 in |
Process Connection Type | NPT-Flange/NPT-Flange |
Valve Type | Flange-Flange |
Valve Material | Steel |
Pressure Rating | 6,000 psi @ 200 °F |
Flow Coefficient | Cv 0.76 |
Body Material | Steel |
Process Type | Natural Gas Flow |
Seat Type | Soft Seat/Tip |
