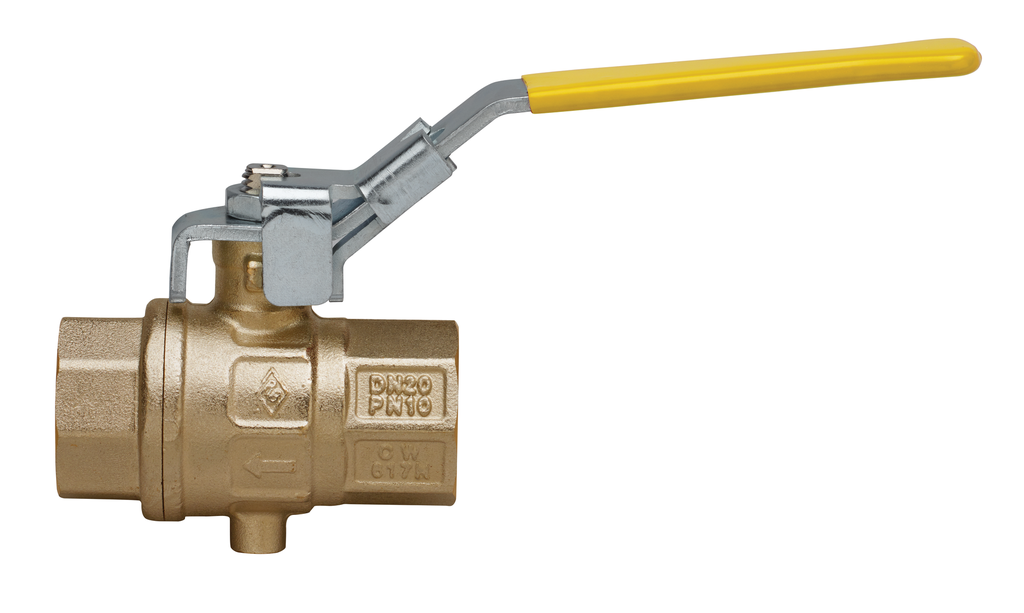

511L Full-Sfer Series Safety Exhaust Brass Ball Valve, full port with bleed hole, FNPT Threaded, w/ Latch Lock Handle
Manufacturer: Bonomi North America Inc
Mfg Product Code:
Weight: 5.0 lb(s)
511L Full-Sfer Series Exhaust brass ball valve, full port with bleed hole, FNPT threaded, with latch lock handle.
Pressure rating 200 psi.
Temperature range -4°F to +350°F.
ANSI B1.20.1 connections.
Blow-out proof stem, chrome plated brass ball.
RPTFE seats, seals and thrust washer.
Adjustable stem packing.
100% electronically tested in the open position 80 psi.
Valve to be used in fully open or fully closed position.
With reference to OSHA requirement.
Model Details
511L: LOCK HANDLE - size 1/4” to 2”
The Buna O-ring is fitted to the stem of the valve as the best possible protection against potential gas leakage under extreme duty, or low pressure applications. A secondary PTFE stem seal will also assure that the valve is suitable for use up to 366°F.
511L Full-Sfer Series Safety Exhaust Brass Ball Valve, full port with bleed hole, FNPT Threaded, w/ Latch Lock Handle
Specifications
| Valve Size | 1/4" or 3/8" or 1/2" or 3/4" or 1" or 1-1/4" or 1-1/2" or 2" |
